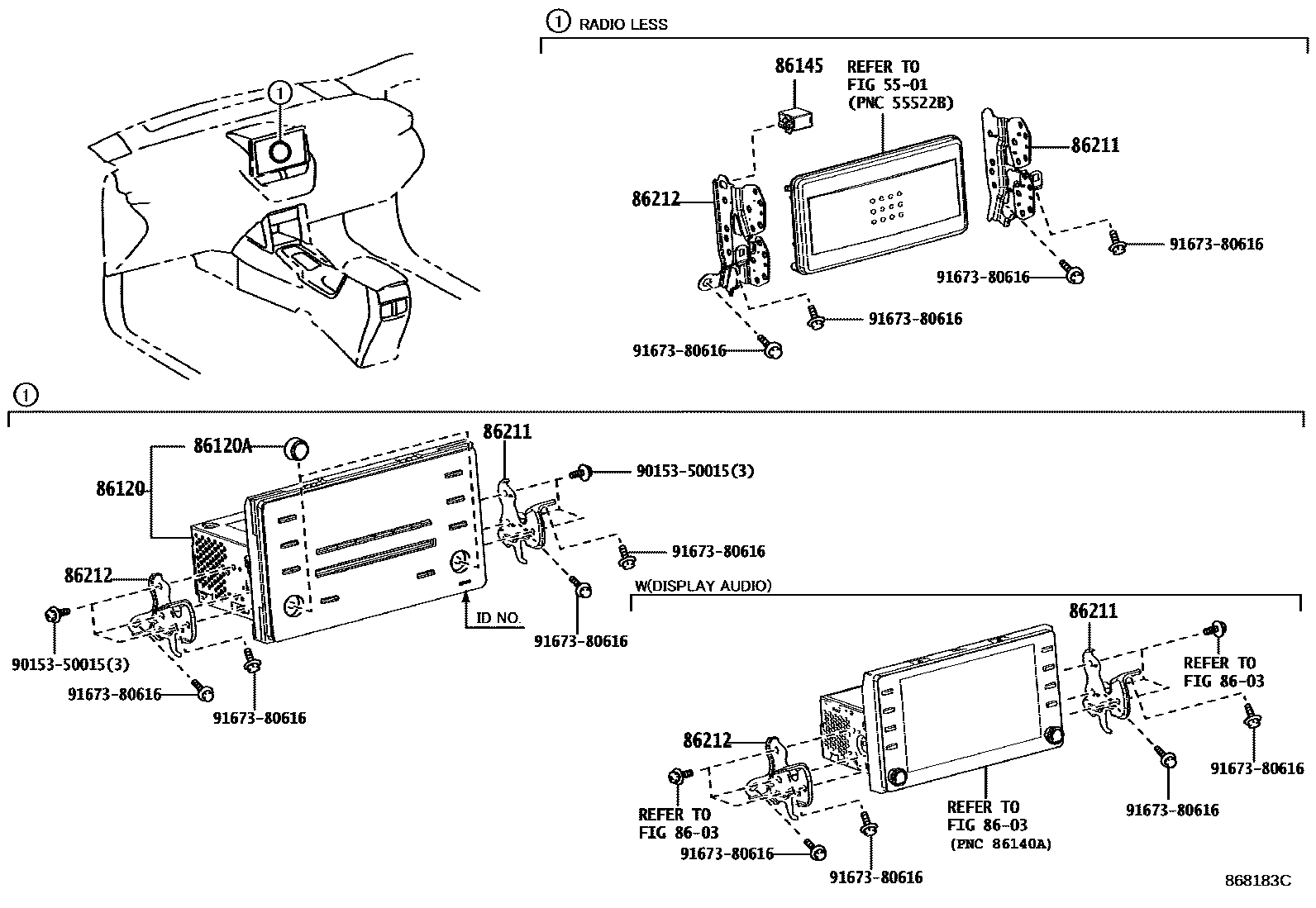

Toyota COROLLA CROSS — RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER 0002 1CONDENSER

5501

8603

86120RECEIVER ASSY, RADIO

main86120-0A050iZSG10..LHD..THP..N;ZSG10,ZVG10..RHD..(J,N)..(GEN,SA)202007-202302

PANASONIC,ID=510442,AUDIO-RADIO LESS(FOR 8INCH) & 6SPEAKER

sub86120-0A051

main86120-0A050iZSG10..RHD..THP..N202007-202302

PANASONIC,ID=510442

sub86120-0A051

main86120-0A050iZSG10..RHD..THP..N202007-202302

PANASONIC,ID=510442, CARIBBEAN NATIONS1 SPEC&AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER

sub86120-0A051

main86120-0A050iZSG10..RHD..THP..N202007-202302

PANASONIC,ID=510442, CARIBBEAN NATIONS1 SPEC&AUDIO-RADIO LESS(FOR 8INCH) & 6SPEAKER

sub86120-0A051

main86120-0A050iZSG10..RHD..THP..N202007-202302

PANASONIC,ID=510442, CARIBBEAN NATIONS2 SPEC&AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER

sub86120-0A051

main86120-0A050iZSG10..RHD..THP..N202007-202302

PANASONIC,ID=510442, CARIBBEAN NATIONS2 SPEC&AUDIO-RADIO LESS(FOR 8INCH) & 6SPEAKER

sub86120-0A051

main86120-0A050iZSG10..RHD..THP..N202007-202302

PANASONIC,ID=510442,AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER

sub86120-0A051

main86120-0A051iZSG10..RHD..SAP..(J,N)..GEN202303-202411

PANASONIC,AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER

main86120-0A051iZSG10..RHD..SAP..(J,N)202303-202411

PANASONIC

main86120-0A100iZSG10..LHD..SAP..(J,N)202010-202411

PANASONIC,ID=510447

main86120-0A100iZSG10..LHD..SAP..(J,N)202301-202411

PANASONIC,ID=510447,AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER

main86120-0A100iZSG10..J..TAIW202010-202410

PANASONIC,ID=510447,AUDIO-CD & *BT & 6SPEAKER

86120AKNOB, RADIO RECEIVER SWITCH

main90011-25319iZSG10..RHD..THP..N202007-202303

AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER

main90011-25319iZSG10..RHD..THP..N202007-202303

AUDIO-RADIO LESS(FOR 8INCH) & 6SPEAKER

main90011-25319iZSG10..RHD..THP..N202007-202303

CARIBBEAN NATIONS1 SPEC&AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER

main90011-25319iZSG10..RHD..THP..N202007-202303

CARIBBEAN NATIONS1 SPEC&AUDIO-RADIO LESS(FOR 8INCH) & 6SPEAKER

main90011-25319iZSG10..RHD..THP..N202007-202303

CARIBBEAN NATIONS2 SPEC&AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER

main90011-25319iZSG10..RHD..THP..N202007-202303

CARIBBEAN NATIONS2 SPEC&AUDIO-RADIO LESS(FOR 8INCH) & 6SPEAKER

86145CONNECTOR, ANTENNA MALE

main86145-52010iZVG10..E..PH;ZSG10..N..(PH,VN)¥170202007-202403

AUDIO-RADIO LESS(FOR 8INCH) & 6SPEAKER

main86145-52010iZSG10,ZVG10..(E,G,N)..TAIW¥170202007-202412

main86145-52010iMXGA10..(G,N)..GEN¥170202007-202411

AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER

86211BRACKET, RADIO, NO.1

main86211-02570iZSG10..N..VN;ZVG10..E..PH;ZVG10..THP..GEN;ZSG10..THP..(GEN,PH)202007-202512

main86211-02580iZVG10..MA;ZSG10..(E,N)..(MA,VN)202007-202212

main86211-02580iZSG10..SAP..GEN202007-202411

AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER

main86211-02580iZSG10..E..VN;ZVG10..IDN,VN202007-202402

AUDIO-RADIO LESS(FOR 8INCH) & 6SPEAKER

main86211-02590iZSG10,ZVG10..GCC202010-202410

AUDIO-*DA(8INCH) & 6SPEAKER

main86211-02590iZSG10,ZVG10..GCC202010-202410

AUDIO-CD & *BT & 6SPEAKER

main86211-02600iZSG10,ZVG10..(E,G,L,M,N)..TAIW202010-202410

main86211-02610iZVG10..BZP..GEN;MXGA10..(E,N)..GEN202201-202412

AUDIO-RADIO LESS(FOR 8INCH) & 6SPEAKER

main86211-02610iMXGA10..(G,N)..GEN202103-202403

AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER

main86211-02670iZVG10..BZP;MXGA10..AGT,BZ;MXGA10..E..GEN202201-202412

AUDIO-ACCESSORY DA(9INCH) & 6SPEAKER

main86211-02670iMXGA10..G..GEN202404-202412

AUDIO-WITHOUT(DA) & 6SPEAKER

main86211-02670iMXGA10..G..GEN202103-202412

AUDIO-*DA(8INCH) & 6SPEAKER

main86211-02670iMXGA10..G..GEN202501

AUDIO-ACCESSORY DA(10INCH) & 6SPEAKER

main86211-0A030iZSG10..SAP..N202110-202411

main86211-0A080iZSG10..LHD..E..GEN202401

MYANMAR SPEC

main86211-0A110iZSG10,ZVG10..SAP..(E,G)202411

main86211-YY090iZSG10,ZVG10..TAIW202305-202410

86212BRACKET, RADIO, NO.2

main86212-02570iZSG10..RHD..THP..N;ZVG10..(E,G)..(IDN,PH,TH,VN);ZSG10,ZVG10..LHD..THP..E..GEN202007-202512

main86212-02580iZSG10..N..VN;ZVG10..E..PH;ZVG10..THP..GEN;ZSG10..THP..(GEN,PH)202007-202402

AUDIO-RADIO LESS(FOR 8INCH) & 6SPEAKER

main86212-02580iZSG10,ZVG10..MA202007-202212

main86212-02580iZSG10..E..VN;ZVG10..IDN,VN202007-202411

AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER

main86212-02590iZSG10,ZVG10..GCC202010-202410

AUDIO-*DA(8INCH) & 6SPEAKER

main86212-02590iZSG10,ZVG10..GCC202010-202410

AUDIO-CD & *BT & 6SPEAKER

main86212-02600iZSG10,ZVG10..(E,G,L,M,N)..TAIW202010-202410

main86212-02610iMXGA10..E..GEN;ZVG10..BZP..GEN202201-202412

AUDIO-RADIO LESS(FOR 8INCH) & 6SPEAKER

main86212-02610iMXGA10..(G,N)..GEN202103-202403

AUDIO-RADIO LESS(FOR 7INCH) & 6SPEAKER

main86212-02670iMXGA10..(G,N)..GEN202103-202412

AUDIO-*DA(8INCH) & 6SPEAKER

main86212-02670iMXGA10..(G,N)..GEN202201-202412

AUDIO-ACCESSORY DA(9INCH) & 6SPEAKER

main86212-02670iZVG10..BZP;MXGA10..AGT,BZ;MXGA10..(E,N)..GEN202501

AUDIO-ACCESSORY DA(10INCH) & 6SPEAKER

main86212-02670iMXGA10..G..GEN202404-202412

AUDIO-WITHOUT(DA) & 6SPEAKER

main86212-0A030iZSG10..SAP..N202110-202411

main86212-0A080iZSG10,ZVG10..RHD..THP..(E,G)..GEN202401

MYANMAR SPEC

main86212-0A110iZSG10,ZVG10..SAP..(E,G)202411

main86212-YY090iZSG10,ZVG10..(E,G,L,M,N)..TAIW202305-202410

9015350015

main90153-50015¥60

9167380616

main91673-80616¥60

9 parts on this diagram · 2 diagrams in section
