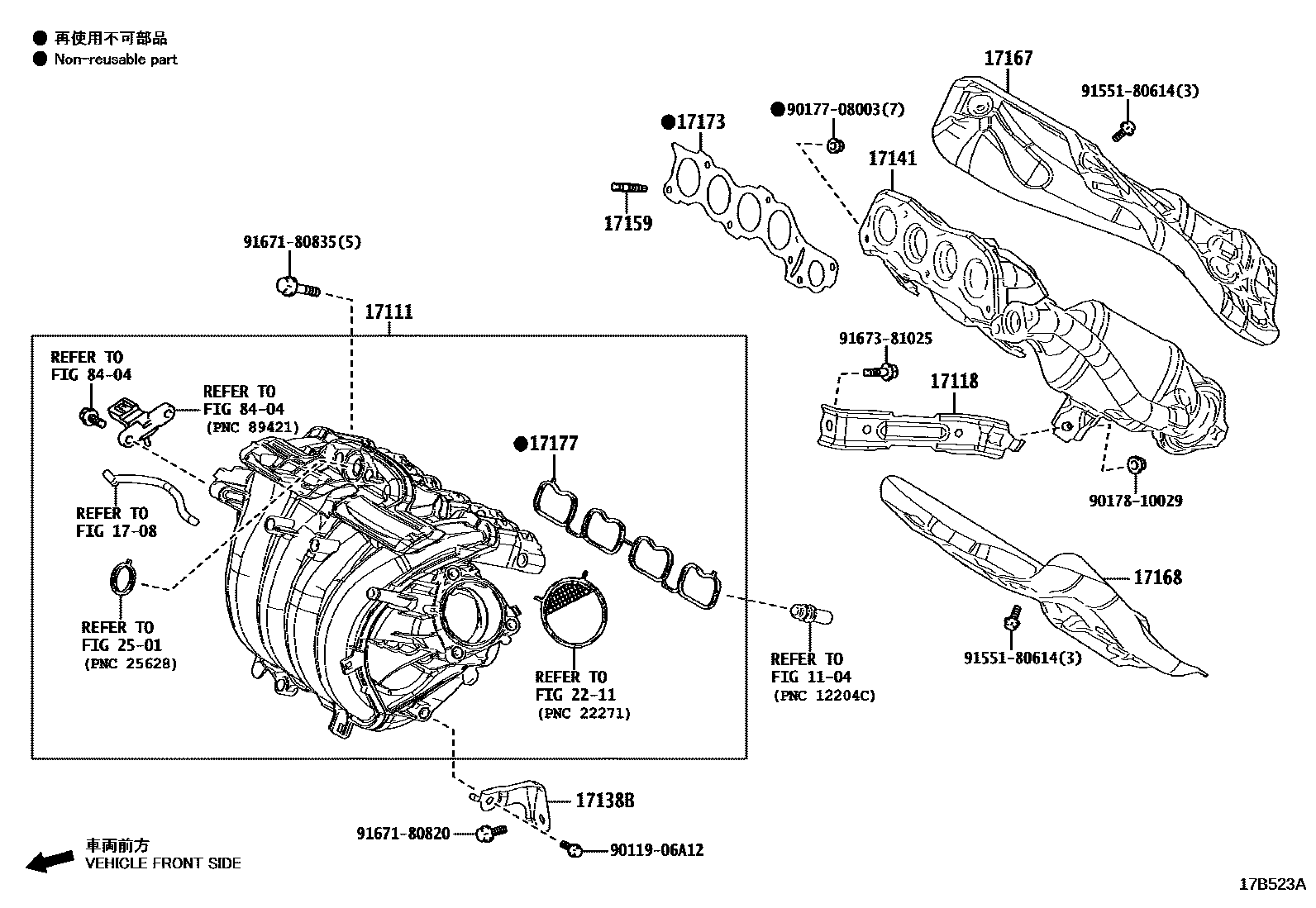

Toyota COROLLA CROSS — MANIFOLD

0001 1 0002 1 0003 1 0004 1PNC17141=TYPEA 0005 1 0006 1PNC17141=TYPEB 0007 1 0008 1

1104

1708

17111MANIFOLD, INTAKE

main17120-0T100i2ZRFE..ZSG10..MAP..G202007-202512

(L)

main17120-0T180i2ZRFXE..ZVG10..SA202110-202411

(L)

main17120-0T200i2ZRFXE..ZVG10..THP..(GEN,IDN,PH,TH,VN)202007-202410

(L)

main17120-37070i2ZRFE..ZSG10..TWP..G;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

(J)

main17120-37110i2ZRFXE..ZVG10..BZP..(AGT,GEN)¥18,500202103-202412

main17120-37110i2ZRFXE..ZVG10..MAP,TWP¥18,500202007-202411

(J)

main17120-37120i2ZRFXE..ZVG10..BZP..E..GEN202103-202412

PARAGUAY SPEC

sub17120-37190

main17120-37190i2ZRFXE..ZVG10..BZP..GEN202501

PARAGUAY SPEC

main17120-F2020iM20AFKS..MXGA10..AGT,GEN202103-202412

main17120-F2030iM20AFKS..MXGA10..BZ202103-202412

PARAGUAY SPEC

17118STAY, MANIFOLD

main17118-0T020i2ZRFE..ZSG10..SAP202110-202411

(L)

main17118-0T040i2ZRFE..ZSG10..TWP..G;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)202007-202512

(L)

main17118-0T080i2ZRFXE..ZVG10..SA202110-202411

main17118-0T100i2ZRFXE..ZVG10..MA202007-202410

(L)

main17118-24010iM20AFKS..MXGA10¥2,980202103-202412

main17118-37010i2ZRFE..ZSG10..SAP;2ZRFE..ZSG10..MAP..G¥1,490202007-202512

(J)

main17118-37090i2ZRFXE..ZVG10..BZP¥1,780202103-202412

main17118-37090i2ZRFXE..ZVG10..TWP..N;2ZRFXE..ZVG10..(MAP,THP,TWP)..(E,G,L,M,R)¥1,780202007-202410

(J)

17138BSTAY, INTAKE MANIFOLD

main17138-0T040i2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)202007-202512

(L)

main17138-24010iM20AFKS..MXGA10¥460202103-202412

main17138-37011i2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)¥1,080202007-202512

(J)

main17138-37011i2ZRFE..ZSG10..SAP¥1,080202110-202411

17141MANIFOLD, EXHAUST

main17141-0T130i2ZRFE..ZSG10..MAP;2ZRFBE,2ZRFE..ZSG10..(THP,TWP)..(GCC,GEN,PH,TAIW,TH,VN)202007-202301

(L)

sub17141-0T131

main17141-0T131i2ZRFBE,2ZRFE..ZSG10..THP202302-202512

(L)

main17141-37190i2ZRFXE..ZVG10..BZP..GEN202103-202112

TYPE B

sub17141-37191

sub17167-37140¥3,300

main17141-37190i2ZRFXE..ZVG10..BZ202103-202112

PARAGUAY SPEC,TYPE B

sub17141-37191

sub17167-37140¥3,300

main17141-37191i2ZRFXE..ZVG10..BZ202201-202412

PARAGUAY SPEC,TYPE B

main17141-37191i2ZRFXE..ZVG10..BZ202201-202412

TYPE B

main17141-37210i2ZRFXE..ZVG10..BZP..(AGT,GEN)202103-202203

*114=TOYOTA/AT37180Y,TYPE A

sub17141-37211

sub17167-37140¥3,300

main17141-37210i2ZRFXE..ZVG10..THP,TWP202007-202110

*114=TOYOTA/AT37180Y

sub17141-37211

sub17167-37140¥3,300

main17141-37230i2ZRFE..ZSG10..SAP¥19,500202302-202411

main17141-37230i2ZRFE..ZSG10..TWP..G;2ZRFE..ZSG10..RHD..THP;2ZRFE..ZSG10..(E,M,N)..(MA,TAIW,VN);2ZRFE..ZSG10..LHD..(THP,TWP)..(E,J)..(GCC,GEN)¥19,500202401-202512

(J)

main17141-37250i2ZRFE..ZSG10..MAP;2ZRFBE,2ZRFE..ZSG10..(THP,TWP)..(GCC,GEN,PH,TAIW,TH,VN)202007-202302

(J)

sub17141-37230¥19,500

main17141-37250i2ZRFE..ZSG10..SAP202110-202301

sub17141-37230¥19,500

main17141-37320i2ZRFXE..ZVG10..SA202110-202202

sub17141-37321

sub17167-37140¥3,300

main17141-37320i2ZRFXE..ZVG10..MA202110-202201

(L)

sub17141-37321

sub17167-37140¥3,300

main17141-37321i2ZRFXE..ZVG10..SA202201-202411

main17141-37321i2ZRFXE..ZVG10..BZP..(AGT,GEN)202203-202403

TYPE B

main17141-37330i2ZRFXE..ZVG10..BZP..GEN202501

PARAGUAY SPEC

main17141-37340i2ZRFXE..ZVG10..TWP..N;2ZRFXE..ZVG10..(MAP,SAP,THP,TWP)..(E,G,L,M,R)202401-202412

*114=*389

main17141-F2020iM20AFKS..MXGA10202103-202412

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08026i2ZRFE..ZSG10..TWP..G;2ZRFXE..ZVG10..MAP,TWP;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)¥210202007-202512

(J),NO.1

main90126-08026i2ZRFE,2ZRFXE..ZSG10,ZVG10..SAP¥210202103-202412

NO.1

main90126-08052i2ZRFE..ZSG10..IDN¥80202007-202512

(J),NO.2

main90126-08052i2ZRFXE..ZVG10..BZP¥80202103-202412

NO.2

main90126-T0003i2ZRFE..ZSG10..IDN202007-202512

(L),NO.1

main90126-T0016i2ZRFBE..ZSG10202007-202512

(L),NO.2

17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1

main17167-0T040i2ZRFE..ZSG10..IDN202007-202411

(L)

main17167-0T120i2ZRFE..ZSG10..SAP202110-202411

(L)

main17167-0T130i2ZRFXE..ZVG10..THP,TWP202007-202110

(L)

main17167-0T130i2ZRFXE..ZVG10..MA202110-202201

(L),TYPE A:REF ILL.

main17167-0T160i2ZRFXE..ZVG10..THP202201-202410

(L),TYPE B:REF ILL.

main17167-24030iM20AFKS..MXGA10¥2,490202103-202412

main17167-37040i2ZRFXE..ZVG10..MAP¥4,110202110-202201

(J),TYPE A:REF ILL.

main17167-37040i2ZRFXE..ZVG10..THP,TWP¥4,110202007-202110

(J)

main17167-37040i2ZRFXE..ZVG10..BZP¥4,110202103-202105

TYPE A:REFER ILLUST.

main17167-37110i2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)¥4,420202007-202411

(J)

main17167-37140i2ZRFXE..ZVG10..SA¥3,300202110-202411

main17167-37140i2ZRFXE..ZVG10..MAP,TWP¥3,300202201-202410

(J),TYPE B:REF ILL.

main17167-37140i2ZRFXE..ZVG10..BZ¥3,300202106-202412

TYPE B:REFER ILLUST.

main17167-37140i2ZRFXE..ZVG10..BZ¥3,300202404-202412

PARAGUAY SPEC,TYPE B:REFER ILLUST.

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-0T140i2ZRFE..ZSG10..MAP..G202007-202512

(L)

main17168-0T150i2ZRFXE..ZVG10..TWP..N;2ZRFXE..ZVG10..(MAP,THP,TWP)..(E,G,L,M,R)202007-202410

(L)

main17168-24030iM20AFKS..MXGA10¥1,940202103-202412

main17168-37120i2ZRFXE..ZVG10..TWP..N;2ZRFXE..ZVG10..(MAP,THP,TWP)..(E,G,L,M,R)¥1,390202110-202410

(J)

main17168-37120i2ZRFXE..ZVG10..BZP¥1,390202103-202412

main17168-37130i2ZRFE..ZSG10..SAP¥4,150202110-202411

main17168-37130i2ZRFE..ZSG10..TWP..G;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)¥4,150202007-202512

(J)

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-0T020i2ZRFE,2ZRFXE..ZSG10,ZVG10..SAP202110-202411

(L)

main17173-0T041i2ZRFE..ZSG10..MAP..G202007-202512

(L)

main17173-24020iM20AFKS..MXGA10..G..GEN202103-202112

PARAGUAY SPEC

main17173-24020iM20AFKS..MXGA10..BZ202201-202412

PARAGUAY SPEC&ENGINE-M20A-FKB

main17173-37010i2ZRFXE..ZVG10..BZP¥980202103-202412

main17173-37010i2ZRFE..ZSG10..IDN¥980202007-202512

(J)

main17173-F2020iM20AFKS..MXGA10..AGT,GEN202103-202412

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17171-24020iM20AFKS..MXGA10..BZ¥650202103-202412

main17171-24030iM20AFKS..MXGA10..GEN202103-202209

PARAGUAY SPEC

sub17171-24020¥650

main17177-0T040i2ZRFBE..ZSG10202007-202512

(L)

main17177-37030i2ZRFE..ZSG10..TWP..G;2ZRFXE..ZVG10..MAP,TWP;2ZRFE..ZSG10..(MAP,TWP)..(E,J,M,N)¥820202007-202512

(J)

main17177-37030i2ZRFXE..ZVG10..BZP..(AGT,GEN)¥820202103-202412

main17177-37030i2ZRFE..ZSG10..SAP¥820202110-202411

(L)

main17177-37040i2ZRFXE..ZVG10..BZP..E..GEN202103-202412

PARAGUAY SPEC

2211

2501

8404

9011906A12

main90119-06A12¥60

9017708003

main90177-08003¥80

9017810029

main90178-10029¥100

9155180614

main91551-80614¥60

9167180820

main91671-80820¥80

9167180835

main91671-80835¥100

9167381025

main91673-81025¥120

21 parts on this diagram · 8 diagrams in section
