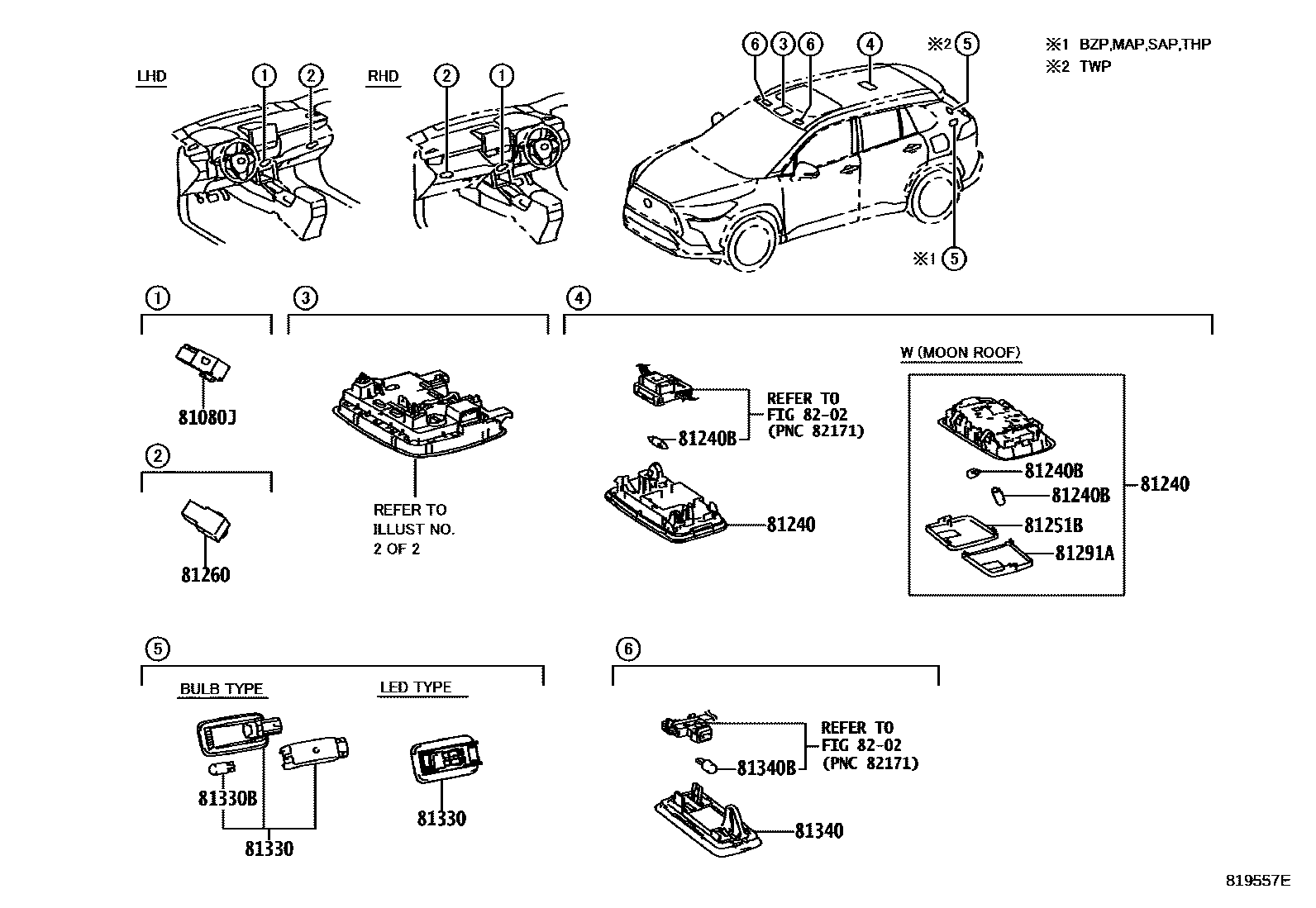

Toyota COROLLA CROSS — INTERIOR LAMP

0001 1 0002 1BULB TYPE 0003 1LED TYPE

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33280iMXGA10..E..AGT¥920202501-202602

UP GRADE PACKAGE

main81080-33280iMXGA10..E..AGT¥920202501-202602

GR SPORT

main81080-33280iMXGA10..E..AGT¥920202501-202602

SEAT COVER MATERIAL-LEATHER

main81080-33280iMXGA10..E..AGT¥920202501-202602

SEAT COVER MATERIAL-LEATHER & SUEDE(FOR GR SPORT)

main81080-33280iMXGA10..E..GEN¥920202501-202602

COLOMBIA SPEC

main81080-33280iZSG10,ZVG10..E..MA¥920202007-202111

main81080-33280iZVG10..BZP..E¥920202007-202112

main81080-33280iZSG10..IDN¥920202007-202212

main81080-33280iZVG10..E..PH;ZSG10..THP..E..(GEN,VN);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)¥920202007-202402

main81080-33280iZSG10,ZVG10..(MAP,TWP)..E¥920202007-202410

main81080-33280iZSG10,ZVG10..SAP..E¥920202007-202411

main81080-33280iZVG10..BZP..E¥920202201-202403

UP GRADE PACKAGE

main81080-33280iZVG10..BZP..E¥920202201-202403

ILLUMINATED ENTRY SYSTEM-WITH(ROOM LAMP, CENTER TRAY, *CUH, DOOR)

main81080-33280iMXGA10..E..BZ;ZVG10..E..(AGT,PH);ZVG10..BZP..E..GEN;ZSG10..(MAP,THP)..E;ZVG10..THP..(E,G)..GEN;ZVG10..(E,G,R)..(BZ,IDN,MA,TH,VN)¥920202401

main81080-42040iZSG10,ZVG10..(SAP,TWP)..E¥920202410

81240LAMP ASSY, ROOM, NO.1

main81240-12100-A9iZVG10..E..AGT;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN)202501

FROMAGE,TRIM0#

main81240-12100-A9iZVG10..E..AGT;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN)202404-202412

FROMAGE,TRIM01

main81240-12100-C0iZVG10..E..AGT;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN)202103-202112

BLACK,TRIM2#

main81240-12100-C0iZVG10..E..AGT;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN)202103-202112

BLACK,TRIM0#,2#

main81240-12100-C0iMXGA10..G,N;ZVG10..G..AGT202404-202412

BLACK,TRIM2#

main81240-12100-C0iZVG10..E..AGT;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN)202201-202403

BLACK,TRIM0#,2#

main81240-12100-C0iZVG10..E..AGT;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN)202201-202403

BLACK,TRIM2#

main81240-12100-C0iZVG10..E..AGT;MXGA10..E..(BZ,GEN);MXGA10,ZVG10..BZP..(G,N)202501

BLACK,TRIM2#

main81240-12100-C0iZVG10..E..AGT;MXGA10..E..(BZ,GEN);ZVG10..BZP..G..(BZ,GEN)202404-202412

BLACK,TRIM01,2#

main81240-42020-C0iZSG10..TWP..(J,N);ZVG10..(G,N)..GCC;ZSG10..LHD..G..GEN;ZSG10..G..(SA,TAIW);ZSG10..(MAP,SAP)..E;ZVG10..(E,G,N)..(MA,SA,TAIW)202410

MOON ROOF-WITHOUT,BLACK,TRIM2#,3#

main81240-42020-C0iZSG10,ZVG10..MA202007-202111

BLACK,TRIM2#,3#

main81240-42020-C0iZVG10..E..PH;ZVG10..RHD..THP..(G,N);ZSG10..THP..(G,N)..(GEN,PH,TH,VN)202007-202402

BLACK,TRIM2#,3#

main81240-42020-C0iZVG10..E..PH;ZVG10..RHD..THP..(G,N);ZSG10..THP..(G,N)..(GEN,PH,TH,VN)202007-202402

MOON ROOF-WITHOUT,BLACK,TRIM2#,3#

main81240-42020-C0iZSG10..G..TAIW;ZVG10..(G,N)..GCC;ZSG10..(MAP,TWP)..(E,J,N);ZVG10..(MAP,TWP)..(E,G,N)..(MA,TAIW)202007-202410

BLACK,TRIM2#,3#

main81240-42020-C0iZSG10,ZVG10..L,M202108-202410

BLACK,TRIM2#

main81240-42020-C0iZSG10..MAP..G;ZSG10,ZVG10..SAP..(E,G)202007-202411

BLACK,TRIM2#,3#

main81240-42020-C0iZSG10..SAP..(J,N)202108-202411

BLACK,TRIM2#

main81240-42020-C0iZSG10..N..SA;ZSG10,ZVG10..L,M,R;ZSG10..LHD..N..GEN202410

BLACK,TRIM2#

main81240-42020-C0iZSG10..N..SA;ZSG10,ZVG10..L,M,R;ZSG10..LHD..N..GEN202410

BLACK,TRIM2#,3#

main81240-48040-C1iZSG10..VN;ZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202401

BLACK,TRIM2#

main81240-48040-C1iZSG10..VN;ZVG10..E..PH;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..(E,G);ZVG10..THP..(E,G)..(GEN,IDN,TH,VN)202401

BLACK,TRIM2#,3#

main81250-05030-A2iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)202501

MOON ROOF-WITH,FROMAGE,TRIM0#

main81250-05030-A2iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)202501

FROMAGE,TRIM0#

main81250-05030-A2iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)202404-202412

MOON ROOF-WITH,FROMAGE,TRIM01

main81250-05030-A2iMXGA10..E..(BZ,GEN)202404-202412

FROMAGE,TRIM01

main81250-05030-C1iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)202201-202403

MOON ROOF-WITH,BLACK,TRIM0#,2#

main81250-05030-C1iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)202201-202403

MOON ROOF-WITH,BLACK,TRIM2#

main81250-05030-C1iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)202201-202403

BLACK,TRIM0#,2#

main81250-05030-C1iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)202103-202112

MOON ROOF-WITH,BLACK,TRIM0#,2#

main81250-05030-C1iZVG10..G..AGT202103-202112

BLACK,TRIM0#,2#

main81250-05030-C1iZVG10..G..AGT202103-202112

MOON ROOF-WITH,BLACK,TRIM2#

main81250-05030-C1iZSG10..IDN202007-202212

BLACK,TRIM2#,3#

main81250-05030-C1iZSG10..G..GCC;ZVG10..E..GCC202010-202410

BLACK,TRIM0#,2#,3#

main81250-05030-C1iZVG10..IDN202007-202402

MOON ROOF-WITH,BLACK,TRIM2#,3#

main81250-05030-C1iZVG10..IDN202007-202402

BLACK,TRIM2#,3#

main81250-05030-C1iZSG10..G..GCC;ZVG10..E..GCC202410

BLACK,TRIM2#,3#

main81250-05030-C1iZSG10..G..GCC;ZVG10..E..GCC202410

MOON ROOF-WITH,BLACK,TRIM2#,3#

main81250-05030-C1iMXGA10..E..(BZ,GEN)202501

MOON ROOF-WITH,BLACK,TRIM2#

main81250-05030-C1iMXGA10..E..(BZ,GEN)202501

BLACK,TRIM2#

main81250-05030-C1iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)202404-202412

BLACK,TRIM01,2#

main81250-05030-C1iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)202404-202412

MOON ROOF-WITH,BLACK,TRIM01,2#

81240BBULB, ROOM LAMP, NO.1

main90981-11062iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥340202201-202403

12V 8W

main90981-11062iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥340202501

12V 8W

main90981-11062iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥340202501

12V 8W,MOON ROOF-WITH

main90981-11062iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥340202007-202112

12V 8W

main90981-11062iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥340202007-202112

12V 8W,MOON ROOF-WITH

main90981-11062iZSG10..IDN¥340202007-202212

12V 8W

main90981-11062iZSG10,ZVG10..THP..E..(GEN,TH,VN)¥340202007-202402

12V 8W

main90981-11062iZSG10,ZVG10..THP..E..(GEN,TH,VN)¥340202007-202402

12V 8W,MOON ROOF-WITH

main90981-11062iZSG10..G..GCC;ZVG10..E..GCC¥340202007-202410

12V 8W

main90981-11062iZSG10..G..GCC;ZVG10..E..GCC¥340202007-202410

12V 8W,MOON ROOF-WITH

main90981-11062iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥340202201-202403

12V 8W,MOON ROOF-WITH

main90981-11062iZSG10..G..GCC;MXGA10..E..AGT;ZVG10..(BZP,TWP)..E..(BZ,GCC,GEN)¥340202404

12V 8W

main90981-11062iZSG10..G..GCC;MXGA10..E..AGT;ZVG10..(BZP,TWP)..E..(BZ,GCC,GEN)¥340202404

12V 8W,MOON ROOF-WITH

main90981-14011iZSG10..G..GCC¥180202007-202410

12V 8W,MOON ROOF-WITHOUT

main90981-14011iZSG10..MAP..G;ZSG10,ZVG10..SAP¥180202007-202411

12V 8W

main90981-14011iZVG10..E..AGT;MXGA10..E..(BZ,GEN);MXGA10,ZVG10..BZP..(G,N)¥180202501

12V 8W

main90981-14011iZSG10..G..TAIW;ZVG10..(G,N)..GCC;ZVG10..(MAP,TWP)..(MA,TAIW);ZSG10..(MAP,TWP)..(E,J,M,N)¥180202007-202410

12V 8W

main90981-14011iZSG10..THP..E..GEN¥180202007-202402

12V 8W,MOON ROOF-WITHOUT

main90981-14011iZSG10..THP..E..GEN¥180202007-202402

12V 8W

main90981-14011iZVG10..E..AGT;MXGA10..E..(BZ,GEN);MXGA10,ZVG10..BZP..(G,N)¥180202201-202403

12V 8W

main90981-14011iZVG10..E..AGT;MXGA10..E..(BZ,GEN);MXGA10,ZVG10..BZP..(G,N)¥180202007-202112

12V 8W

main90981-14011iZSG10,ZVG10..MA¥180202007-202111

12V 8W

main90981-14011iZSG10..J..GCC;ZSG10..(G,N)..(SA,TAIW);ZVG10..E..(AGT,MA,SA,TAIW);MXGA10,ZSG10..LHD..(BZP,SAP)..(G,N);ZVG10..(BZP,MAP,SAP,TWP)..(G,L,M,N,R);MXGA10,ZSG10..(BZP,MAP,SA¥180202404

12V 8W

81251BLENS, REAR ROOM LAMP, RH

main81251-05030iZVG10..G..GCC¥950202404

MOON ROOF-WITH

main81251-05030iZSG10..G..GCC;ZVG10..E..GCC¥950202007-202410

MOON ROOF-WITH

main81251-05030iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥950202501

MOON ROOF-WITH

main81251-05030iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥950202007-202112

MOON ROOF-WITH

main81251-05030iZSG10..IDN¥950202007-202212

main81251-05030iZSG10,ZVG10..THP..E..(GEN,TH,VN)¥950202007-202402

MOON ROOF-WITH

main81251-05030iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥950202201-202403

MOON ROOF-WITH

main81251-05030iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥950202404-202412

MOON ROOF-WITH

81260LAMP ASSY, GLOVE BOX

main81080-33290iMXGA10,ZVG10..BZ¥920202501

main81080-33290iZSG10,ZVG10..MA¥920202007-202111

main81080-33290iZSG10..TH;ZVG10..PH,TH¥920202007-202112

main81080-33290iZSG10..RHD..THP..E..GEN;ZVG10..THP..E..(GEN,VN)¥920202007-202402

main81080-33290iZSG10,ZVG10..SAP..E¥920202007-202411

main81080-33290iZSG10,ZVG10..SAP..E¥920202411

81291ALENS, REAR ROOM LAMP, LH

main81291-05030iZSG10..G..GCC;ZVG10..E..GCC¥950202007-202410

MOON ROOF-WITH

main81291-05030iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥950202201-202403

MOON ROOF-WITH

main81291-05030iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥950202404-202412

MOON ROOF-WITH

main81291-05030iZSG10..G..GCC;ZVG10..E..GCC¥950202404

MOON ROOF-WITH

main81291-05030iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥950202501

MOON ROOF-WITH

main81291-05030iMXGA10..E..AGT;ZVG10..BZP..E..(BZ,GEN)¥950202007-202112

MOON ROOF-WITH

main81291-05030iZSG10..IDN¥950202007-202212

main81291-05030iZSG10,ZVG10..THP..E..(GEN,TH,VN)¥950202007-202402

MOON ROOF-WITH

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iZSG10..MAP..G;ZSG10,ZVG10..SAP¥1,250202007-202411

main81250-30210iMXGA10,ZVG10..BZP¥1,250202501

main81250-30210iZSG10,ZVG10..MA¥1,250202007-202111

main81250-30210iMXGA10,ZVG10..BZP¥1,250202007-202112

main81250-30210iZSG10..IDN¥1,250202007-202212

main81250-30210iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥1,250202007-202402

main81250-30210iZSG10,ZVG10..MAP..E¥1,250202007-202410

main81250-30210iMXGA10,ZVG10..BZP¥1,250202201-202403

main81250-30210iMXGA10,ZVG10..BZP¥1,250202404-202412

main81250-30210iZVG10..MA,SA;ZSG10..(G,N)..SA;ZSG10..(MAP,SAP)..E;ZSG10..LHD..(G,N)..GEN¥1,250202404

main81330-0D090iZSG10,ZVG10..TWP202010-202410

main81330-0D090iZSG10,ZVG10..TWP202410

main81330-11010iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN¥1,090202401

main81330-11010iZSG10..TH¥1,090202401-202512

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11069iZSG10,ZVG10..TWP¥110202010-202410

12V 5W

main90981-11069iZSG10,ZVG10..TWP¥110202410

12V 5W

main99132-12050iZSG10,ZVG10..MAP..E¥110202007-202410

12V 5W

main99132-12050iZSG10..MAP..G;ZSG10,ZVG10..SAP¥110202007-202411

12V 5W

main99132-12050iMXGA10,ZVG10..BZP¥110202201-202403

12V 5W

main99132-12050iMXGA10,ZVG10..BZP¥110202404-202412

12V 5W

main99132-12050iZVG10..MA,SA;ZSG10..(G,N)..SA;ZSG10..(MAP,SAP)..E;ZSG10..LHD..(G,N)..GEN¥110202404

12V 5W

main99132-12050iMXGA10,ZVG10..BZP¥110202501

12V 5W

main99132-12050iZSG10,ZVG10..MA¥110202007-202111

12V 5W

main99132-12050iMXGA10,ZVG10..BZP¥110202007-202112

12V 5W

main99132-12050iZSG10..IDN¥110202007-202212

12V 5W

main99132-12050iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥110202007-202402

12V 5W

81340LAMP ASSY, VANITY

main81340-0K030iZVG10..E..PH;ZSG10..E..GEN;ZSG10..LHD..SAP..G;ZVG10..THP..(E,G)..GEN;ZVG10..IDN,MA,SA,TH,VN;ZSG10..(E,G)..(IDN,MA,SA,TH,VN)202007-202411

main81340-0K030iZSG10,ZVG10..(MAP,SAP)..(E,G,R)202411

main81340-30110iZVG10..BZP..G..GEN¥1,670202501

PARAGUAY SPEC

main81340-30110iMXGA10..E;ZVG10..BZP;ZSG10..G..GCC;ZVG10..E..GCC¥1,670202010-202410

MOON ROOF-WITHOUT

main81340-30110iMXGA10..E;ZVG10..BZP¥1,670202201-202403

main81340-30110iMXGA10..E;ZVG10..BZP¥1,670202404-202412

main81340-30110iZSG10..G..GCC;ZVG10..E..GCC¥1,670202404

main81340-30110iZSG10..N..GCC;ZVG10..G..GCC¥1,670202010-202410

MOON ROOF-WITH

main81340-33170iZSG10..THP..E;ZVG10..THP..(E,G)¥990202401

main81340-33170iZSG10..TH¥990202401-202512

81340BBULB (FOR VANITY LAMP)

main90981-11062iMXGA10..E;ZVG10..BZP;ZSG10..G..GCC;ZVG10..E..GCC¥340202010-202410

12V 8W,MOON ROOF-WITH

main90981-11062iMXGA10..E;ZVG10..BZP;ZSG10..G..GCC;ZVG10..E..GCC¥340202010-202410

12V 8W,MOON ROOF-WITHOUT

main90981-11062iZSG10..G..GCC;ZVG10..E..GCC¥340202404

12V 8W

main90981-11062iZSG10..N..GCC;ZVG10..G..GCC¥340202010-202410

12V 8W

main90981-11062iZSG10,ZVG10..(MAP,SAP)..(E,G,R)¥340202411

12V 8W

main90981-11062iZVG10..E..PH;ZSG10..E..GEN;ZSG10..LHD..SAP..G;ZVG10..THP..(E,G)..GEN;ZVG10..IDN,MA,SA,TH,VN;ZSG10..(E,G)..(IDN,MA,SA,TH,VN)¥340202007-202411

12V 8W

main90981-11062iMXGA10..E;ZVG10..BZP¥340202201-202403

12V 8W

main90981-11062iMXGA10..E;ZVG10..BZP¥340202404-202412

12V 8W

main90981-11062iMXGA10..E;ZVG10..BZP¥340202501

12V 8W

main90981-11062iMXGA10..E;ZVG10..BZP¥340202501

12V 8W,PARAGUAY SPEC

8202

11 parts on this diagram · 3 diagrams in section
