Toyota COROLLA CROSS — HOOD LOCK & HINGE

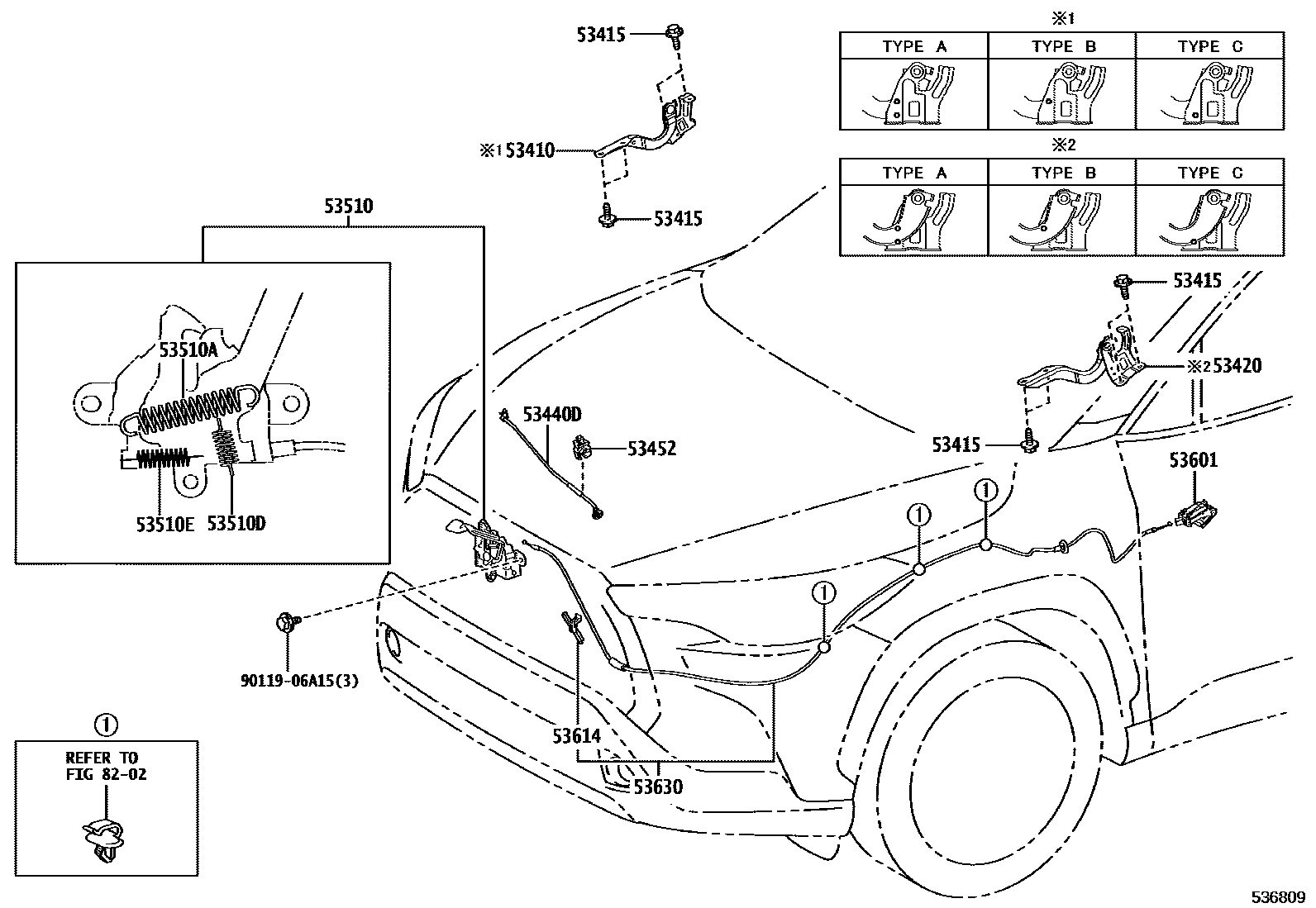

Parts diagram
53410HINGE ASSY, HOOD, RH
main53410-0A030i202007-202512
TYPE A:REFER ILLUST.
main53410-0A040i202007-202512
TYPE B:REFER ILLUST.
main53410-0A050i202007-202512
TYPE C:REFER ILLUST.
main53410-0A060i202010-202410
main53410-0A090i202103-202412
TYPE A:REFER ILLUST.
main53410-0A100i202103-202412
TYPE B:REFER ILLUST.
main53410-0A110i202103-202412
TYPE C:REFER ILLUST.
main53410-0A210i202110-202411
TYPE A:REFER ILLUST.
main53410-0A220i202110-202411
TYPE C:REFER ILLUST.
main53410-0A230i202110-202411
TYPE B:REFER ILLUST.
53415BOLT, HOOD HINGE
main90105-T0120i202007-202512
(L)
main90105-T0120i202110-202411
main91551-80820i¥80202010-202412
main91551-80820i¥80202007-202512
(J)
53420HINGE ASSY, HOOD, LH
main53420-0A030i202007-202512
TYPE A:REFER ILLUST.
main53420-0A040i202007-202512
TYPE B:REFER ILLUST.
main53420-0A050i202007-202512
TYPE C:REFER ILLUST.
main53420-0A060i202010-202410
main53420-0A090i202103-202412
TYPE A:REFER ILLUST.
main53420-0A100i202103-202412
TYPE B:REFER ILLUST.
main53420-0A110i202103-202412
TYPE C:REFER ILLUST.
main53420-0A210i202110-202411
TYPE A:REFER ILLUST.
main53420-0A220i202110-202411
TYPE C:REFER ILLUST.
main53420-0A230i202110-202411
TYPE B:REFER ILLUST.
53440DSUPPORT ASSY, HOOD
main53440-0A010i202007-202512
main53440-0A020i202010-202410
main53440-0A030i202103-202412
main53440-0A070i202110-202411
53452HOLDER, HOOD STAY
main53452-02360i202007-202512
(L)
main53452-02380i202010-202410
(L)
main53452-15020i¥340202007-202512
(J)
53510LOCK ASSY, HOOD
main53510-0A030i202007-202410
main53510-0A050i202010-202411
main53510-0A060i202103-202412
main53510-0A100i202110-202411
main53510-0A110i202110-202411
main53510-0A130i202112-202411
main53510-0A160i202404-202412
main53510-0A170i202411
main53510-16301i¥2,930202007-202512
main53510-16351i¥2,010202007-202111
53510ASPRING, TENSION(FOR HOOD LOCK)
main90506-09055i¥90202007-202512
WD=0.9,CW=21
53510DSPRING, TENSION(FOR HOOD LOCK)
main90506-12063i¥90202007-202512
WD=1.2,CW=8.5
main90506-18067i¥90202007-202411
WD=1.8,CW=13
53510ESPRING, TENSION(FOR HOOD LOCK)
main90506-18067i¥90202007-202512
WD=1.8,CW=13
main90506-T0004i202007-202411
WD=1.2,CW=8.5
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
main53601-0D040-C1i202103-202412
BLACK,TRIM0#,2#
main53601-0D040-C1i202103-202411
BLACK,TRIM2#
main53601-0D040-C1i202007-202411
BLACK,TRIM2#,3#
main53601-0D080-C0i202010-202410
BLACK,TRIM0#,2#,3#
main53601-0D080-C0i202010-202410
BLACK,TRIM2#,3#
main53601-0D080-C0i202108-202410
BLACK,TRIM2#
53614CLAMP, HOOD LOCK CONTROL CABLE
main53614-16010i¥300202007-202411
main53614-16020i¥290202007-202411
53630CABLE ASSY, HOOD LOCK CONTROL
main53630-0A030i202007-202411
main53630-0A040i202007-202411
main53630-0A050i202010-202410
main53630-0A060i202103-202412
main53630-0A100i202112-202411
main53630-0A120i202404-202412
8202
9011906A15
main90119-06A15¥60
