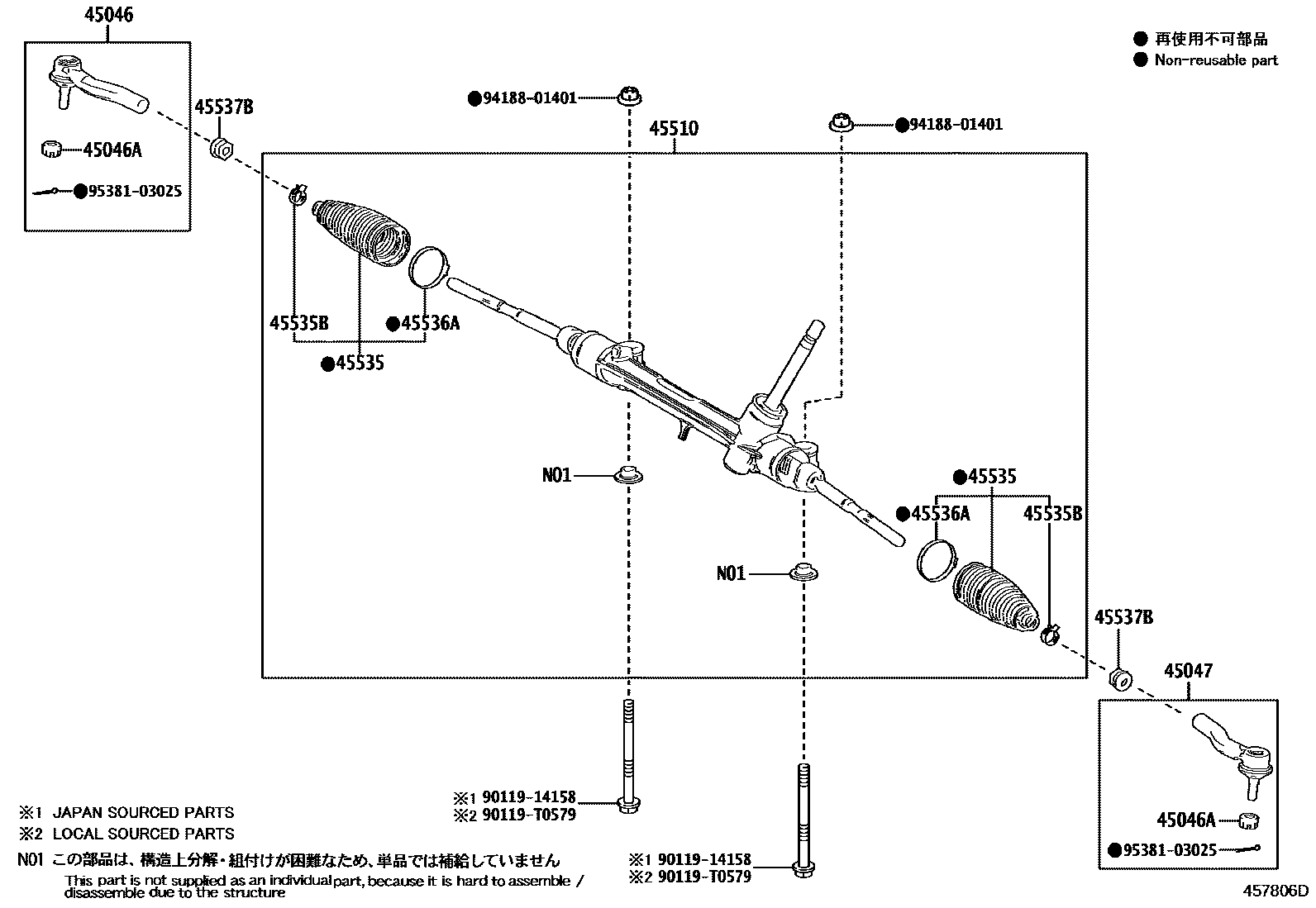

Toyota COROLLA CROSS — FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-09890iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202007-202512

main45046-09A10iMXGA10,ZVG10..BZP202103-202403

main45046-49255iZSG10,ZVG10..TWP¥2,690202010-202410

main45046-F9010iZSG10,ZVG10..SAP202110-202310

main45046-F9020iZSG10,ZVG10..SAP202310-202411

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iZSG10..TH¥130202007-202512

(J)

main90171-12028iMXGA10,ZVG10..BZP¥130202010-202412

main90171-T0004iZSG10..IDN202007-202512

(L)

45047END SUB-ASSY, TIE ROD, LH

main45046-F9020iZSG10,ZVG10..SAP202310-202411

main45047-09420iZSG10,ZVG10..MA202007-202512

main45047-09440iMXGA10,ZVG10..BZP202103-202403

main45047-49195iZSG10,ZVG10..TWP¥2,690202010-202410

main45047-F9010iZSG10,ZVG10..SAP202110-202310

45510GEAR ASSY, STEERING

main45510-0A020iZSG10,ZVG10..MA202007-202512

main45510-0A030iZSG10..LHD..THP;ZVG10..LHD..THP..E202007-202402

main45510-0A040iZSG10,ZVG10..TWP202010-202410

main45510-0A050iMXGA10,ZVG10..BZP202103-202412

main45510-0A070iZSG10,ZVG10..MA202112-202411

main45510-F4010iZSG10..LHD..SAP202110-202310

sub45510-F4011

main45510-F4011iZSG10..LHD..SAP202310-202411

main45510-F4020iZSG10,ZVG10..RHD..SAP202110-202310

sub45510-F4021

main45510-F4021iZSG10,ZVG10..RHD..SAP202310-202411

45535BOOT, STEERING RACK, NO.1

main45535-09560iZSG10,ZVG10..TWP202010-202410

main45535-09570iMXGA10,ZVG10..BZP202103-202403

main45535-09610iZSG10..TH202007-202512

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D040iMXGA10,ZVG10..BZP202103-202412

main45537-0D100iZSG10,ZVG10..TWP202010-202410

main90467-19021iZSG10,ZVG10..MAP..E¥180202007-202512

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-0D060iMXGA10,ZVG10..BZP202103-202412

main45538-0D090iZSG10..TH202007-202512

main45538-0D110iZSG10,ZVG10..TWP202010-202410

45537BNUT, RACK END LOCK

main90178-16001iMXGA10,ZVG10..BZP¥120202010-202412

main90178-16001iZSG10,ZVG10..MA¥120202007-202512

(J)

main90178-T0073iZSG10,ZVG10..MA202007-202512

(L)

9011914158

main90119-14158¥430

90119T0579

main90119-T0579

9418801401

main94188-01401¥190

9538103025

main95381-03025¥130

12 parts on this diagram · 2 diagrams in section
