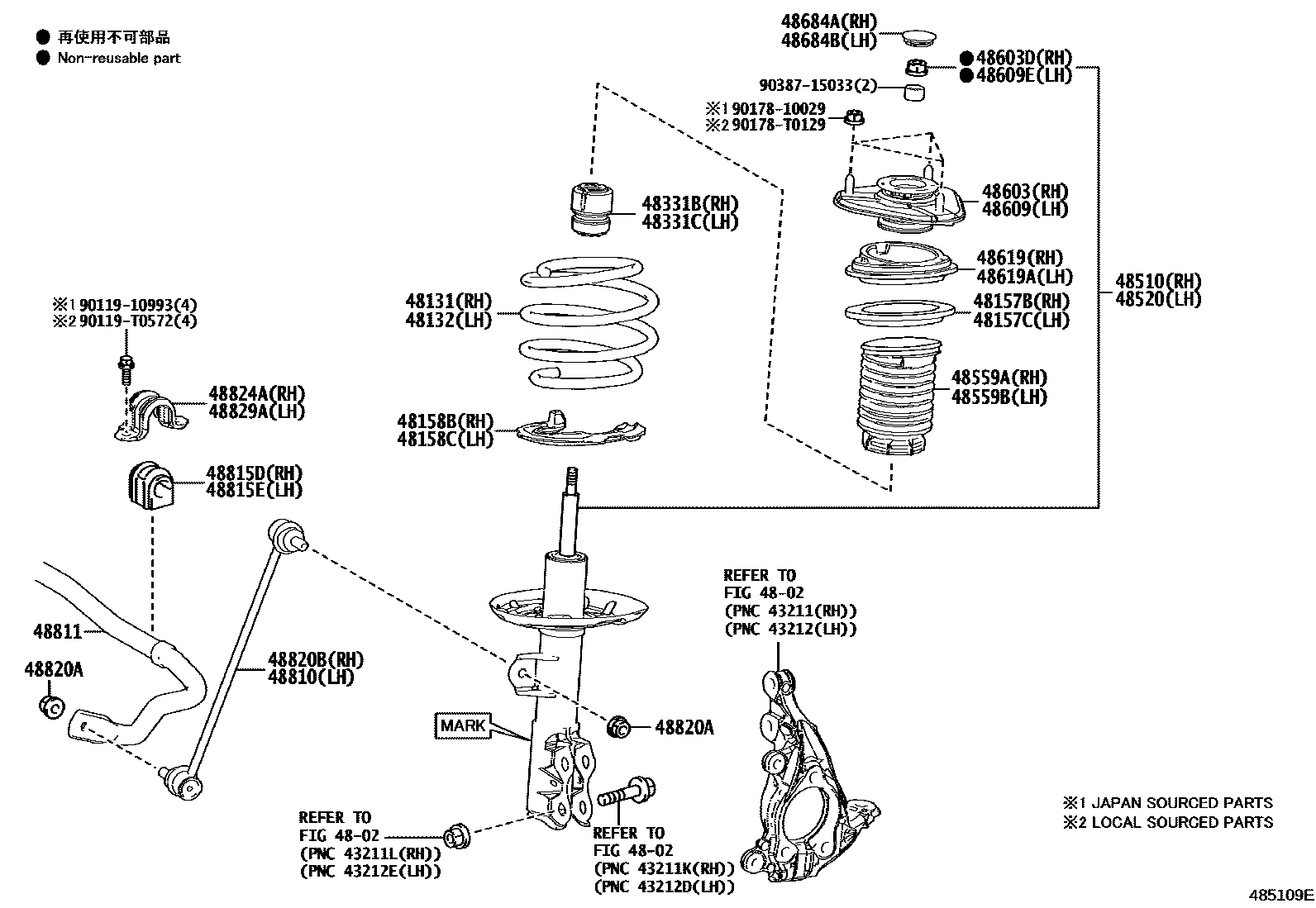

Toyota COROLLA CROSS — FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0A070iZSG10..TH202007-202512

main48131-0A080iZVG10..MAP202007-202411

main48131-0A090iZSG10..TWP..(G,J,N)202010-202410

main48131-0A100iZVG10..TWP..(E,G,N)202010-202410

main48131-0A110iMXGA10,ZVG10..BZP202103-202412

main48131-0A230iZVG10..R202411

GR SPORT

main48131-0A240iZSG10..M202108-202410

main48131-0A250iZVG10..L,M202108-202410

48132SPRING, FRONT COIL, LH

main48131-0A070iZSG10..MAP..E202007-202512

main48131-0A080iZVG10..MAP202007-202411

main48131-0A090iZSG10..TWP..(G,J,N)202010-202410

main48131-0A100iZVG10..TWP..(E,G,N)202010-202410

main48131-0A110iMXGA10,ZVG10..BZP202103-202412

main48131-0A230iZVG10..E..SA202411

GR SPORT

main48131-0A240iZSG10..M202108-202410

main48131-0A250iZVG10..L,M202108-202410

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-02360iZSG10,ZVG10..TWP202010-202410

main48157-02380iMXGA10,ZVG10..BZP202103-202412

main48157-F4020iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-02360iZSG10,ZVG10..TWP202010-202410

main48157-02380iMXGA10,ZVG10..BZP202103-202412

main48157-F4020iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202007-202512

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-02250iZSG10,ZVG10..TWP202010-202410

main48158-02270iMXGA10,ZVG10..BZP202103-202412

main48158-F4020iZSG10..IDN202007-202512

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-02250iZSG10,ZVG10..TWP202010-202410

main48158-02270iMXGA10,ZVG10..BZP202103-202412

main48158-F4020iZSG10..TH202007-202512

48331BBUMPER, FRONT SPRING, RH

main48331-02190iMXGA10,ZVG10..BZP202103-202412

main48331-10120iZSG10..IDN¥370202007-202512

48331CBUMPER, FRONT SPRING, LH

main48331-02190iMXGA10,ZVG10..BZP202103-202412

main48331-10120iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)¥370202007-202512

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-8Z462iZSG10..(G,J,N)..TAIW202010-202410

MARK 48510-0A060

main48510-8Z463iZVG10..(E,G,N)..TAIW202010-202410

MARK 48510-0A070

main48510-8Z464iZSG10..GCC202010-202410

MARK 48510-0A120

main48510-8Z465iZVG10..GCC202010-202410

MARK 48510-0A130

main48510-8Z466iZSG10..SAP202110-202404

MARK 48510-0A160

sub48510-8Z685

main48510-8Z467iZVG10..SA202110-202404

MARK 48510-0A170

sub48510-8Z686

main48510-8Z468iMXGA10,ZVG10..BZ202103-202412

MARK 48510-0A080

main48510-8Z470iZSG10..MA202007-202111

MARK 48510-0A040

sub48510-8Z497

main48510-8Z471iZVG10..MA202007-202111

MARK 48510-0A050

sub48510-8Z498

main48510-8Z482iZSG10..IDN202007-202512

MARK 48510-0A180

main48510-8Z483iZVG10..E..PH;ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

MARK 48510-0A190

main48510-8Z484iMXGA10,ZVG10..BZP..(AGT,GEN)202103-202412

MARK 48510-0A200

main48510-8Z497iZSG10..MA202112-202411

MARK 48510-0A210

main48510-8Z498iZVG10..MA202112-202410

MARK 48510-0A220

main48510-8Z501iZSG10..M202108-202410

MARK 48510-0A240

main48510-8Z502iZVG10..L,M202108-202410

MARK 48510-0A250

main48510-8Z685iZSG10..SAP202404-202411

MARK 48510-0A161

main48510-8Z686iZVG10..SA202404-202411

MARK 48510-0A171

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-8Z309iZSG10..(G,N)..TAIW202010-202410

MARK 48520-0A060

main48520-8Z310iZVG10..(E,G,N)..TAIW202010-202410

MARK 48520-0A070

main48520-8Z311iZSG10..GCC202010-202410

MARK 48520-0A120

main48520-8Z312iZVG10..GCC202010-202410

MARK 48520-0A130

main48520-8Z313iZSG10..SAP202110-202404

MARK 48520-0A160

sub48520-8Z490

main48520-8Z314iZVG10..SA202110-202404

MARK 48520-0A170

sub48520-8Z491

main48520-8Z315iMXGA10,ZVG10..BZ202103-202412

MARK 48520-0A080

main48520-8Z317iZSG10..MA202007-202111

MARK 48520-0A040

sub48520-8Z338

main48520-8Z318iZVG10..MA202007-202111

MARK 48520-0A050

sub48520-8Z339

main48520-8Z327iZSG10..IDN202007-202512

MARK 48520-0A180

main48520-8Z328iZVG10..E..PH;ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

MARK 48520-0A190

main48520-8Z329iMXGA10,ZVG10..BZP..(AGT,GEN)202103-202412

MARK 48520-0A200

main48520-8Z338iZSG10..MA202112-202411

MARK 48520-0A210

main48520-8Z339iZVG10..E..MA202112-202410

MARK 48520-0A220

main48520-8Z342iZSG10..M202108-202410

MARK 48520-0A240

main48520-8Z343iZVG10..L,M202108-202410

MARK 48520-0A250

main48520-8Z490iZSG10..SAP202404-202411

MARK 48520-0A161

main48520-8Z491iZVG10..SA202404-202411

MARK 48520-0A171

48559ACOVER, FRONT SHOCK ABSORBER DUST, RH NO.1

main48559-02060iZSG10,ZVG10..TWP202010-202410

main48559-F4020iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202007-202512

48559BCOVER, FRONT SHOCK ABSORBER DUST, LH NO.1

main48559-02060iZSG10,ZVG10..TWP202010-202410

main48559-F4020iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-02340iZSG10,ZVG10..TWP202010-202410

main48609-F4020iMXGA10,ZVG10..BZP202007-202512

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-14007iMXGA10,ZVG10..BZP¥120202007-202512

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-02340iZSG10,ZVG10..TWP202010-202410

main48609-F4020iMXGA10,ZVG10..BZP202007-202512

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-14007iMXGA10,ZVG10..BZP¥120202007-202512

48619BEARING, STRUT MOUNTING, RH

main48619-F4010iZSG10,ZVG10..MA¥3,030202007-202512

48619ABEARING, STRUT MOUNTING, LH

main48619-F4010iZSG10..TH¥3,030202007-202512

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-02030iZSG10,ZVG10..THP..(GEN,IDN,PH,TH,VN)202007-202210

main48684-02040iZSG10,ZVG10..TWP202010-202112

main48684-05020iZSG10,ZVG10..SAP202110-202210

main48684-52010iMXGA10,ZVG10..BZP¥600202103-202112

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-02030iZSG10,ZVG10..MAP202007-202210

main48684-02040iZSG10,ZVG10..TWP202010-202112

main48684-05020iZSG10,ZVG10..SAP202110-202210

main48684-52010iMXGA10,ZVG10..BZP¥600202103-202112

48810LINK ASSY, FRONT STABILIZER, LH

main48820-02130iMXGA10,ZVG10..BZP202103-202412

main48820-47040iZSG10,ZVG10..TWP¥3,320202010-202410

main48820-F4010iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202007-202512

48811BAR, STABILIZER, FRONT

main48811-02430iZSG10,ZVG10..TWP202010-202410

main48811-02480iMXGA10,ZVG10..BZP202103-202412

main48811-0A020iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202007-202512

main48811-0A100iZSG10,ZVG10..SAP202110-202411

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-0A020iZSG10..TH202007-202512

main48815-0A030iZSG10,ZVG10..SAP202010-202411

main48815-0A100iMXGA10,ZVG10..BZP202103-202412

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-0A020iZSG10,ZVG10..MA202007-202512

main48815-0A030iZVG10..SAP,TWP;ZSG10..LHD..(G,N)..GEN;ZSG10..(SAP,TWP)..(E,M);ZSG10..(G,J,N)..(GCC,SA,TAIW)202010-202411

main48815-0A100iMXGA10,ZVG10..BZP202103-202412

48820ANUT(FOR FRONT STABILIZER LINK)

main90178-T0087iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202007-202512

(L)

main94151-21241iZSG10,ZVG10..MAP..E¥100202007-202512

(J)

main94151-21241iMXGA10,ZVG10..BZP¥100202010-202412

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-02130iMXGA10,ZVG10..BZP202103-202412

main48820-47040iZSG10,ZVG10..TWP¥3,320202010-202410

main48820-F4010iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202007-202512

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-02120iZSG10,ZVG10..TWP202010-202410

main48824-0A080iZSG10,ZVG10..SAP202110-202411

main48824-47020iMXGA10,ZVG10..BZP¥1,120202103-202412

main48824-F4020iZSG10..TH202007-202512

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-02120iZSG10,ZVG10..TWP202010-202410

main48824-0A080iZSG10,ZVG10..SAP202110-202411

main48824-47020iMXGA10,ZVG10..BZP¥1,120202103-202412

main48824-F4020iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

9011910993

main90119-10993¥120

90119T0572

main90119-T0572

9017810029

main90178-10029¥100

90178T0129

main90178-T0129

9038715033

main90387-15033¥200

34 parts on this diagram · 1 diagram in section
