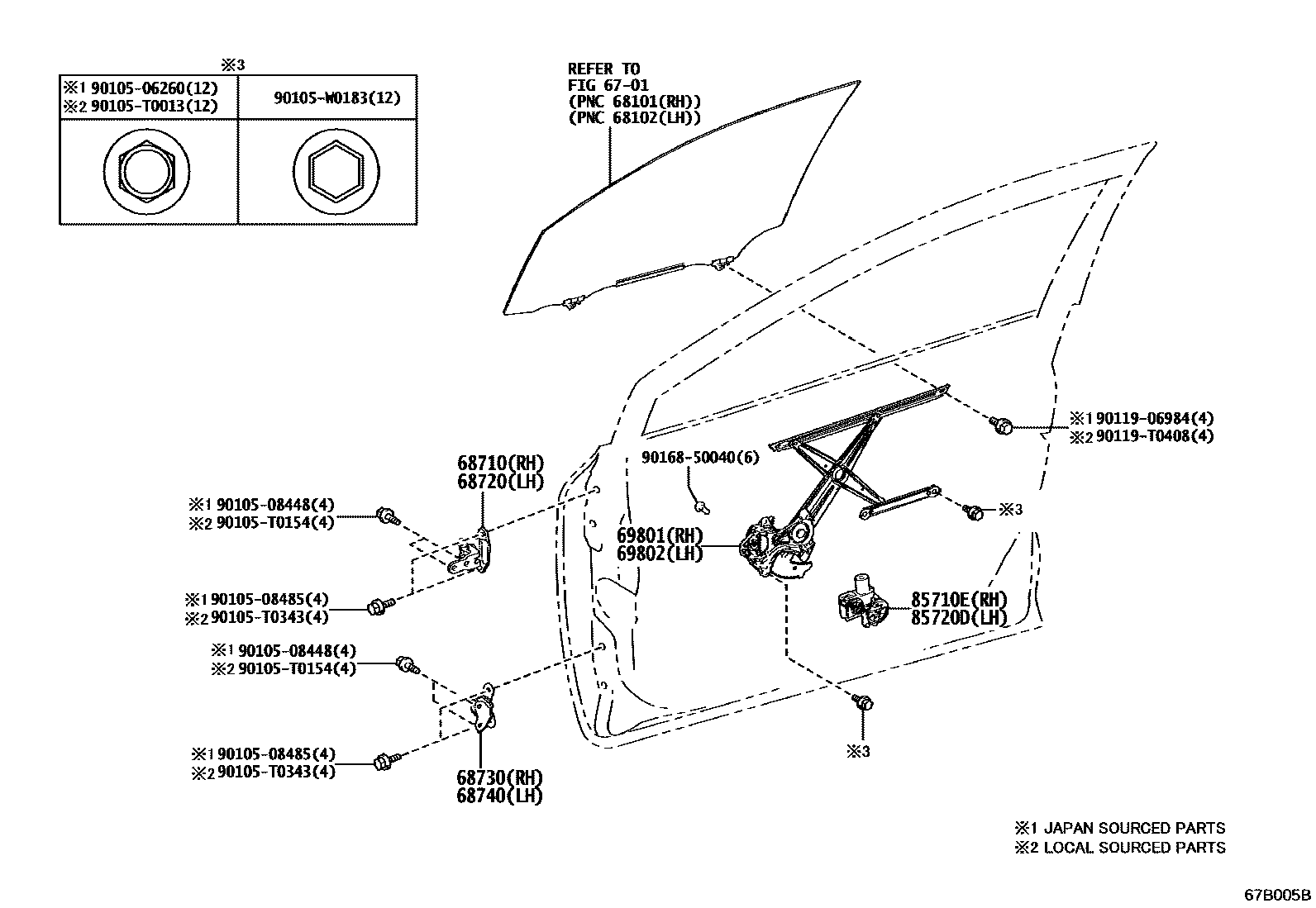

Toyota COROLLA CROSS — FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02070iZSG10,ZVG10..SAP202110-202411

main68710-02090iMXGA10,ZVG10..BZP202103-202412

main68710-0D050iZSG10..TWP..G;ZVG10..TWP..N;ZSG10..RHD..THP..GEN;ZSG10..(E,M,N)..(MA,TAIW,VN);ZVG10..(MAP,THP,TWP)..(E,G,L,M,R);ZSG10..LHD..(THP,TWP)..(E,J)..(GCC,GEN)¥2,030202007-202512

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02070iZSG10,ZVG10..SAP202110-202411

main68720-02090iMXGA10,ZVG10..BZP202103-202412

main68720-0D050iZSG10..MAP..G¥2,030202007-202512

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02070iZSG10,ZVG10..SAP202110-202411

main68730-02100iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

main68730-02120iMXGA10,ZVG10..BZP202103-202412

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02070iZSG10,ZVG10..SAP202110-202411

main68740-02100iZSG10..TWP..G;ZVG10..TWP..N;ZSG10..RHD..THP..GEN;ZSG10..(E,M,N)..(MA,TAIW,VN);ZVG10..(MAP,THP,TWP)..(E,G,L,M,R);ZSG10..LHD..(THP,TWP)..(E,J)..(GCC,GEN)202007-202512

main68740-02120iMXGA10,ZVG10..BZP202103-202412

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-0A060iMXGA10,ZVG10..BZP202103-202412

main69801-0A080iZSG10,ZVG10..SAP202110-202411

main69801-0D200iZSG10,ZVG10..TWP202010-202410

main69801-0D351iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202401-202512

main69801-0K140iZSG10..IDN¥4,250202007-202411

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-0A050iZSG10,ZVG10..TWP202010-202410

main69802-0A060iMXGA10,ZVG10..BZP202103-202412

main69802-0A080iZSG10,ZVG10..SAP202110-202411

main69802-0D331iZSG10..TH202401-202512

main69802-0K140iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥4,250202007-202411

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-0A040iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202401-202512

main85710-0A041iZSG10,ZVG10..MA202007-202411

main85710-0A050iZSG10,ZVG10..TWP202010-202411

main85710-0A060iMXGA10,ZVG10..BZP202103-202412

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-0A030iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202401-202512

main85720-0A031iZSG10..IDN202007-202411

main85720-0A040iZVG10..SAP,TWP;ZSG10..LHD..(G,N)..GEN;ZSG10..(SAP,TWP)..(E,M);ZSG10..(G,J,N)..(GCC,SA,TAIW)202010-202411

main85720-0A050iMXGA10,ZVG10..BZP202103-202412

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

90105T0013

main90105-T0013¥60

90105T0154

main90105-T0154

90105T0343

main90105-T0343

90105W0183

main90105-W0183¥60

9011906984

main90119-06984¥60

90119T0408

main90119-T0408¥60

9016850040

main90168-50040¥70

19 parts on this diagram · 1 diagram in section
