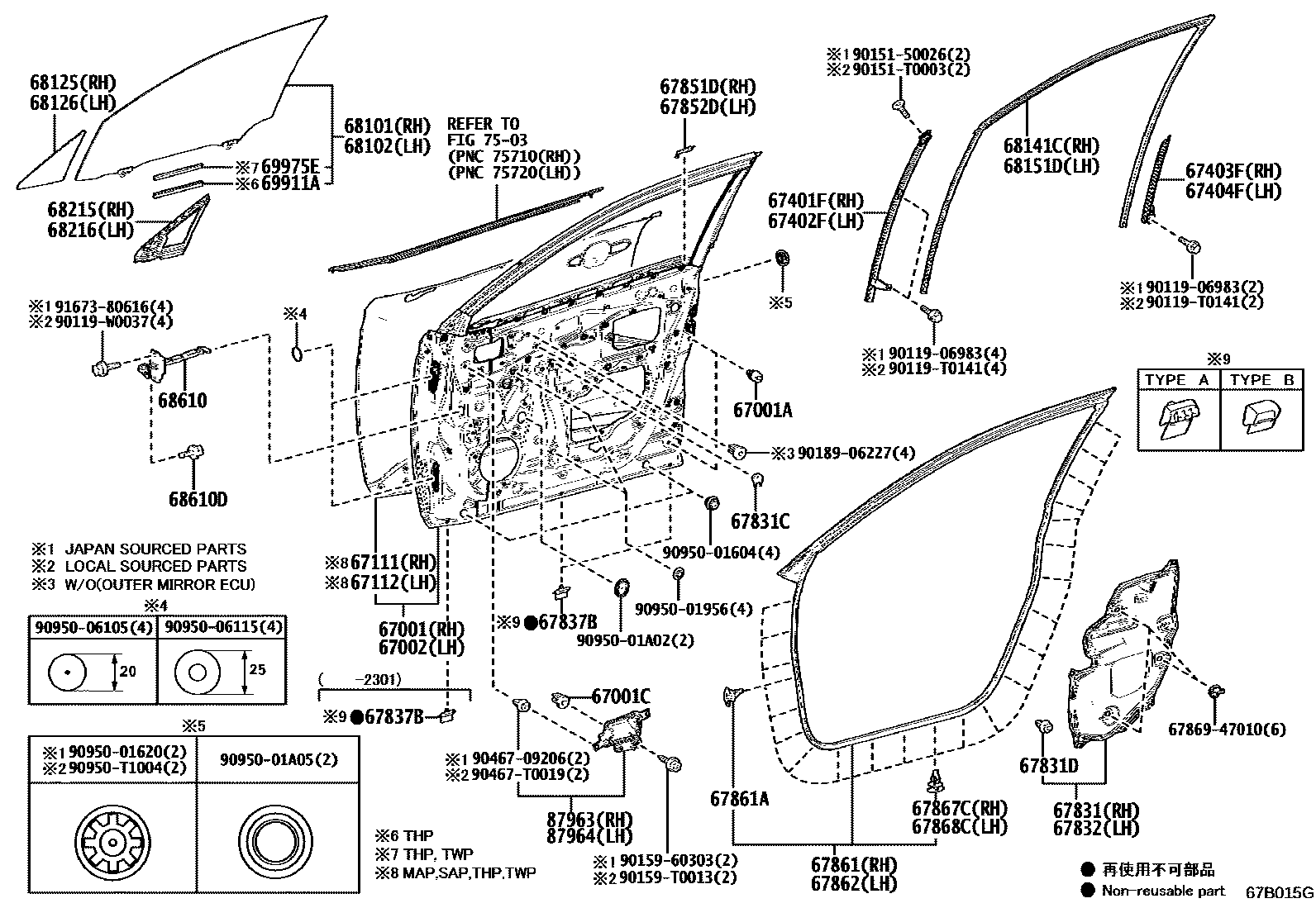

Toyota COROLLA CROSS — FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0A080iZSG10,ZVG10..SAP202110-202411

main67001-0A080iZSG10,ZVG10..SAP202411

main67001-0A090iZSG10..G..MA202112-202411

main67001-0A090iZSG10,ZVG10..E..MA202112-202410

main67001-0A090iZSG10,ZVG10..MA202411

main67001-K1010iMXGA10,ZVG10..BZP202007-202112

main67001-K1010iMXGA10,ZVG10..BZP202501

main67001-K1010iMXGA10,ZVG10..BZP202201-202403

main67001-K1010iMXGA10,ZVG10..BZP202401-202412

main67001-K1010iZSG10..TH202401-202512

main67001-K1010iZVG10..TWP..N;ZSG10..(G,J)..GCC;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZVG10..(THP,TWP)..(E,G,L,M);ZSG10..(E,G,M,N)..(TAIW,VN)202401

main67001-K1010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67001-K1010iZSG10,ZVG10..TWP202007-202410

main67001-K1010iZSG10..IDN202007-202212

main67001-K1010iZSG10,ZVG10..MA202007-202111

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iMXGA10,ZVG10..BZP¥100202201-202403

main90541-09124iMXGA10,ZVG10..BZP¥100202501

main90541-09124iZSG10,ZVG10..MA¥100202007-202111

main90541-09124iMXGA10,ZVG10..BZP¥100202007-202112

main90541-09124iZSG10..IDN¥100202007-202212

main90541-09124iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥100202007-202402

main90541-09124iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)¥100202007-202410

main90541-09124iZSG10..MAP..G;ZSG10,ZVG10..SAP¥100202007-202411

main90541-09124iMXGA10,ZVG10..BZP¥100202401-202412

main90541-09124iZSG10..TH¥100202401-202512

main90541-09124iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP¥100202401

67001CGROMMET(FOR FRONT DOOR PANEL)

main90189-06197iMXGA10,ZVG10..BZP¥70202103-202112

main90189-06197iMXGA10,ZVG10..BZP¥70202501

main90189-06197iMXGA10,ZVG10..BZP¥70202404-202412

main90189-06197iMXGA10,ZVG10..BZP¥70202201-202403

main90189-06227iZSG10..MAP..G;ZSG10,ZVG10..SAP¥70202007-202411

main90189-06227iZSG10..TH¥70202401-202512

main90189-06227iZSG10,ZVG10..MA¥70202007-202111

main90189-06227iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)¥70202007-202410

main90189-06227iZSG10..IDN¥70202007-202212

main90189-06227iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥70202007-202402

main90189-06227iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP¥70202401

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0A080iZSG10,ZVG10..SAP202110-202411

main67002-0A080iZSG10,ZVG10..SAP202411

main67002-0A090iZSG10,ZVG10..MA202411

main67002-0A090iZSG10..G..MA202112-202411

main67002-0A090iZSG10,ZVG10..E..MA202112-202410

main67002-K1010iZVG10..TWP..N;ZSG10..(G,J)..GCC;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZVG10..(THP,TWP)..(E,G,L,M);ZSG10..(E,G,M,N)..(TAIW,VN)202401

main67002-K1010iMXGA10,ZVG10..BZP202501

main67002-K1010iZSG10,ZVG10..MA202007-202111

main67002-K1010iMXGA10,ZVG10..BZP202007-202112

main67002-K1010iZSG10..IDN202007-202212

main67002-K1010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67002-K1010iZSG10,ZVG10..TWP202007-202410

main67002-K1010iMXGA10,ZVG10..BZP202201-202403

main67002-K1010iMXGA10,ZVG10..BZP202401-202412

main67002-K1010iZSG10..TH202401-202512

67111PANEL, FRONT DOOR, OUTER RH

main67111-0A050iZSG10,ZVG10..SAP202411

main67111-0A050iZSG10,ZVG10..SAP202110-202411

main67111-0A060iZSG10,ZVG10..E..MA202112-202410

main67111-0A060iZSG10,ZVG10..MA202411

main67111-0A060iZSG10..G..MA202112-202411

main67111-K1010iZSG10..TH202401-202512

main67111-K1010iMXGA10,ZVG10..BZP202501

main67111-K1010iZSG10,ZVG10..MA202007-202111

main67111-K1010iZSG10..IDN202007-202212

main67111-K1010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67111-K1010iZSG10,ZVG10..TWP202007-202410

main67111-K1010iMXGA10,ZVG10..BZP202201-202403

main67111-K1010iMXGA10,ZVG10..BZP202401-202412

main67111-K1010iZVG10..TWP..N;ZSG10..(G,J)..GCC;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZVG10..(THP,TWP)..(E,G,L,M);ZSG10..(E,G,M,N)..(TAIW,VN)202401

67112PANEL, FRONT DOOR, OUTER LH

main67112-0A050iZSG10,ZVG10..SAP202411

main67112-0A050iZSG10,ZVG10..SAP202110-202411

main67112-0A060iZSG10,ZVG10..E..MA202112-202410

main67112-0A060iZSG10,ZVG10..MA202411

main67112-0A060iZSG10..G..MA202112-202411

main67112-K1010iMXGA10,ZVG10..BZP202501

main67112-K1010iZSG10,ZVG10..MA202007-202111

main67112-K1010iZSG10..IDN202007-202212

main67112-K1010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67112-K1010iZSG10,ZVG10..TWP202007-202410

main67112-K1010iMXGA10,ZVG10..BZP202201-202403

main67112-K1010iMXGA10,ZVG10..BZP202401-202412

main67112-K1010iZSG10..TH202401-202512

main67112-K1010iZVG10..TWP..N;ZSG10..(G,J)..GCC;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZVG10..(THP,TWP)..(E,G,L,M);ZSG10..(E,G,M,N)..(TAIW,VN)202401

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-0A020iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202401

main67401-0A020iMXGA10,ZVG10..BZP202501

main67401-0A020iMXGA10,ZVG10..BZP202007-202112

main67401-0A020iZSG10..IDN202007-202212

main67401-0A020iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67401-0A020iZSG10,ZVG10..MAP..E202007-202410

main67401-0A020iZSG10,ZVG10..MA202007-202111

main67401-0A020iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202411

main67401-0A020iMXGA10,ZVG10..BZP202201-202403

main67401-0A020iMXGA10,ZVG10..BZP202401-202412

main67401-0A020iZSG10..TH202401-202512

main67401-0A030iZSG10,ZVG10..TWP202410

main67401-0A030iZSG10,ZVG10..TWP202010-202410

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-0A020iMXGA10,ZVG10..BZP202501

main67402-0A020iZSG10,ZVG10..MA202007-202111

main67402-0A020iMXGA10,ZVG10..BZP202007-202112

main67402-0A020iZSG10..IDN202007-202212

main67402-0A020iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67402-0A020iZSG10,ZVG10..MAP..E202007-202410

main67402-0A020iZSG10..TH202401-202512

main67402-0A020iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202401

main67402-0A020iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202411

main67402-0A020iMXGA10,ZVG10..BZP202201-202403

main67402-0A020iMXGA10,ZVG10..BZP202401-202412

main67402-0A030iZSG10,ZVG10..TWP202010-202410

main67402-0A030iZSG10,ZVG10..TWP202410

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0A010iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202411

main67403-0A010iZSG10,ZVG10..MA202007-202111

main67403-0A010iZSG10..IDN202007-202212

main67403-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67403-0A010iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202410

main67403-0A010iZSG10..TH202401-202512

main67403-0A010iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP202401

main67403-0A030iMXGA10,ZVG10..BZP202201-202403

main67403-0A030iMXGA10,ZVG10..BZP202404-202412

main67403-0A030iMXGA10,ZVG10..BZP202103-202112

main67403-0A030iMXGA10,ZVG10..BZP202501

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0A010iZSG10,ZVG10..MA202007-202111

main67404-0A010iZSG10..IDN202007-202212

main67404-0A010iZSG10..TH202401-202512

main67404-0A010iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP202401

main67404-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67404-0A010iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202410

main67404-0A010iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202411

main67404-0A030iMXGA10,ZVG10..BZP202501

main67404-0A030iMXGA10,ZVG10..BZP202103-202112

main67404-0A030iMXGA10,ZVG10..BZP202201-202403

main67404-0A030iMXGA10,ZVG10..BZP202404-202412

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0A030iZSG10..TH202401-202512

main67831-0A030iZSG10,ZVG10..MA202007-202111

main67831-0A030iZSG10..IDN202007-202212

main67831-0A030iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67831-0A030iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main67831-0A040iZSG10,ZVG10..TWP202410

main67831-0A040iZSG10,ZVG10..TWP202010-202410

main67831-0A050iMXGA10,ZVG10..BZP202404-202412

main67831-0A050iMXGA10,ZVG10..BZP202501

main67831-0A050iMXGA10,ZVG10..BZP202103-202112

main67831-0A050iMXGA10,ZVG10..BZP202201-202403

main67831-0A090iZSG10,ZVG10..SAP202411

main67831-0A090iZSG10,ZVG10..SAP202110-202411

main67831-0A100iZSG10..G..MA202112-202411

main67831-0A100iZSG10,ZVG10..E..MA202112-202410

main67831-0A100iZSG10,ZVG10..MA202411

67831CCOVER, FRONT DOOR SERVICE HOLE

main67833-47010iMXGA10,ZVG10..BZP¥200202007-202112

main67833-47010iZSG10,ZVG10..MA¥200202007-202111

main67833-47010iZSG10..TH¥200202401-202512

main67833-47010iMXGA10,ZVG10..BZP¥200202401-202412

main67833-47010iZSG10..MAP..G;ZSG10,ZVG10..SAP¥200202007-202411

main67833-47010iMXGA10,ZVG10..BZP¥200202201-202403

main67833-47010iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)¥200202007-202410

main67833-47010iMXGA10,ZVG10..BZP¥200202501

main67833-47010iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP¥200202401

main67833-47010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥200202007-202402

main67833-47010iZSG10..IDN¥200202007-202212

67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)

main90467-09206iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP¥80202401

main90467-09206iZSG10..IDN¥80202007-202212

main90467-09206iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥80202007-202402

main90467-09206iMXGA10,ZVG10..BZP¥80202007-202112

main90467-09206iZSG10,ZVG10..MA¥80202007-202111

main90467-09206iMXGA10,ZVG10..BZP¥80202501

main90467-09206iMXGA10,ZVG10..BZP¥80202401-202412

main90467-09206iZSG10..MAP..G;ZSG10,ZVG10..SAP¥80202007-202411

main90467-09206iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)¥80202007-202410

main90467-09206iMXGA10,ZVG10..BZP¥80202201-202403

main90467-09206iZSG10..TH¥80202401-202512

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0A030iZSG10..TH202401-202512

main67832-0A030iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67832-0A030iZSG10,ZVG10..MA202007-202111

main67832-0A030iZSG10..IDN202007-202212

main67832-0A030iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main67832-0A040iZSG10,ZVG10..TWP202410

main67832-0A040iZSG10,ZVG10..TWP202010-202410

main67832-0A050iMXGA10,ZVG10..BZP202103-202112

main67832-0A050iMXGA10,ZVG10..BZP202201-202403

main67832-0A050iMXGA10,ZVG10..BZP202404-202412

main67832-0A050iMXGA10,ZVG10..BZP202501

main67832-0A090iZSG10,ZVG10..SAP202110-202411

main67832-0A090iZSG10,ZVG10..SAP202411

main67832-0A100iZSG10..G..MA202112-202411

main67832-0A100iZSG10,ZVG10..E..MA202112-202410

main67832-0A100iZSG10,ZVG10..MA202411

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K090iZSG10..THP;ZVG10..E..PH;ZVG10..THP..(GEN,IDN,TH,VN)¥80202301-202402

TYPE A:REFER ILLUST.

main67837-0K090iZSG10,ZVG10..MAP¥80202010-202301

main67837-0K090iZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,PH,TH,VN)¥80202007-202301

TYPE A:REFER ILLUST.

main67837-0K090iZSG10,ZVG10..TWP¥80202010-202212

main67837-0K090iZSG10..IDN¥80202007-202212

TYPE A:REFER ILLUST.

main67837-0K090iZSG10,ZVG10..MA¥80202007-202111

TYPE A:REFER ILLUST.

main67837-0K090iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)¥80202410

main67837-0K090iZSG10..TH¥80202401-202512

TYPE A:REFER ILLUST.

main67837-0K090iZSG10..G..MA¥80202301-202411

TYPE A:REFER ILLUST.

main67837-0K090iZSG10,ZVG10..E..MA¥80202301-202410

TYPE A:REFER ILLUST.

main67837-0K090iZSG10,ZVG10..TWP¥80202212-202410

main67837-0K090iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN¥80202401

TYPE A:REFER ILLUST.

main67837-0K092iMXGA10,ZVG10..BZP¥80202103-202112

main67837-0K092iMXGA10,ZVG10..BZP¥80202201-202403

main67837-0K092iMXGA10,ZVG10..BZP¥80202404-202412

main67837-0K092iMXGA10,ZVG10..BZP¥80202501

main67837-10041iZSG10..TH¥80202401-202512

TYPE B:REFER ILLUST.

main67837-10041iZSG10,ZVG10..MA¥80202007-202111

TYPE B:REFER ILLUST.

main67837-10041iZSG10..IDN¥80202007-202212

TYPE B:REFER ILLUST.

main67837-10041iZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,PH,TH,VN)¥80202007-202301

TYPE B:REFER ILLUST.

main67837-10041iZSG10..THP;ZVG10..E..PH;ZVG10..THP..(GEN,IDN,TH,VN)¥80202301-202402

TYPE B:REFER ILLUST.

main67837-10041iZSG10,ZVG10..SAP¥80202110-202411

main67837-10041iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN¥80202401

TYPE B:REFER ILLUST.

main67837-10041iZSG10,ZVG10..SAP¥80202411

67851DSEAL, FRONT DOOR REAR OUTSIDE, RH

main67851-0A010iMXGA10,ZVG10..BZP202007-202112

main67851-0A010iZSG10,ZVG10..MA202007-202111

main67851-0A010iMXGA10,ZVG10..BZP202501

main67851-0A010iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202401

main67851-0A010iZSG10..TH202401-202512

main67851-0A010iMXGA10,ZVG10..BZP202401-202412

main67851-0A010iMXGA10,ZVG10..BZP202201-202403

main67851-0A010iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202411

main67851-0A010iZSG10,ZVG10..MAP..E202007-202410

main67851-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67851-0A010iZSG10..IDN202007-202212

main67851-0A020iZSG10,ZVG10..TWP202010-202410

main67851-0A020iZSG10,ZVG10..TWP202410

67852DSEAL, FRONT DOOR REAR OUTSIDE, LH

main67852-0A010iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202411

main67852-0A010iMXGA10,ZVG10..BZP202201-202403

main67852-0A010iMXGA10,ZVG10..BZP202401-202412

main67852-0A010iZSG10,ZVG10..MAP..E202007-202410

main67852-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67852-0A010iZSG10..IDN202007-202212

main67852-0A010iMXGA10,ZVG10..BZP202007-202112

main67852-0A010iZSG10,ZVG10..MA202007-202111

main67852-0A010iMXGA10,ZVG10..BZP202501

main67852-0A010iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202401

main67852-0A010iZSG10..TH202401-202512

main67852-0A020iZSG10,ZVG10..TWP202010-202410

main67852-0A020iZSG10,ZVG10..TWP202410

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0A020iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67861-0A020iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main67861-0A020iZSG10..TH202401-202512

main67861-0A020iZSG10..IDN202007-202212

main67861-0A020iZSG10,ZVG10..MA202007-202111

main67861-0A030iZSG10,ZVG10..TWP202010-202410

main67861-0A030iZSG10,ZVG10..TWP202410

main67861-0A040iMXGA10,ZVG10..BZP202103-202112

main67861-0A040iMXGA10,ZVG10..BZP202501

main67861-0A040iMXGA10,ZVG10..BZP202201-202403

main67861-0A040iMXGA10,ZVG10..BZP202404-202412

main67861-0A080iZSG10,ZVG10..SAP202110-202411

main67861-0A080iZSG10,ZVG10..SAP202411

main67861-0A090iZSG10..G..MA202112-202411

main67861-0A090iZSG10,ZVG10..E..MA202112-202410

main67861-0A090iZSG10,ZVG10..MA202411

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-52040iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP¥100202401

main67867-52040iMXGA10,ZVG10..BZP¥100202501

main67867-52040iZSG10,ZVG10..MA¥100202007-202111

main67867-52040iMXGA10,ZVG10..BZP¥100202007-202112

main67867-52040iZSG10..IDN¥100202007-202212

main67867-52040iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥100202007-202402

main67867-52040iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)¥100202007-202410

main67867-52040iZSG10..MAP..G;ZSG10,ZVG10..SAP¥100202007-202411

main67867-52040iMXGA10,ZVG10..BZP¥100202201-202403

main67867-52040iMXGA10,ZVG10..BZP¥100202401-202412

main67867-52040iZSG10..TH¥100202401-202512

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0A020iZSG10..IDN202007-202212

main67862-0A020iZSG10,ZVG10..MA202007-202111

main67862-0A020iZSG10..TH202401-202512

main67862-0A020iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main67862-0A020iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main67862-0A030iZSG10,ZVG10..TWP202010-202410

main67862-0A030iZSG10,ZVG10..TWP202410

main67862-0A040iMXGA10,ZVG10..BZP202404-202412

main67862-0A040iMXGA10,ZVG10..BZP202201-202403

main67862-0A040iMXGA10,ZVG10..BZP202501

main67862-0A040iMXGA10,ZVG10..BZP202103-202112

main67862-0A080iZSG10,ZVG10..SAP202110-202411

main67862-0A080iZSG10,ZVG10..SAP202411

main67862-0A090iZSG10,ZVG10..E..MA202112-202410

main67862-0A090iZSG10,ZVG10..MA202411

main67862-0A090iZSG10..G..MA202112-202411

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-0A020iMXGA10,ZVG10..BZP202404-202412

main67867-0A020iMXGA10,ZVG10..BZP202103-202112

main67867-0A020iMXGA10,ZVG10..BZP202501

main67867-0A020iMXGA10,ZVG10..BZP202201-202403

main67867-12150iZVG10..MAP,SAP,TWP;ZSG10..LHD..(G,N)..GEN;ZSG10..(MAP,SAP,TWP)..(E,M);ZSG10..(G,J,N)..(GCC,SA,TAIW)¥100202410

main67867-12150iZSG10,ZVG10..THP¥100202007-202108

main67867-12150iZSG10,ZVG10..TWP¥100202007-202205

main67867-12150iZSG10,ZVG10..MAP..E¥100202007-202410

main67867-12150iZSG10,ZVG10..TWP¥100202206-202410

main67867-12150iZSG10..MAP..G¥100202007-202411

main67867-12150iZSG10,ZVG10..SAP¥100202110-202411

(J)

main67868-0D070iZSG10,ZVG10..MA202108-202111

main67868-0D070iZSG10..IDN202108-202212

main67868-0D070iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202108-202402

main67868-0D070iZSG10,ZVG10..SAP202110-202203

(L)

main67868-0D070iZSG10..TH202401-202512

main67868-0D070iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-0A030iMXGA10,ZVG10..BZP202103-202112

main67867-0A030iMXGA10,ZVG10..BZP202201-202403

main67867-0A030iMXGA10,ZVG10..BZP202501

main67867-0A030iMXGA10,ZVG10..BZP202404-202412

main67867-12150iZSG10..MAP..G¥100202007-202411

main67867-12150iZSG10,ZVG10..THP¥100202007-202108

main67867-12150iZSG10,ZVG10..TWP¥100202007-202205

main67867-12150iZSG10,ZVG10..MAP..E¥100202007-202410

main67867-12150iZSG10,ZVG10..TWP¥100202206-202410

main67867-12150iZSG10,ZVG10..SAP¥100202110-202411

(J)

main67867-12150iZVG10..MAP,SAP,TWP;ZSG10..LHD..(G,N)..GEN;ZSG10..(MAP,SAP,TWP)..(E,M);ZSG10..(G,J,N)..(GCC,SA,TAIW)¥100202410

main67868-0D050iZSG10,ZVG10..MA202108-202111

main67868-0D050iZSG10,ZVG10..SAP202110-202203

(L)

main67868-0D050iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202108-202402

main67868-0D050iZSG10..TH202401-202512

main67868-0D050iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main67868-0D050iZSG10..IDN202108-202212

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-0A010iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main68101-0A010iZSG10,ZVG10..MA202007-202111

main68101-0A010iZSG10..TH202401-202512

main68101-0A010iZSG10..IDN202007-202212

main68101-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main68101-0A020iZSG10,ZVG10..TWP202010-202410

main68101-0A020iZSG10,ZVG10..TWP202410

main68101-0A030iMXGA10,ZVG10..BZP202103-202112

sub68101-0A031

main68101-0A030iMXGA10,ZVG10..BZP202201-202212

sub68101-0A031

main68101-0A031iMXGA10,ZVG10..BZP202501

main68101-0A031iMXGA10,ZVG10..BZP202301-202403

main68101-0A031iMXGA10,ZVG10..BZP202404-202412

main68101-0A070iZSG10,ZVG10..SAP202110-202411

main68101-0A070iZSG10,ZVG10..SAP202411

main68101-0A080iZSG10,ZVG10..MA202411

main68101-0A080iZSG10,ZVG10..E..MA202112-202410

main68101-0A080iZSG10..G..MA202112-202411

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-0A010iZSG10..TH202401-202512

main68102-0A010iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main68102-0A010iZSG10,ZVG10..MA202007-202111

main68102-0A010iZSG10..IDN202007-202212

main68102-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main68102-0A020iZSG10,ZVG10..TWP202410

main68102-0A020iZSG10,ZVG10..TWP202010-202410

main68102-0A030iMXGA10,ZVG10..BZP202103-202112

sub68102-0A031

main68102-0A030iMXGA10,ZVG10..BZP202201-202212

sub68102-0A031

main68102-0A031iMXGA10,ZVG10..BZP202404-202412

main68102-0A031iMXGA10,ZVG10..BZP202501

main68102-0A031iMXGA10,ZVG10..BZP202301-202403

main68102-0A070iZSG10,ZVG10..SAP202411

main68102-0A070iZSG10,ZVG10..SAP202110-202411

main68102-0A080iZSG10,ZVG10..MA202411

main68102-0A080iZSG10,ZVG10..E..MA202112-202410

main68102-0A080iZSG10..G..MA202112-202411

68125GLASS, FRONT DOOR FIX WINDOW, RH

main68125-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main68125-0A010iZSG10,ZVG10..MA202007-202111

main68125-0A010iZSG10..IDN202007-202212

main68125-0A010iZSG10..TH202401-202512

main68125-0A010iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main68125-0A020iZSG10,ZVG10..TWP202410

main68125-0A020iZSG10,ZVG10..TWP202010-202410

main68125-0A030iMXGA10,ZVG10..BZP202201-202212

sub68125-0A031

main68125-0A030iMXGA10,ZVG10..BZP202103-202112

sub68125-0A031

main68125-0A031iMXGA10,ZVG10..BZP202404-202412

main68125-0A031iMXGA10,ZVG10..BZP202301-202403

main68125-0A031iMXGA10,ZVG10..BZP202501

main68125-0A070iZSG10,ZVG10..SAP202110-202411

main68125-0A070iZSG10,ZVG10..SAP202411

main68125-0A080iZSG10,ZVG10..MA202411

main68125-0A080iZSG10,ZVG10..E..MA202112-202410

main68125-0A080iZSG10..G..MA202112-202411

68126GLASS, FRONT DOOR FIX WINDOW, LH

main68126-0A010iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main68126-0A010iZSG10,ZVG10..MA202007-202111

main68126-0A010iZSG10..IDN202007-202212

main68126-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main68126-0A010iZSG10..TH202401-202512

main68126-0A020iZSG10,ZVG10..TWP202010-202410

main68126-0A020iZSG10,ZVG10..TWP202410

main68126-0A030iMXGA10,ZVG10..BZP202201-202212

sub68126-0A031

main68126-0A030iMXGA10,ZVG10..BZP202103-202112

sub68126-0A031

main68126-0A031iMXGA10,ZVG10..BZP202301-202403

main68126-0A031iMXGA10,ZVG10..BZP202404-202412

main68126-0A031iMXGA10,ZVG10..BZP202501

main68126-0A070iZSG10,ZVG10..SAP202110-202411

main68126-0A070iZSG10,ZVG10..SAP202411

main68126-0A080iZSG10,ZVG10..E..MA202112-202410

main68126-0A080iZSG10..G..MA202112-202411

main68126-0A080iZSG10,ZVG10..MA202411

68141CRUN, FRONT DOOR GLASS, RH

main68141-0A030iZSG10..IDN202007-202212

main68141-0A030iZSG10,ZVG10..MA202007-202111

main68141-0A030iZSG10..TH202401-202512

main68141-0A030iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main68141-0A030iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main68141-0A040iZSG10,ZVG10..TWP202410

main68141-0A040iZSG10,ZVG10..TWP202010-202410

main68141-0A050iMXGA10,ZVG10..BZP202201-202403

main68141-0A050iMXGA10,ZVG10..BZP202501

main68141-0A050iMXGA10,ZVG10..BZP202103-202112

main68141-0A050iMXGA10,ZVG10..BZP202404-202412

main68141-0A090iZSG10,ZVG10..SAP202110-202411

main68141-0A090iZSG10,ZVG10..SAP202411

main68141-0A100iZSG10..G..MA202112-202411

main68141-0A100iZSG10,ZVG10..MA202411

main68141-0A100iZSG10,ZVG10..E..MA202112-202410

68151DRUN, FRONT DOOR GLASS, LH

main68151-0A030iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main68151-0A030iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

main68151-0A030iZSG10,ZVG10..MA202007-202111

main68151-0A030iZSG10..TH202401-202512

main68151-0A030iZSG10..IDN202007-202212

main68151-0A040iZSG10,ZVG10..TWP202010-202410

main68151-0A040iZSG10,ZVG10..TWP202410

main68151-0A050iMXGA10,ZVG10..BZP202103-202112

main68151-0A050iMXGA10,ZVG10..BZP202501

main68151-0A050iMXGA10,ZVG10..BZP202201-202403

main68151-0A050iMXGA10,ZVG10..BZP202404-202412

main68151-0A090iZSG10,ZVG10..SAP202110-202411

main68151-0A090iZSG10,ZVG10..SAP202411

main68151-0A100iZSG10,ZVG10..MA202411

main68151-0A100iZSG10,ZVG10..E..MA202112-202410

main68151-0A100iZSG10..G..MA202112-202411

68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH

main68215-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main68215-0A010iZSG10,ZVG10..MA202007-202111

main68215-0A010iZSG10..TH202401-202512

main68215-0A010iZSG10..(SAP,THP)..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZVG10..(SAP,THP)..(E,G);ZSG10..RHD..THP..(G,N)..GEN202401

main68215-0A010iZSG10..IDN202007-202212

main68215-0A010iZSG10,ZVG10..SAP202007-202411

main68215-0A020iZSG10,ZVG10..TWP202010-202410

main68215-0A020iZSG10,ZVG10..TWP202410

main68215-0A030iMXGA10,ZVG10..BZP202103-202112

main68215-0A030iMXGA10,ZVG10..BZP202501

main68215-0A030iMXGA10,ZVG10..BZP202201-202403

main68215-0A030iMXGA10,ZVG10..BZP202404-202412

main68215-0A070iZSG10,ZVG10..E..MA202112-202410

main68215-0A070iZSG10..G..MA202112-202411

main68215-0A070iZSG10,ZVG10..MA202411

68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH

main68216-0A010iZSG10,ZVG10..MA202007-202111

main68216-0A010iZSG10,ZVG10..SAP202007-202411

main68216-0A010iZSG10..IDN202007-202212

main68216-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main68216-0A010iZSG10..(SAP,THP)..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZVG10..(SAP,THP)..(E,G);ZSG10..RHD..THP..(G,N)..GEN202401

main68216-0A010iZSG10..TH202401-202512

main68216-0A020iZSG10,ZVG10..TWP202010-202410

main68216-0A020iZSG10,ZVG10..TWP202410

main68216-0A030iMXGA10,ZVG10..BZP202404-202412

main68216-0A030iMXGA10,ZVG10..BZP202501

main68216-0A030iMXGA10,ZVG10..BZP202201-202403

main68216-0A030iMXGA10,ZVG10..BZP202103-202112

main68216-0A070iZSG10,ZVG10..E..MA202112-202410

main68216-0A070iZSG10,ZVG10..MA202411

main68216-0A070iZSG10..G..MA202112-202411

68610CHECK ASSY, FRONT DOOR

main68610-0A020iZSG10..MAP..G202007-202411

main68610-0A020iZSG10,ZVG10..MA202007-202111

main68610-0A020iZSG10..TH202401-202512

main68610-0A020iZSG10..IDN202007-202212

main68610-0A020iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main68610-0A020iZSG10,ZVG10..MAP..E202007-202410

main68610-0A020iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202401

main68610-0A030iZSG10,ZVG10..TWP202410

main68610-0A030iZSG10,ZVG10..TWP202010-202410

main68610-0A040iMXGA10,ZVG10..BZP202103-202112

main68610-0A040iMXGA10,ZVG10..BZP202501

main68610-0A040iMXGA10,ZVG10..BZP202201-202403

main68610-0A040iMXGA10,ZVG10..BZP202404-202412

main68610-0A080iZSG10,ZVG10..SAP202110-202411

main68610-0A080iZSG10,ZVG10..SAP202411

68610DBOLT, FRONT DOOR CHECK

main90109-08295iMXGA10,ZVG10..BZP¥80202501

main90109-08295iMXGA10,ZVG10..BZP¥80202404-202412

main90109-08295iMXGA10,ZVG10..BZP¥80202103-202112

main90109-08295iMXGA10,ZVG10..BZP¥80202201-202403

main90109-08295iZVG10..SAP,TWP;ZSG10..LHD..(G,N)..GEN;ZSG10..(SAP,TWP)..(E,M);ZSG10..(G,J,N)..(GCC,SA,TAIW)¥80202410

(J)

main90109-08295iZSG10,ZVG10..SAP¥80202010-202411

(J)

main90109-08295iZSG10,ZVG10..TWP¥80202010-202410

(J)

main90109-T0011iZSG10..IDN202007-202212

main90109-T0011iZSG10,ZVG10..MA202007-202111

main90109-T0011iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main90109-T0011iZSG10,ZVG10..MAP..E202007-202410

main90109-T0011iZSG10,ZVG10..TWP202010-202410

(L)

main90109-T0011iZSG10..MAP..G202007-202411

main90109-T0011iZSG10..TH202401-202512

main90109-T0011iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202401

main90109-T0011iZSG10,ZVG10..TWP202410

(L)

main90109-W0017iZSG10,ZVG10..SAP¥60202110-202411

(L)

main90109-W0017iZSG10,ZVG10..SAP¥60202411

(L)

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69911-F4010iZSG10,ZVG10..MA202007-202111

main69911-F4010iZSG10..IDN202007-202212

main69911-F4010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main69911-F4010iZSG10..TH202401-202512

main69911-F4010iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401

69975EFILLER, FRONT DOOR GLASS CHANNEL, NO.1

main69975-0D060iZSG10,ZVG10..MA202007-202111

main69975-0D060iZSG10..IDN202007-202212

main69975-0D060iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main69975-0D060iZSG10,ZVG10..TWP202007-202410

main69975-0D060iZSG10..TH202401-202512

main69975-0D060iZVG10..TWP..N;ZSG10..(G,J)..GCC;ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZVG10..(THP,TWP)..(E,G,L,M);ZSG10..(E,G,M,N)..(TAIW,VN)202401

7503

87963COVER, OUTER MIRROR INSTALL HOLE, RH

main87963-0A010iZSG10..MAP..G202007-202411

main87963-0A010iZSG10,ZVG10..MA202007-202111

main87963-0A010iZSG10..IDN202007-202212

main87963-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main87963-0A010iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202401

main87963-0A010iZSG10..TH202401-202512

main87963-0A010iZSG10,ZVG10..MAP..E202007-202410

main87963-0A020iZSG10,ZVG10..TWP202410

main87963-0A020iZSG10,ZVG10..TWP202010-202410

main87963-0A030iMXGA10,ZVG10..BZP202501

main87963-0A030iMXGA10,ZVG10..BZP202404-202412

main87963-0A030iMXGA10,ZVG10..BZP202201-202403

main87963-0A030iMXGA10,ZVG10..BZP202103-202112

main87963-0A070iZSG10,ZVG10..SAP202110-202411

main87963-0A070iZSG10,ZVG10..SAP202411

87964COVER, OUTER MIRROR INSTALL HOLE, LH

main87964-0A010iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202401

main87964-0A010iZSG10..TH202401-202512

main87964-0A010iZSG10..MAP..G202007-202411

main87964-0A010iZSG10,ZVG10..MAP..E202007-202410

main87964-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main87964-0A010iZSG10..IDN202007-202212

main87964-0A010iZSG10,ZVG10..MA202007-202111

main87964-0A020iZSG10,ZVG10..TWP202010-202410

main87964-0A020iZSG10,ZVG10..TWP202410

main87964-0A030iMXGA10,ZVG10..BZP202501

main87964-0A030iMXGA10,ZVG10..BZP202404-202412

main87964-0A030iMXGA10,ZVG10..BZP202201-202403

main87964-0A030iMXGA10,ZVG10..BZP202103-202112

main87964-0A070iZSG10,ZVG10..SAP202411

main87964-0A070iZSG10,ZVG10..SAP202110-202411

6786947010PLATE, WEATHERSTRIP, CENTER DOOR, UPPER

main67869-47010¥140

9011906983

main90119-06983¥60

90119T0141

main90119-T0141

90119W0037

main90119-W0037¥60

9015150026

main90151-50026¥60

90151T0003

main90151-T0003

9015960303

main90159-60303¥70

90159T0013

main90159-T0013

9018906227

main90189-06227¥70

9046709206

main90467-09206¥80

90467T0019

main90467-T0019

9095001604

main90950-01604¥110

9095001620

main90950-01620¥110

9095001956

main90950-01956¥100

9095001A02

main90950-01A02¥100

9095001A05

main90950-01A05¥100

9095006105

main90950-06105¥110

9095006115

main90950-06115¥110

90950T1004

main90950-T1004

9167380616

main91673-80616¥60

57 parts on this diagram · 2 diagrams in section
