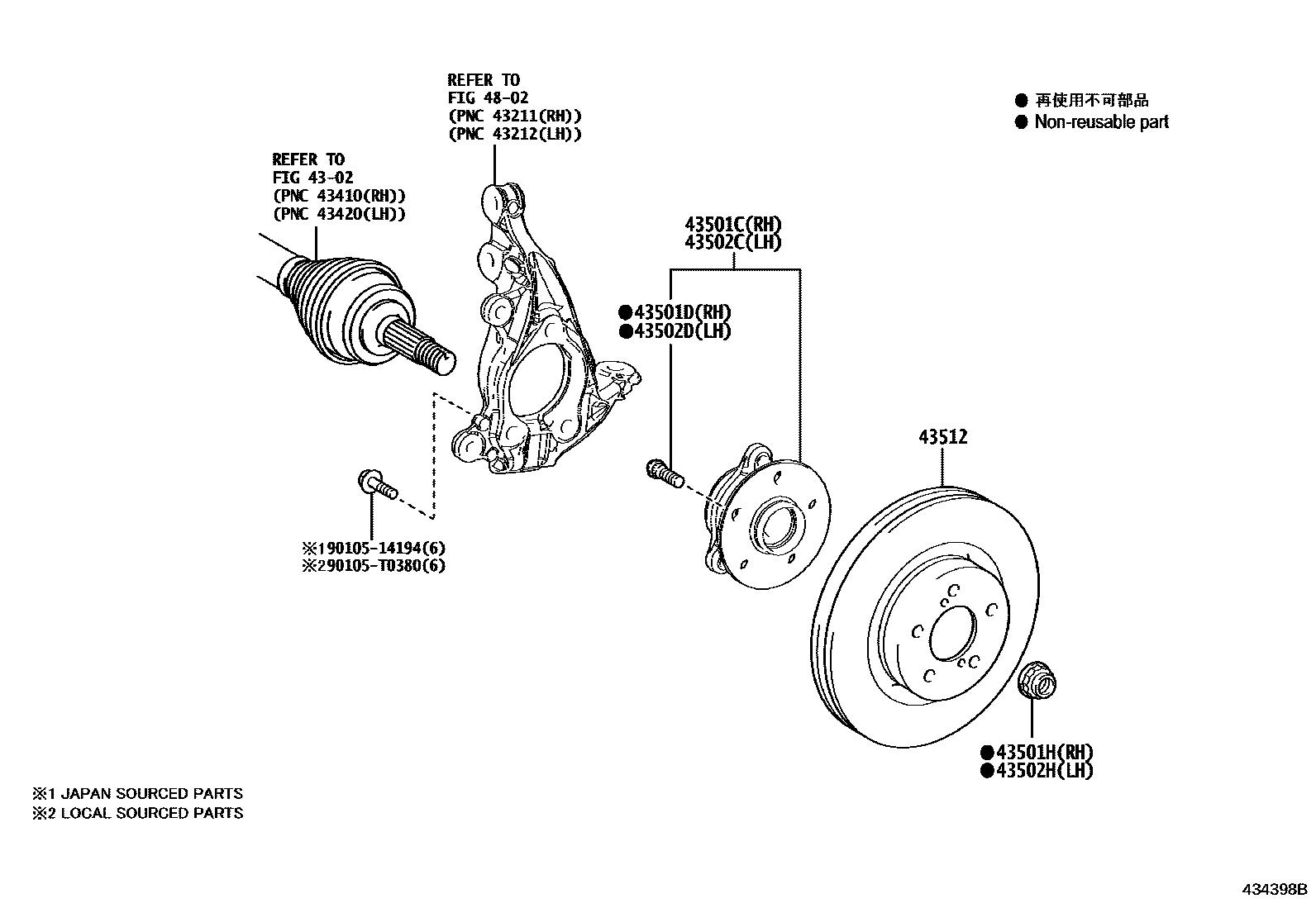

Toyota COROLLA CROSS — FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-0A010iZSG10..TH202401-202512

main43550-0A010iZSG10,ZVG10..MA202007-202111

main43550-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main43550-0A010iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202410

main43550-0A010iZSG10..MAP..G202007-202411

main43550-0A010iZSG10..TWP..G;ZVG10..TWP..N;ZSG10..RHD..THP..GEN;ZSG10..(E,M,N)..(MA,TAIW,VN);ZVG10..(MAP,THP,TWP)..(E,G,L,M,R);ZSG10..LHD..(THP,TWP)..(E,J)..(GCC,GEN)202401

main43550-0A010iZSG10..IDN202007-202212

main43550-0A030iMXGA10,ZVG10..BZP202103-202112

main43550-0A030iMXGA10,ZVG10..BZP202404-202412

main43550-0A030iMXGA10,ZVG10..BZP202501

main43550-0A030iMXGA10,ZVG10..BZP202201-202403

main43550-0A070iZSG10,ZVG10..SAP202411

main43550-0A070iZSG10,ZVG10..SAP202110-202411

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iMXGA10,ZVG10..BZP¥240202501

main90942-02049iZSG10,ZVG10..MA¥240202007-202111

main90942-02049iMXGA10,ZVG10..BZP¥240202007-202112

main90942-02049iZSG10..IDN¥240202007-202212

main90942-02049iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥240202007-202402

main90942-02049iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)¥240202007-202410

main90942-02049iZSG10..MAP..G;ZSG10,ZVG10..SAP¥240202007-202411

main90942-02049iMXGA10,ZVG10..BZP¥240202201-202403

main90942-02049iMXGA10,ZVG10..BZP¥240202401-202412

main90942-02049iZSG10..TH¥240202401-202512

main90942-02049iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP¥240202401

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iZSG10,ZVG10..TWP¥220202010-202410

main90177-22001iMXGA10,ZVG10..BZP¥220202501

main90177-22001iMXGA10,ZVG10..BZP¥220202010-202112

main90177-22001iZSG10,ZVG10..SAP¥220202010-202411

main90177-22001iMXGA10,ZVG10..BZP¥220202201-202403

main90177-22001iMXGA10,ZVG10..BZP¥220202401-202412

main90177-22001iZSG10..TH¥220202401-202512

main90177-22001iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP¥220202401

main90177-T0017iZSG10..MAP..G202007-202411

main90177-T0017iZSG10..IDN202007-202212

main90177-T0017iZSG10,ZVG10..MAP..E202007-202410

main90177-T0017iZSG10,ZVG10..MA202007-202111

main90177-T0017iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-0A010iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)202007-202410

main43550-0A010iZSG10..IDN202007-202212

main43550-0A010iZSG10..TH202401-202512

main43550-0A010iZSG10,ZVG10..MA202007-202111

main43550-0A010iZSG10..MAP..G202007-202411

main43550-0A010iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main43550-0A010iZSG10..TWP..G;ZVG10..TWP..N;ZSG10..RHD..THP..GEN;ZSG10..(E,M,N)..(MA,TAIW,VN);ZVG10..(MAP,THP,TWP)..(E,G,L,M,R);ZSG10..LHD..(THP,TWP)..(E,J)..(GCC,GEN)202401

main43550-0A030iMXGA10,ZVG10..BZP202501

main43550-0A030iMXGA10,ZVG10..BZP202404-202412

main43550-0A030iMXGA10,ZVG10..BZP202201-202403

main43550-0A030iMXGA10,ZVG10..BZP202103-202112

main43550-0A070iZSG10,ZVG10..SAP202110-202411

main43550-0A070iZSG10,ZVG10..SAP202411

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iZSG10,ZVG10..MA¥240202007-202111

main90942-02049iMXGA10,ZVG10..BZP¥240202501

main90942-02049iMXGA10,ZVG10..BZP¥240202007-202112

main90942-02049iZSG10..IDN¥240202007-202212

main90942-02049iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)¥240202007-202402

main90942-02049iZSG10..TWP..G;ZVG10..MAP,TWP;ZSG10..(MAP,TWP)..(E,J,M,N)¥240202007-202410

main90942-02049iZSG10..MAP..G;ZSG10,ZVG10..SAP¥240202007-202411

main90942-02049iMXGA10,ZVG10..BZP¥240202201-202403

main90942-02049iMXGA10,ZVG10..BZP¥240202401-202412

main90942-02049iZSG10..TH¥240202401-202512

main90942-02049iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP¥240202401

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iZSG10,ZVG10..SAP¥220202010-202411

main90177-22001iMXGA10,ZVG10..BZP¥220202501

main90177-22001iMXGA10,ZVG10..BZP¥220202010-202112

main90177-22001iZSG10,ZVG10..TWP¥220202010-202410

main90177-22001iMXGA10,ZVG10..BZP¥220202201-202403

main90177-22001iMXGA10,ZVG10..BZP¥220202401-202412

main90177-22001iZSG10..TH¥220202401-202512

main90177-22001iZSG10..E,M;ZSG10..J..GCC;ZVG10..TWP..N;ZSG10..LHD..SAP..N;ZSG10..(G,N)..(SA,TAIW,VN);ZSG10..RHD..THP..(G,N)..GEN;ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZVG10..(MAP,SAP¥220202401

main90177-T0017iZSG10,ZVG10..MA202007-202111

main90177-T0017iZSG10..IDN202007-202212

main90177-T0017iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main90177-T0017iZSG10,ZVG10..MAP..E202007-202410

main90177-T0017iZSG10..MAP..G202007-202411

43512DISC, FRONT

main43512-06180iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202401

main43512-06180iMXGA10,ZVG10..BZP202501-202511

main43512-06180iZSG10,ZVG10..MA202007-202111

main43512-06180iMXGA10,ZVG10..BZP202007-202112

main43512-06180iZSG10..IDN202007-202212

main43512-06180iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202402

main43512-06180iZSG10,ZVG10..MAP..E202007-202410

main43512-06180iZSG10,ZVG10..TWP202007-202104

main43512-06180iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202411

main43512-06180iMXGA10,ZVG10..BZP202201-202403

main43512-06180iMXGA10,ZVG10..BZP202401-202412

main43512-06180iZSG10..TH202401-202512

main43512-06190iZSG10,ZVG10..TWP202410

main43512-06190iZSG10,ZVG10..TWP202104-202410

4802

9010514194

main90105-14194¥240

90105T0380

main90105-T0380

11 parts on this diagram · 1 diagram in section
