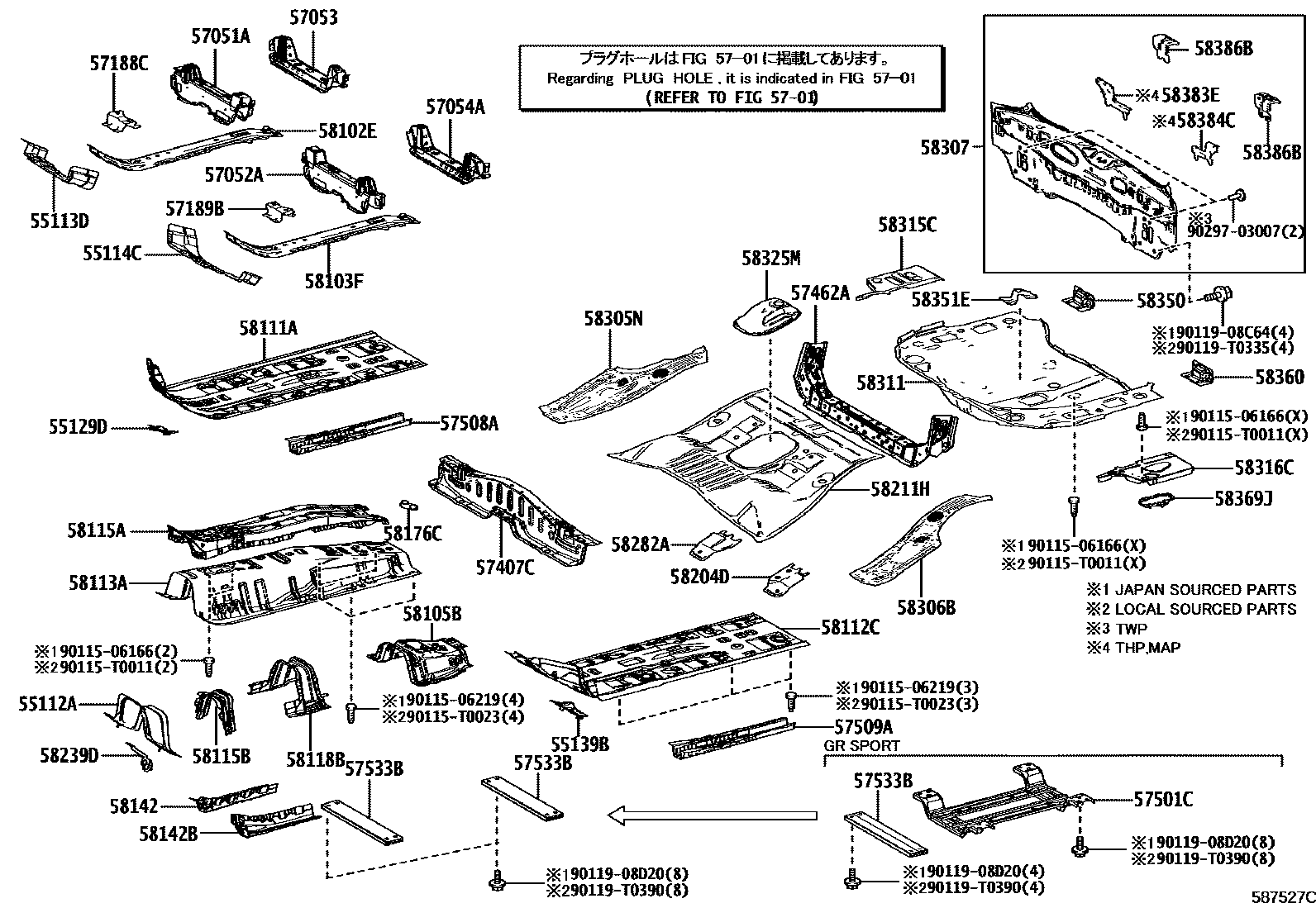

Toyota COROLLA CROSS — FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1

55112APANEL, DASH, NO.2

main55112-02040iZSG10,ZVG10..TWP202010-202410

main55112-02060iMXGA10,ZVG10..BZP202103-202412

main55112-0A030iZSG10..G..MA202112-202411

main55112-47040iZSG10,ZVG10..SAP,THP¥4,110202201-202205

(J)

main55112-F4020iZSG10,ZVG10..MA202007-202512

main55112-F4020iZSG10,ZVG10..SAP,THP202201-202205

(L)

55113DPANEL, DASH, LOWER RH

main55113-02050iZSG10,ZVG10..TWP202010-202410

main55113-02070iMXGA10,ZVG10..BZP202103-202412

main55113-02080iZSG10,ZVG10..MAP..E202007-202512

55114CPANEL, DASH, LOWER LH

main55114-02090iZSG10,ZVG10..TWP202010-202410

main55114-02110iMXGA10,ZVG10..BZP202103-202412

main55114-02120iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

55129DCOVER, DASH PANEL HOLE, RH

main55129-02110iZSG10,ZVG10..TWP202010-202410

main55129-02130iMXGA10,ZVG10..BZP202103-202412

main55129-0A010iZSG10..G..MA202112-202411

main55129-F4020iZSG10,ZVG10..MA202007-202512

55139BCOVER, DASH PANEL HOLE, LH

main55139-02100iZSG10,ZVG10..TWP202010-202410

main55139-02120iMXGA10,ZVG10..BZP202103-202412

main55139-0A010iZSG10,ZVG10..E..MA202112-202411

main55139-F4020iZSG10,ZVG10..MA202007-202512

5701

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0A010iZSG10,ZVG10..TWP202010-202410

main57051-0A020iMXGA10,ZVG10..BZP202103-202412

main57051-0A040iZSG10,ZVG10..SAP202110-202411

main57051-F4020iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202007-202512

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-0A010iZSG10,ZVG10..TWP202010-202410

main57052-0A020iMXGA10,ZVG10..BZP202103-202412

main57052-0A040iZSG10,ZVG10..SAP202110-202411

main57052-F4020iZSG10..TH202007-202512

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-0A010iZSG10,ZVG10..TWP202010-202410

main57053-0A020iMXGA10,ZVG10..BZP202103-202412

main57053-0A060iZSG10,ZVG10..SAP202110-202411

main57053-0A070iZSG10,ZVG10..MA202112-202411

main57053-F4020iZSG10..TH202007-202512

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-0A010iZSG10,ZVG10..TWP202010-202410

main57054-0A020iMXGA10,ZVG10..BZP202103-202412

main57054-0A060iZSG10,ZVG10..SAP202110-202411

main57054-0A070iZSG10,ZVG10..MA202112-202411

main57054-F4020iZSG10,ZVG10..MA202007-202512

57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH

main57188-02090iZSG10,ZVG10..TWP202010-202410

main57188-02110iMXGA10,ZVG10..BZP202103-202412

main57188-02120iZSG10..IDN202007-202512

57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH

main57189-02070iZSG10,ZVG10..TWP202010-202410

main57189-02090iMXGA10,ZVG10..BZP202103-202412

main57189-02100iZSG10,ZVG10..MAP..E202007-202512

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-02260iZVG10..TWP202010-202410

main57407-02271iZSG10..TWP202010-202410

main57407-02290iZVG10..BZP202103-202412

main57407-02301iMXGA10202103-202412

main57407-02330iZVG10..MAP,THP202007-202410

main57407-02341iZSG10..MAP..E202007-202512

main57407-0A030iZSG10..SAP202110-202411

main57407-0A040iZVG10..SA202110-202411

57462AMEMBER, CENTER FLOOR CROSS, NO.2

main57405-02050iZSG10,ZVG10..TWP202010-202410

main57405-02070iMXGA10,ZVG10..BZP202103-202412

main57405-02081iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

main57405-0A020iZSG10,ZVG10..SAP202110-202411

57501CBRACE SUB-ASSY, FRONT FLOOR, CENTER

main57501-0A010iZSG10,ZVG10..L,M202211-202410

main57501-10020iZVG10..R¥7,900202411

GR SPORT

main57501-10020iZSG10,ZVG10..L,M¥7,900202108-202210

57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main57508-0A010iZSG10,ZVG10..TWP202010-202410

main57508-0A020iMXGA10,ZVG10..BZP202103-202412

main57508-0A040iZSG10..G..MA202112-202411

main57508-F4021iZSG10..IDN¥4,620202007-202512

57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main57508-0A010iZSG10,ZVG10..TWP202010-202410

main57508-0A020iMXGA10,ZVG10..BZP202103-202412

main57508-0A040iZSG10,ZVG10..MA202112-202411

main57508-F4021iZSG10,ZVG10..SAP¥4,620202007-202512

57533BBRACE, FRONT FLOOR, CENTER

main57533-02120iMXGA10,ZVG10..BZP202103-202403

main57533-02120iMXGA10..E202404-202412

GR SPORT

main57533-02180iZSG10..TWP..G;ZSG10..(MAP,TWP)..(E,J,N);ZVG10..(MAP,TWP)..(E,G,N)202010-202411

main57533-0A020iZSG10,ZVG10..SAP202110-202411

main57533-0A020iZSG10..SAP..G..GEN;ZSG10,ZVG10..SAP..E202411

GR SPORT

main57533-F4030iZSG10..IDN202007-202402

main57533-F4030iZVG10..IDN;ZVG10..E..(PH,TH)202401

GR SPORT

58102EREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH

main58102-02250iZSG10,ZVG10..TWP202010-202410

main58102-02270iMXGA10,ZVG10..BZP202103-202412

main58102-02280iZSG10,ZVG10..MAP..E202007-202512

58103FREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH

main58102-02250iZSG10,ZVG10..TWP202010-202410

main58102-02270iMXGA10,ZVG10..BZP202103-202412

main58102-02280iZSG10,ZVG10..MAP..E202007-202512

58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB

main58105-0A010iZSG10,ZVG10..TWP202010-202410

main58105-0A020iMXGA10,ZVG10..BZP202103-202412

main58105-0A050iZSG10,ZVG10..MA202112-202411

main58105-F4040iZSG10,ZVG10..THP202007-202011

sub58105-F4041

main58105-F4041iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202011-202512

58111APAN, FRONT FLOOR, RH

main58111-0A040iMXGA10,ZVG10..BZP202103-202412

main58111-10201iZSG10,ZVG10..TWP¥15,800202010-202104

sub58111-10210¥14,400

main58111-10210iZSG10,ZVG10..TWP¥14,400202105-202410

main58111-F4020iZSG10,ZVG10..MA202007-202408

sub58111-F4021

main58111-F4021iZSG10..E;ZSG10..(G,N)..SA;ZVG10..MAP,SAP,THP;ZSG10..LHD..(G,N)..GEN;ZSG10..THP..(G,N)..(GEN,VN)202310-202512

58112CPAN, FRONT FLOOR, LH

main58112-0A020iMXGA10,ZVG10..BZP202103-202412

main58112-10041iZSG10,ZVG10..TWP¥15,800202010-202104

sub58112-10050¥14,400

main58112-10050iZSG10,ZVG10..TWP¥14,400202105-202410

main58112-F4020iZSG10..VN;ZSG10..RHD..THP;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN202007-202408

sub58112-F4021

main58112-F4021iZSG10..TH202310-202512

58113APANEL, FRONT FLOOR, CENTER

main58113-0A030iZSG10,ZVG10..MA202007-202411

main58113-0A040iZSG10,ZVG10..TWP202010-202410

main58113-0A050iMXGA10,ZVG10..BZP202103-202403

main58113-0A060iZSG10,ZVG10..TWP202410

main58113-0A070iMXGA10,ZVG10..BZP202404-202412

main58113-0A080iZSG10,ZVG10..MAP,SAP202411

main58113-F4030iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202401-202512

58115AREINFORCEMENT, FRONT FLOOR PANEL

main58115-0A030iZSG10,ZVG10..SAP202007-202411

main58115-0A040iZSG10,ZVG10..TWP202010-202410

main58115-0A050iMXGA10,ZVG10..BZP202103-202412

main58115-0A060iZSG10,ZVG10..E..MA202112-202411

main58115-F4030iZSG10..TH202401-202512

58115BPANEL, FRONT FLOOR, REAR

main58117-02070iZSG10,ZVG10..TWP202010-202410

main58117-02070iZSG10,ZVG10..TWP202410

(L)

main58117-02090iMXGA10,ZVG10..BZP202202-202412

(L)

main58117-02090iMXGA10,ZVG10..BZP202103-202202

main58117-0A030iZSG10..G..MA202112-202411

main58117-0A030iZSG10,ZVG10..MA202411

(L)

main58117-47040iMXGA10,ZVG10..BZP¥1,400202202-202412

(J)

main58117-F4020iZSG10,ZVG10..THP202007-202011

sub58117-F4021

main58117-F4021iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202011-202512

58118BREINFORCEMENT, FRONT FLOOR PANEL, NO.2

main58118-02110iZSG10,ZVG10..TWP202010-202410

main58118-02130iMXGA10,ZVG10..BZP202103-202412

main58118-0A030iZSG10,ZVG10..E..MA202112-202411

main58118-F4020iZSG10,ZVG10..MA202007-202512

58142REINFORCEMENT, FLOOR SIDE MEMBER TO FLOOR PAN

main58141-02090iZSG10,ZVG10..TWP202010-202410

main58141-02120iMXGA10,ZVG10..BZP202007-202512

main58141-0A030iZSG10,ZVG10..E..MA202112-202411

58142BREINFORCEMNET, FRONT SIDE MEMBER TO FLOOR PAN, LH

main58142-02100iZSG10,ZVG10..TWP202010-202410

main58142-02130iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202512

main58142-0A030iZSG10..G..MA202112-202411

58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2

main58176-02080iZVG10..E..PH;ZSG10..THP..(GEN,PH,TH,VN);ZVG10..THP..(GEN,IDN,TH,VN)202007-202411

main58176-02090iZSG10,ZVG10..TWP202010-202410

main58176-02110iMXGA10,ZVG10..BZP202103-202403

58204DBRACKET SUB-ASSY, REAR SEAT HINGE, OUTER LH

main58204-0A010iZSG10..TH202007-202512

main58204-0A020iZSG10,ZVG10..TWP202010-202410

main58204-0A030iMXGA10,ZVG10..BZP202103-202412

58211HPAN, CENTER FLOOR

main58211-0A070iZSG10..IDN202007-202512

main58211-0A080iZVG10..MA202007-202206

sub58211-0A081

main58211-0A081iZVG10..MA202206-202411

sub58211-0A082

sub90333-25003¥70

main58211-0A082iZVG10..MAP,SAP,THP202405

main58211-0A091iZSG10..TWP202010-202410

main58211-0A101iZVG10..TWP202010-202209

main58211-0A102iZVG10..TWP202209-202410

main58211-0A103iZVG10..TWP202410

main58211-0A110iMXGA10202103-202412

main58211-0A120iZVG10..BZP202103-202207

sub58211-0A121

main58211-0A121iZVG10..BZP202207-202412

main58211-0A130iZSG10..SAP202110-202411

58239DBRACKET, CABLE CLAMP

main58239-02060iZSG10,ZVG10..TWP202010-202410

main58239-02080iMXGA10,ZVG10..BZP202103-202412

main58239-F4020iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH

main58282-0A060iZSG10,ZVG10..MAP..E202007-202512

main58282-0A070iZSG10,ZVG10..TWP202010-202410

main58282-0A080iMXGA10,ZVG10..BZP202103-202412

58305NEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, RH

main58305-02120iZVG10..TWP202010-202410

main58305-02130iZSG10..TWP202010-202410

main58305-02170iZVG10..BZP202103-202412

main58305-02180iMXGA10202103-202412

main58305-02220iZSG10..THP..(GEN,PH,TH,VN)202007-202512

main58305-02230iZVG10..SA202007-202411

58306BEXTENSION SUB-ASSY, REAR FLOOR TO QUARTER, LH

main58306-02131iZVG10..TWP202010-202402

sub58306-02132

sub90950-01960¥120

main58306-02132iZVG10..TWP202402-202410

main58306-02140iZSG10..TWP202010-202410

main58306-02181iZVG10..BZP202103-202412

main58306-02190iMXGA10202103-202412

main58306-02230iZSG10..MA202007-202512

main58306-02241iZVG10..MA202007-202402

sub58306-02242

sub90950-01960¥120

main58306-02242iZVG10..SA202402-202411

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0A020iZSG10..VN;ZVG10..THP..(E,G);ZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN202007-202512

main58307-0A030iZSG10,ZVG10..TWP202010-202410

main58307-0A040iMXGA10,ZVG10..BZP202103-202412

main58307-0A080iZSG10,ZVG10..SAP202110-202411

main58307-0A090iZSG10..G..MA202112-202411

58311PAN, REAR FLOOR

main58311-0A060iZSG10,ZVG10..MAP..E202007-202512

main58311-0A070iZSG10,ZVG10..TWP202010-202410

main58311-0A080iMXGA10,ZVG10..BZP202103-202412

main58311-0A090iZSG10,ZVG10..SAP202110-202411

58315CEXTENSION, REAR FLOOR SIDE PANEL, RH

main58315-0A050iZSG10,ZVG10..MAP..E202007-202512

main58315-0A060iZSG10,ZVG10..TWP202010-202410

main58315-0A070iMXGA10,ZVG10..BZP202103-202412

main58315-0A100iZSG10,ZVG10..SAP202110-202411

58316CEXTENSION, REAR FLOOR SIDE PANEL, LH

main58316-0A050iZSG10..IDN202007-202512

main58316-0A060iZSG10,ZVG10..TWP202010-202410

main58316-0A070iMXGA10,ZVG10..BZP202103-202412

main58316-0A080iZSG10,ZVG10..SAP202110-202411

58325MCOVER, REAR FLOOR SERVICE HOLE, NO.1

main58325-0A070iZSG10..TH202007-202512

main58325-0A080iZVG10..BZP202007-202412

main58325-0A090iZSG10..TWP202010-202410

main58325-0A100iZVG10..TWP202010-202410

main58325-0A110iMXGA10202103-202412

main58325-0A120iZSG10..G..MA202112-202411

58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH

main58350-02040iZSG10,ZVG10..TWP202010-202410

main58350-02060iMXGA10,ZVG10..BZP202103-202412

main58350-F4020iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202007-202512

58351EBRACKET, SPARE WHEEL CLAMP

main58351-02070iZSG10..TH202007-202512

main58351-02080iZSG10,ZVG10..TWP202010-202410

main58351-02100iMXGA10,ZVG10..BZP202103-202202

main58351-02100iMXGA10,ZVG10..BZP202202-202412

(L)

main58351-12070iMXGA10,ZVG10..BZP¥480202202-202412

(J)

58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH

main58350-02040iZSG10,ZVG10..TWP202010-202410

main58350-02060iMXGA10,ZVG10..BZP202103-202412

main58350-F4020iZSG10..MAP..G;ZSG10,ZVG10..SAP202007-202512

58369JBRACKET, REAR FLOOR BRACE

main58369-0A010iMXGA10,ZVG10..BZ202501

PARAGUAY SPEC&ENGINE-2ZR-FXB

main58369-0A010iMXGA10,ZVG10..BZ202404-202412

PARAGUAY SPEC&ENGINE-M20A-FKB

58383EREINFORCEMENT, BODY LOWER BACK, NO.2 RH

main58383-K1010iZSG10..IDN202007-202512

58384CREINFORCEMENT, BODY LOWER BACK, NO.2 LH

main58384-K1010iZSG10,ZVG10..MA202007-202512

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02120iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202007-202512

main58386-0D070iZSG10,ZVG10..TWP202010-202410

main58386-0D190iMXGA10,ZVG10..BZP202103-202412

9011506166

main90115-06166¥90

9011506219

main90115-06219¥80

90115T0011

main90115-T0011

90115T0023

main90115-T0023

9011908C64

main90119-08C64¥90

9011908D20

main90119-08D20¥80

90119T0335

main90119-T0335

90119T0390

main90119-T0390

9029703007

main90297-03007¥60

57 parts on this diagram · 2 diagrams in section
