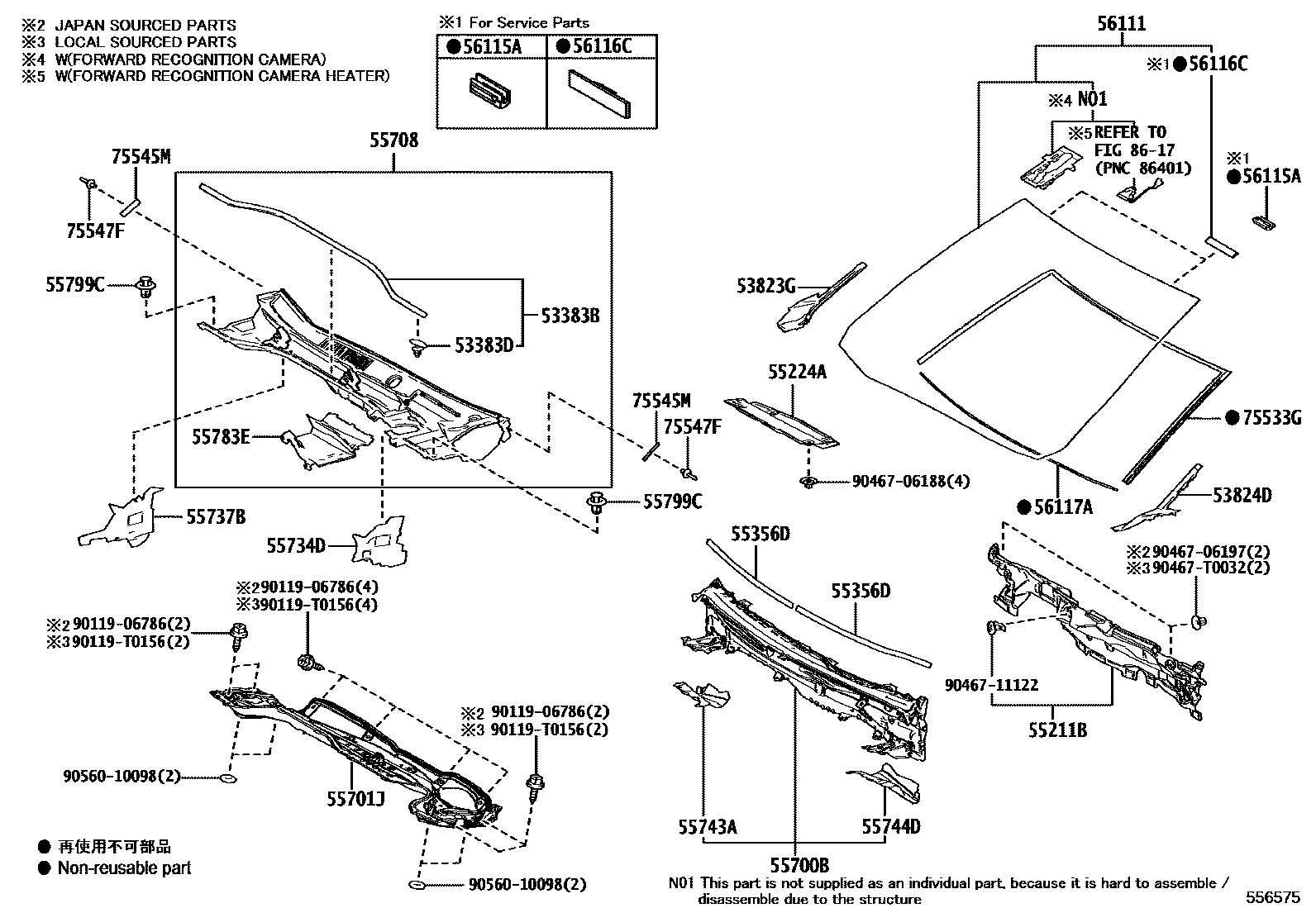

Toyota COROLLA CROSS — COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53823GPROTECTOR, FRONT SIDE PANEL, NO.2 RH
53824DPROTECTOR, FRONT SIDE PANEL, NO.2 LH
main53824-0A010iZSG10..LHD..E..GEN;ZSG10..RHD..THP..GEN;ZSG10..(E,N)..(MA,VN);ZVG10..(MAP,THP)..(E,G,R)202007-202512
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
main55700-K1020iZSG10..(G,J)..GCC;ZSG10..LHD..E..GEN;ZVG10..LHD..(THP,TWP);ZSG10..(E,G,M,N)..(TAIW,VN)202007-202412
55701JPANEL SUB-ASSY, COWL TOP, OUTER
main55701-0A040iZSG10..LHD..SAP..N;ZVG10..LHD..(THP,TWP);ZSG10..(E,G,M,N)..(TAIW,VN);ZSG10..LHD..(SAP,TWP)..G..(GCC,GEN);ZSG10..LHD..(THP,TWP)..(E,J)..(GCC,GEN)202007-202411
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
55734DPLATE, WATER GUARD
main55734-0A010iZSG10..E;ZSG10..(G,N)..(SA,VN);ZSG10..LHD..SAP..(G,N);ZSG10..RHD..THP..(G,N)..GEN;ZVG10..(MAP,SAP,THP)..(E,G,R)202007-202512
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55743AEXTENSION, COWL TO COWL SIDE, RH
55744DEXTENSION, COWL TO COWL SIDE, LH
55783ELOUVER, COWL TOP VENTILATOR, CENTER
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
sub56101-0A931
ACTIVE SAFETY PACKAGE-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
sub56101-0A932
UP GRADE PACKAGE&ACTIVE SAFETY PACKAGE-WITH
PARAGUAY SPEC&ACTIVE SAFETY PACKAGE-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&AUDIO-AVN(8INCH) & 6SPEAKER
PARAGUAY SPEC&ACTIVE SAFETY PACKAGE-WITH&AUDIO-AVN(8INCH) & 6SPEAKER
URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&AUDIO-AVN(8INCH) & 6SPEAKER
URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITH&AUDIO-AVN(8INCH) & 6SPEAKER
COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&AUDIO-AVN(8INCH) & 6SPEAKER
COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITH&AUDIO-AVN(8INCH) & 6SPEAKER
ACTIVE SAFETY PACKAGE-WITHOUT
PARAGUAY SPEC&AUDIO-AVN(8INCH) & 6SPEAKER
URUGUAY SPEC&AUDIO-AVN(8INCH) & 6SPEAKER
COSTA RICA SPEC&AUDIO-AVN(8INCH) & 6SPEAKER
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
sub56101-0A934
UP GRADE PACKAGE&ACTIVE SAFETY PACKAGE-WITHOUT
sub56101-0A934
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH
PARAGUAY SPEC&ACTIVE SAFETY PACKAGE-WITH
UP GRADE PACKAGE
ACTIVE SAFETY PACKAGE-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
GR SPORT
PARAGUAY SPEC&ACTIVE SAFETY PACKAGE-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
ACTIVE SAFETY PACKAGE-WITH
ACTIVE SAFETY PACKAGE-WITH&WIND SHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
ACTIVE SAFETY PACKAGE-WITHOUT
PARAGUAY SPEC
ACTIVE SAFETY PACKAGE-WITHOUT
GR SPORT&ACTIVE SAFETY PACKAGE-WITHOUT
UP GRADE PACKAGE&ACTIVE SAFETY PACKAGE-WITHOUT
WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
ACTIVE SAFETY PACKAGE-WITH
*D,L=1314,URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&AUDIO-AVN(8INCH) & 6SPEAKER
*D,L=1314,PARAGUAY SPEC&ACTIVE SAFETY PACKAGE-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&AUDIO-AVN(8INCH) & 6SPEAKER
*D,L=1314,PARAGUAY SPEC&ACTIVE SAFETY PACKAGE-WITH&AUDIO-AVN(8INCH) & 6SPEAKER
*D,L=1314,PARAGUAY SPEC&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&AUDIO-AVN(8INCH) & 6SPEAKER
*D,L=1314,PARAGUAY SPEC&AUDIO-AVN(8INCH) & 6SPEAKER
*D,L=1314,URUGUAY SPEC&ACTIVE SAFETY PACKAGE-WITH&AUDIO-AVN(8INCH) & 6SPEAKER
*D,L=1314,URUGUAY SPEC&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&AUDIO-AVN(8INCH)& 6SPEAKER
*D,L=1314,URUGUAY SPEC&AUDIO-AVN(8INCH) & 6SPEAKER
*D,L=1314,COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&AUDIO-AVN(8INCH) & 6SPEAKER
*D,L=1314,COSTA RICA SPEC&ACTIVE SAFETY PACKAGE-WITH&AUDIO-AVN(8INCH) & 6SPEAKER
*D,L=1314,COSTA RICA SPEC&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)&AUDIO-AVN(8INCH) & 6SPEAKER
*D,L=1314,COSTA RICA SPEC&AUDIO-AVN(8INCH) & 6SPEAKER
*D,L=1314,UP GRADE PACKAGE&ACTIVE SAFETY PACKAGE-WITH
*D,L=1314,ACTIVE SAFETY PACKAGE-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314,ACTIVE SAFETY PACKAGE-WITHOUT
*D,L=1314,WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314,ACTIVE SAFETY PACKAGE-WITH
*D,L=1314,JORDAN SPEC&ACTIVE SAFETY PACKAGE-WITH
*D,L=1314,PARAGUAY SPEC&ACTIVE SAFETY PACKAGE-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314,PARAGUAY SPEC&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314,UP GRADE PACKAGE
*D,L=1314,GR SPORT
*D,L=1314,ACTIVE SAFETY PACKAGE-WITH
*D,L=1314,ACTIVE SAFETY PACKAGE-WITH&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314,WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314
*D,L=1314,PARAGUAY SPEC
*D,L=1314,PARAGUAY SPEC&ACTIVE SAFETY PACKAGE-WITH
*D,L=1314,ACTIVE SAFETY PACKAGE-WITHOUT
*D,L=1314,UP GRADE PACKAGE&ACTIVE SAFETY PACKAGE-WITHOUT
*D,L=1314,ACTIVE SAFETY PACKAGE-WITH&WIND SHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314,WIND SHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=1314,LEBANON SPEC&ACTIVE SAFETY PACKAGE-WITH
*D,L=1314,SAUDI ARABIA SPEC&ACTIVE SAFETY PACKAGE-WITH&ANTENNA-WITH(SHARK FIN & DAB)
*D,L=1314,BAHRAIN SPEC&ACTIVE SAFETY PACKAGE-WITH
*D,L=1314,OMAN SPEC&ACTIVE SAFETY PACKAGE-WITH
75533GMOULDING, WINDSHIELD, OUTSIDE
75545MCLIP, WINDSHIELD OUTSIDE MOULDING
75547FCLIP, WINDSHIELD OUTSIDE MOULDING
8617
9011906786
90119T0156
9046706188
9046706197
9046711122
90467T0032
main90467-T0032
9056010098
31 parts on this diagram · 5 diagrams in section
