Toyota COROLLA CROSS — BATTERY & BATTERY CABLE

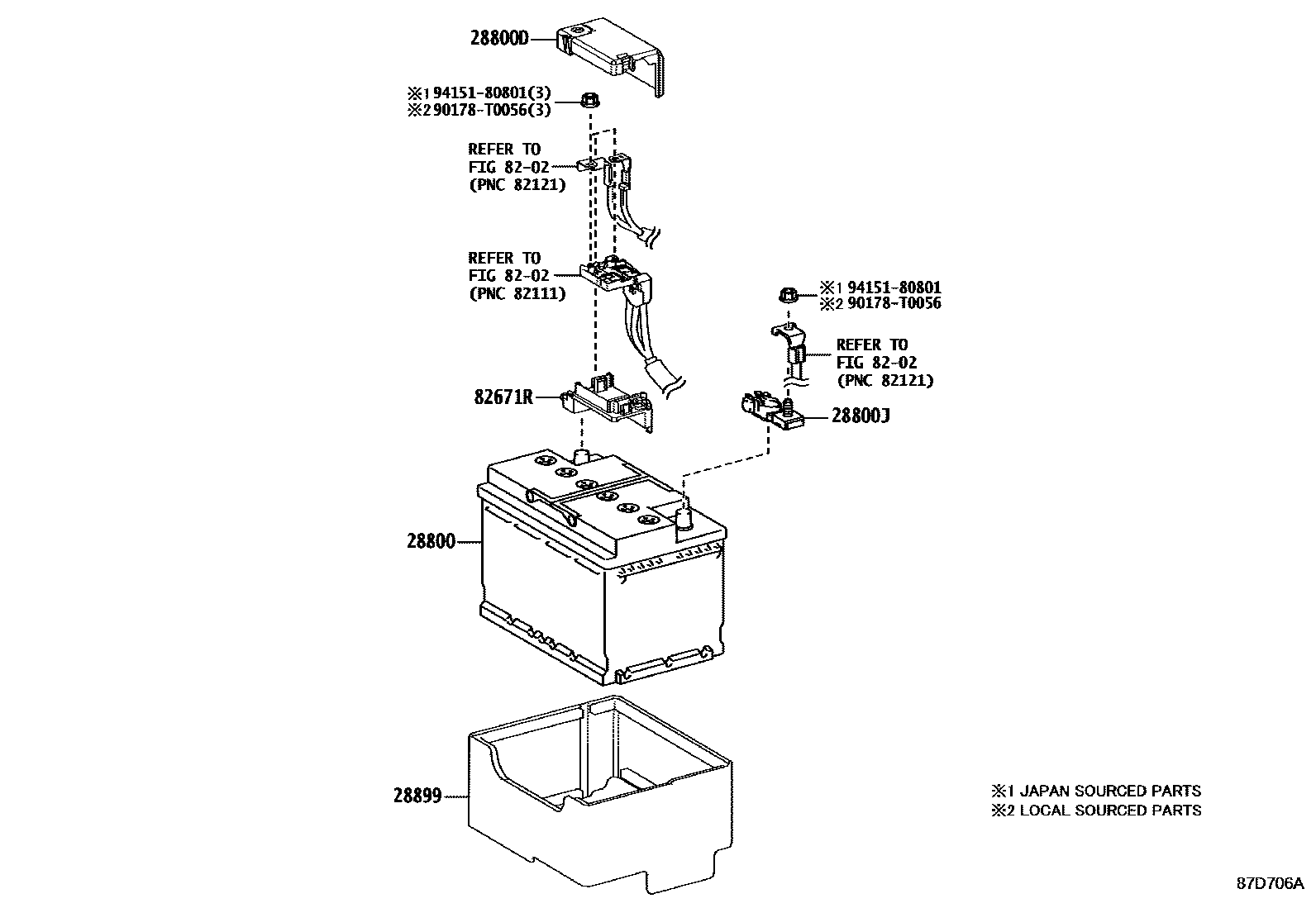

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0007 1HV BATTERY 0011 1HV BATTERY 0015 1HV BATTERY 0017 1HV BATTERY 0019 1HV BATTERY

28800BATTERY

main28800-0C210i2ZRFXE..ZVG10..THP..(GEN,IDN,PH,TH,VN)202007-202211

LN0

sub28800-0C211

main28800-0C211i2ZRFXE..ZVG10..E..PH;2ZRFXE..ZVG10..THP..(GEN,IDN,TH,VN)202212-202402

LN0

main28800-0D442iM20AFKS,2ZRFXE..MXGA10,ZVG10..BZP202103-202412

LN1

main28800-0T131i2ZRFE,2ZRFXE..ZSG10,ZVG10..MA202007-202211

LN1

sub28800-0T132

main28800-0T132i2ZRFE..ZSG10..VN;2ZRFE..ZSG10..LHD..E..GEN;2ZRFBE,2ZRFE..ZSG10..RHD..THP202212-202402

LN1

main28800-0T330i2ZRFE,2ZRFXE..ZSG10,ZVG10..E..MA202112-202411

LN1

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82621-10010i2ZRFBE,2ZRFE..ZSG10..THP..(GEN,PH,TH,VN)¥1,200202007-202512

main82621-12040iM20AFKS..MXGA10¥1,200202103-202412

main82621-47020i2ZRFXE..ZVG10..SA¥730202007-202412

28800JTERMINAL, BATTERY NEGATIVE

main90982-06070iM20AFKS..MXGA10¥850202007-202412

28899INSULATOR, BATTERY

main28899-0T020i2ZRFXE..ZVG10..MA202007-202103

sub28899-0T120

main28899-0T040i2ZRFBE,2ZRFE..ZSG10..THP202007-202103

sub28899-0T140

main28899-0T070i2ZRFE..ZSG10..GCC202010-202410

main28899-0T100i2ZRFXE..ZVG10..GEN,IDN,PH,TH,VN202007-202103

sub28899-0T150

main28899-0T120i2ZRFXE..ZVG10..MA202103-202410

main28899-0T140i2ZRFE..ZSG10..IDN202103-202512

main28899-0T150i2ZRFXE..ZVG10..E..PH;2ZRFXE..ZVG10..THP..(GEN,IDN,TH,VN)202103-202402

8202

82671RSTOPPER, BATTERY TERMINAL

main82651-10010iMXGA10¥2,000202007-202512

main82671-47040iZVG10..BZP¥490202007-202412

90178T0056

main90178-T0056

9415180801

main94151-80801¥80

8 parts on this diagram · 8 diagrams in section
