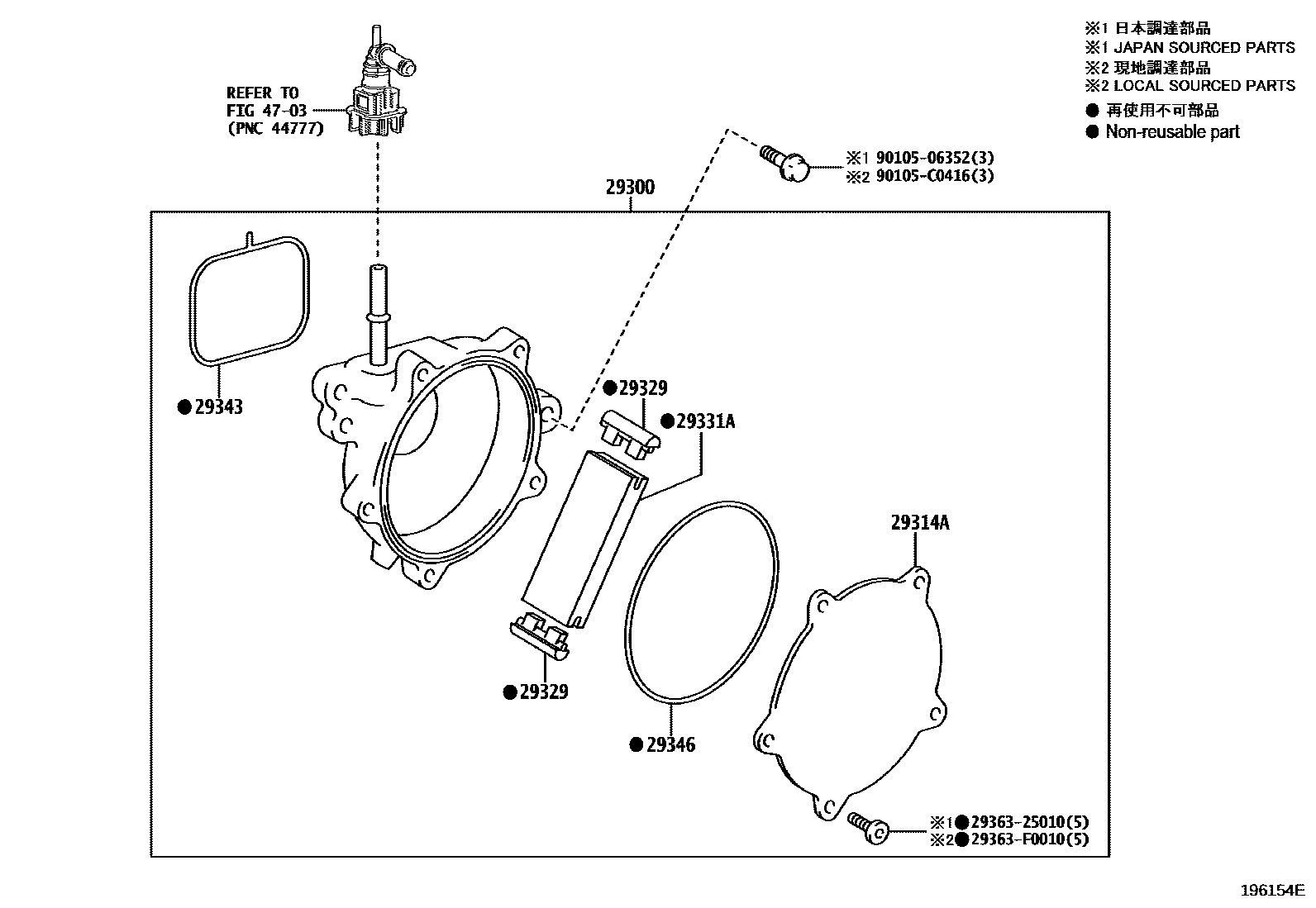

Toyota COROLLA CROSS (TFTM) — VACUUM PUMP

29300PUMP ASSY, VACUUM

main29300-F2041iM20..MXGA10202201-202304

BOSCH

main29300-F2041iM20..MXGA10202304

BOSCH

29314ACOVER, END

main29314-25010iM20..MXGA10¥900202202-202304

TAIHO

main29314-25010iM20..MXGA10¥900202304

TAIHO

main29314-F0010iM20..MXGA10202304

TAIHO

29329CAP, VACUUM PUMP VANE

main29329-25011iM20..MXGA10¥900202202-202304

TAIHO

main29329-25011iM20..MXGA10¥900202304

TAIHO

main29329-F0011iM20..MXGA10202304

TAIHO

29331AVANE, VACUUM PUMP

main29331-37010iM20..MXGA10¥590202202-202304

TAIHO

main29331-37010iM20..MXGA10¥590202304

TAIHO

main29331-F0010iM20..MXGA10202304

TAIHO

29343RING, O VACUUM PUMP, NO.1

main29343-25010iM20..MXGA10¥340202202-202304

TAIHO

main29343-25010iM20..MXGA10¥340202304

TAIHO

main29343-F0010iM20..MXGA10202304

TAIHO

main29343-F2030iM20..MXGA10202304

BOSCH

29346RING, O VACUUM PUMP COVER

main29346-25010iM20..MXGA10¥340202202-202304

TAIHO

main29346-25010iM20..MXGA10¥340202304

TAIHO

main29346-F0010iM20..MXGA10202304

TAIHO

4703

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010¥200

29363F0010SCREW, HOLLOW VACUUM PUMP

main29363-F0010

9010506352

main90105-06352¥60

90105C0416

main90105-C0416

11 parts on this diagram · 1 diagram in section
