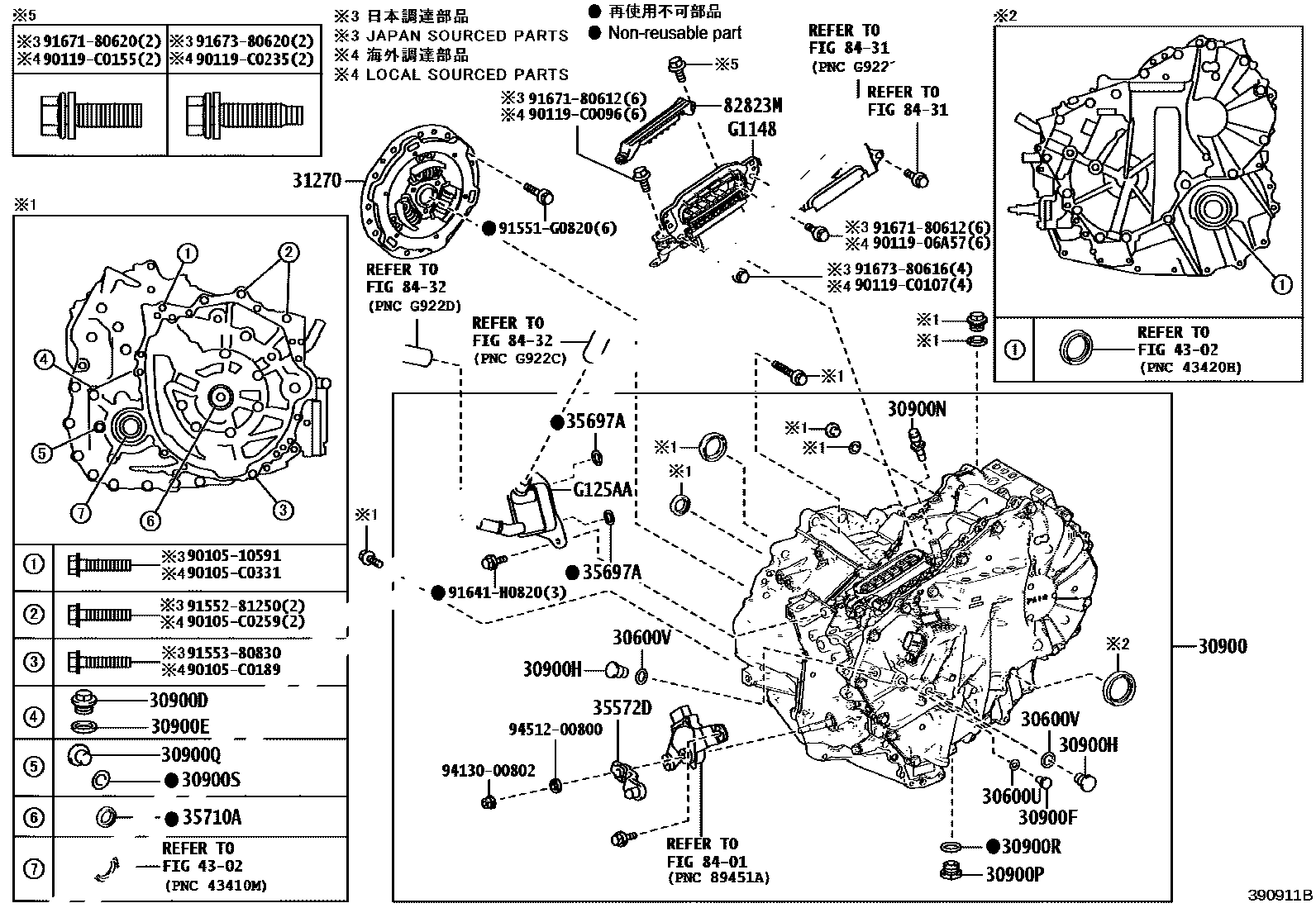

Toyota COROLLA CROSS (TFTM) — TRANSAXLE ASSY(HEV OR BEV OR FCEV)

30600UO RING, TRANSAXLE CASE, NO.2

main90301-C0061iMXGH10202307

30600VO RING, TRANSAXLE CASE, NO.3

main90301-15004iMXGH10¥160202307

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-0A010iMXGH10202307-202409

sub30900-0A011

main30900-0A011iMXGH10202410

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iMXGH10¥240202307

(J)

main90341-C0022iMXGH10202307

(L)

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iMXGH10¥110202307

30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)

main90341-08001iMXGH10¥120202307

30900HPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE)

main90341-18020iMXGH10¥310202307

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iMXGH10¥120202307

30900PPLUG, DRAIN(HEV)

main90341-18016iMXGH10¥190202307

30900QPLUG, FILLER(HEV)

main90341-18090iMXGH10¥190202307

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iMXGH10¥110202307

(J)

main90430-C0007iMXGH10202307

(L)

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iMXGH10¥110202307

(J)

main90430-C0007iMXGH10202307

(L)

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-0A010iMXGH10202307

35572DLEVER, TRANSMISSION CONTROL SHAFT

main35572-0A010iMXGH10202312

(L)

main35572-63020iMXGH10202307-202312

main35572-63020iMXGH10202312

(J)

35697ARING, TRANSAXLE OIL SEAL

main35697-0A010iMXGH10202307

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-C0063iMXGH10202307

4302

82823MCAP, TERMINAL

main82823-02050iMXGH10202307

8401

8431

8432

G1148CABLE, MOTOR

mainG11480A010iMXGH10202307-202409

subG1148-0A011

mainG11480A011iMXGH10202410

G125AACOOLER, MOTOR COOLING

mainG125A0A010iMXGH10202307

9010510591

main90105-10591¥120

90105C0189

main90105-C0189

90105C0259

main90105-C0259

90105C0331

main90105-C0331

9011906A57

main90119-06A57¥60

90119C0096

main90119-C0096

90119C0107

main90119-C0107

90119C0155

main90119-C0155

90119C0235

main90119-C0235

91551G0820

main91551-G0820¥80

9155281250

main91552-81250¥190

9155380830

main91553-80830¥80

91641H0820

main91641-H0820¥90

9167180612

main91671-80612¥60

9167180620

main91671-80620¥60

9167380616

main91673-80616¥60

9167380620

main91673-80620¥60

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

42 parts on this diagram · 1 diagram in section
