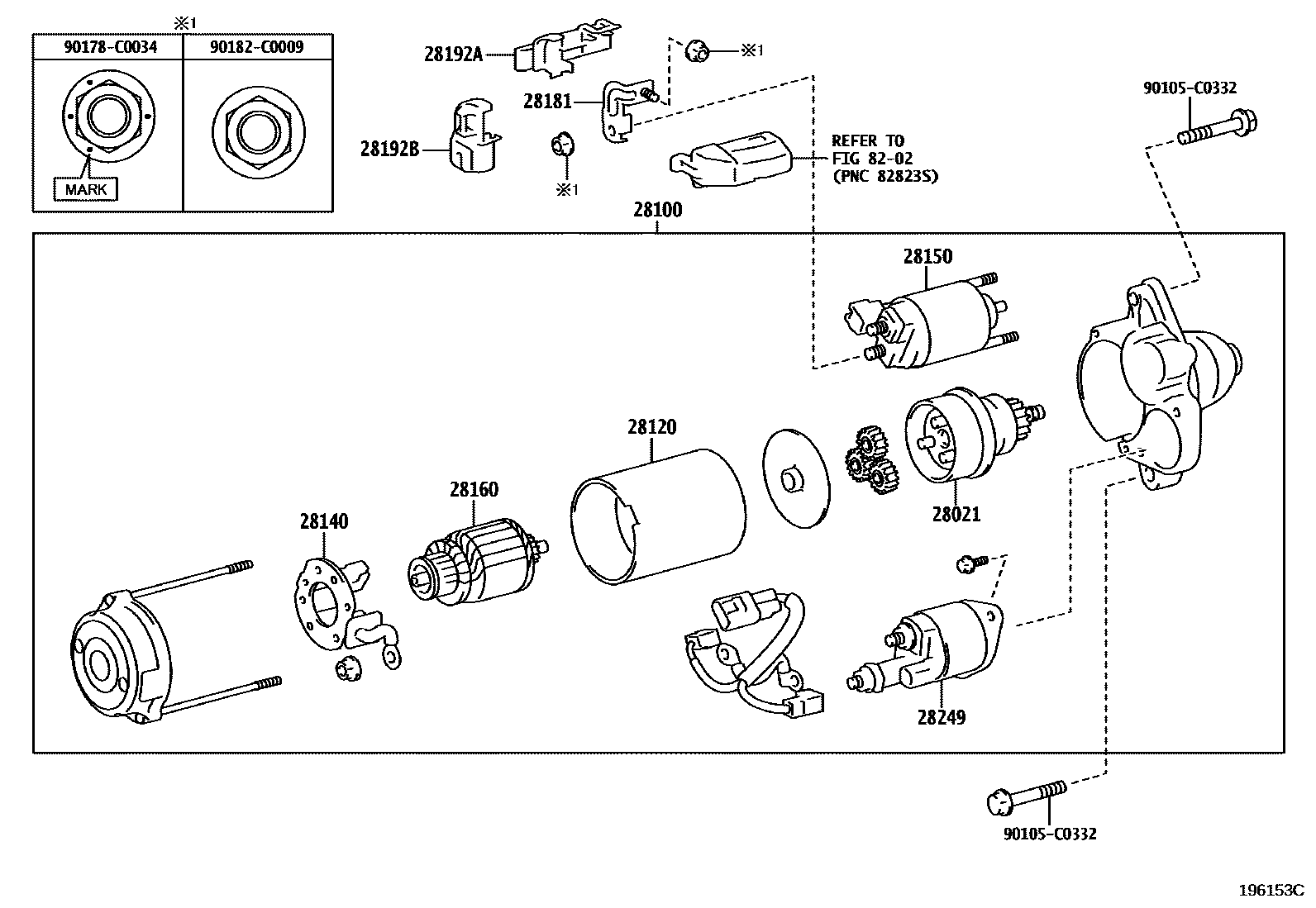

Toyota COROLLA CROSS (TFTM) — STARTER

28021CLUTCH SUB-ASSY, STARTER CENTER BEARING

main28021-F0020iM20..MXGA10202201-202304

main28021-F0020iM20..MXGA10202304

28100STARTER ASSY

main28100-F0090iM20..MXGA10202201-202304

12V 1.7KW

main28100-F0090iM20..MXGA10202304

12V 1.7KW

28120YOKE ASSY, STARTER

main28120-F0020iM20..MXGA10202201-202304

main28120-F0020iM20..MXGA10202304

28140HOLDER ASSY, STARTER BRUSH

main28140-0V040iM20..MXGA10202201-202304

main28140-0V040iM20..MXGA10202304

28150SWITCH ASSY, MAGNET STARTER

main28150-0Y331iM20..MXGA10202201-202304

main28150-0Y331iM20..MXGA10202304

28160ARMATURE ASSY, STARTER

main28160-0S050iM20..MXGA10202201-202304

main28160-0S050iM20..MXGA10202304

28181TERMINAL, STARTER

main28181-24030iM20..MXGA10202201-202304

main28181-24030iM20..MXGA10202304

28192ACOVER, STARTER, NO.1

main28192-F2010iM20..MXGA10202201-202304

main28192-F2010iM20..MXGA10202304

28192BCOVER, STARTER, NO.2

main28192-F2140iM20..MXGA10202201-202304

main28192-F2140iM20..MXGA10202304

28249RELAY, STARTER INRUSH CURRENT REDUCTION

main28249-37100iM20..MXGA10¥7,500202201-202304

main28249-37100iM20..MXGA10¥7,500202304

8202

90105C0332

main90105-C0332

90178C0034

main90178-C0034

90182C0009

main90182-C0009

14 parts on this diagram · 1 diagram in section
