Toyota COROLLA CROSS (TFTM) — STANDARD TOOL

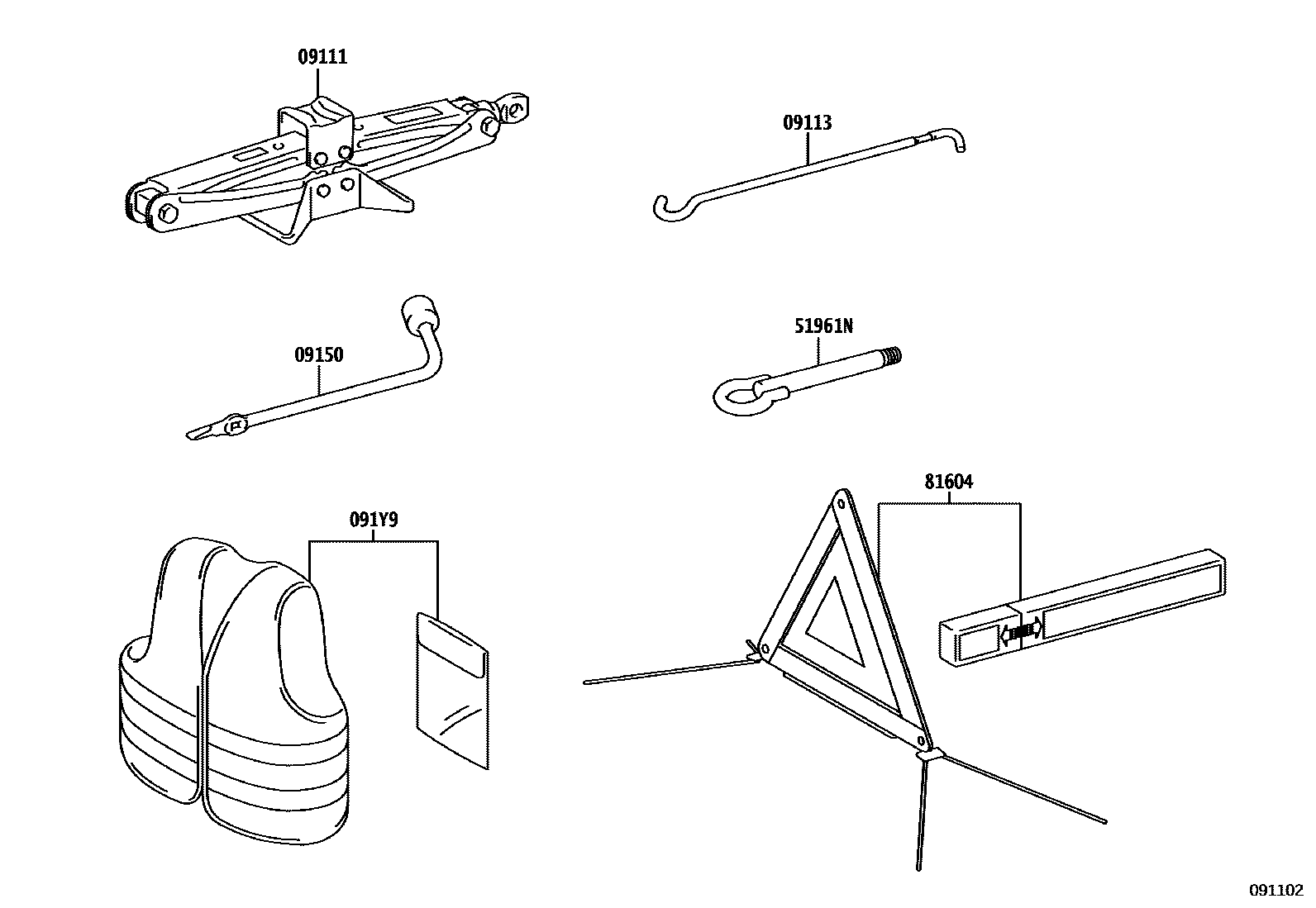

Parts diagram

09111JACK SUB-ASSY

main09111-0A060i202201-202304

09113HANDLE, JACK

main09113-0R030i202201-202304

09150WRENCH, HUB NUT BOX

main09150-0R020i202201-202304

091Y9JACKET, W/REFLECTOR

main091Y9-02020i202201-202304

51961NHOOK, TRANSPORT

main51960-0A050i202201-202304

81604REFLECTOR SET, TRIANGLE

main81604-02030i202201-202304

6 parts on this diagram · 1 diagram in section
