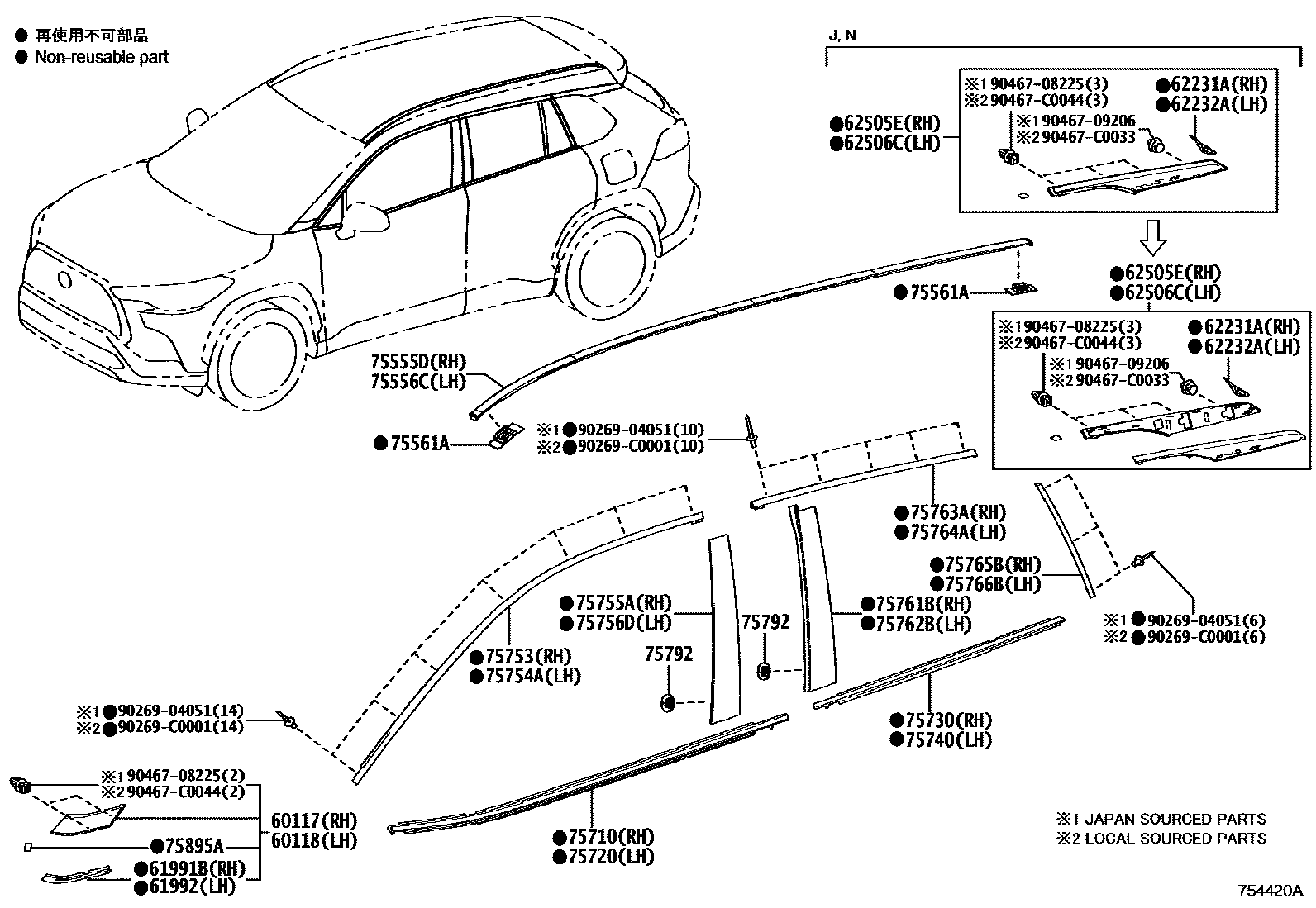

Toyota COROLLA CROSS (TFTM) — SIDE MOULDING

0001 1 0002 1

60117COVER SUB-ASSY, FRONT PILLAR, UPR RH

main60117-0A050iMXGA10202201-202304

60118COVER SUB-ASSY, FRONT PILLAR, UPR LH

main60118-0A050iMXGA10202201-202304

61991BPROTECTOR, FRONT PILLAR COVER, RH

main61991-0A050iMXGA10202201-202304

61992PROTECTOR, FRONT PILLAR COVER, LH

main61992-0A050iMXGA10,MXGH10202201-202304

62231APAD, QUARTER PILLAR, RH

main62523-0A170iMXGA10,MXGH10..J,N202201-202304

main62523-0A180iMXGA10..E,G202201-202304

62232APAD, QUARTER PILLAR, LH

main62524-0A170iMXGA10..J,N202201-202304

main62524-0A180iMXGA10..E,G202201-202304

62505ECOVER SUB-ASSY, QUARTER PILLAR, RH

main62505-0A090iMXGA10..J,N202201-202304

NO PAINT REQ.

main62505-0A100iMXGA10..E,G202201-202304

PLATED

62506CCOVER SUB-ASSY, QUARTER PILLAR, LH

main62506-0A090iMXGA10..J,N202201-202304

NO PAINT REQ.

main62506-0A100iMXGA10,MXGH10..E,G202201-202304

PLATED

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-0A060iMXGA10..G,J,N202201-202304

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-0A060iMXGA10..G,J,N202201-202304

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-0A080iMXGA10202201-202304

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-0A070iMXGA10202201-202304

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-0A070iMXGA10,MXGH10202201-202304

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-0A070iMXGA10202201-202304

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-0A070iMXGA10202201-202304

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-0A090iMXGA10..J,N202201-202304

main75753-0A100iMXGA10,MXGH10..E,G202201-202304

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-0A090iMXGA10..J,N202201-202304

main75754-0A100iMXGA10,MXGH10..E,G202201-202304

75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75755-0A050iMXGA10202201-202304

75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75756-0A050iMXGA10,MXGH10202201-202304

75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)

main75761-0A050iMXGA10,MXGH10202201-202304

75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)

main75762-0A050iMXGA10202201-202304

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-0A090iMXGA10,MXGH10..J,N202201-202304

main75763-0A100iMXGA10,MXGH10..E,G202201-202304

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-0A090iMXGA10,MXGH10..J,N202201-202304

main75764-0A100iMXGA10,MXGH10..E,G202201-202304

75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)

main75765-0A050iMXGA10202201-202304

75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)

main75766-0A050iMXGA10202201-202304

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-0D010iMXGA10202201-202304

(L)

main75792-47010iMXGA10¥70202201-202304

(J)

75895ATAPE, MOULDING, NO.1

main75895-0A050iMXGA10202201-202304

9026904051

main90269-04051¥40

90269C0001

main90269-C0001

9046708225

main90467-08225¥60

9046709206

main90467-09206¥80

90467C0033

main90467-C0033

90467C0044

main90467-C0044

33 parts on this diagram · 2 diagrams in section
