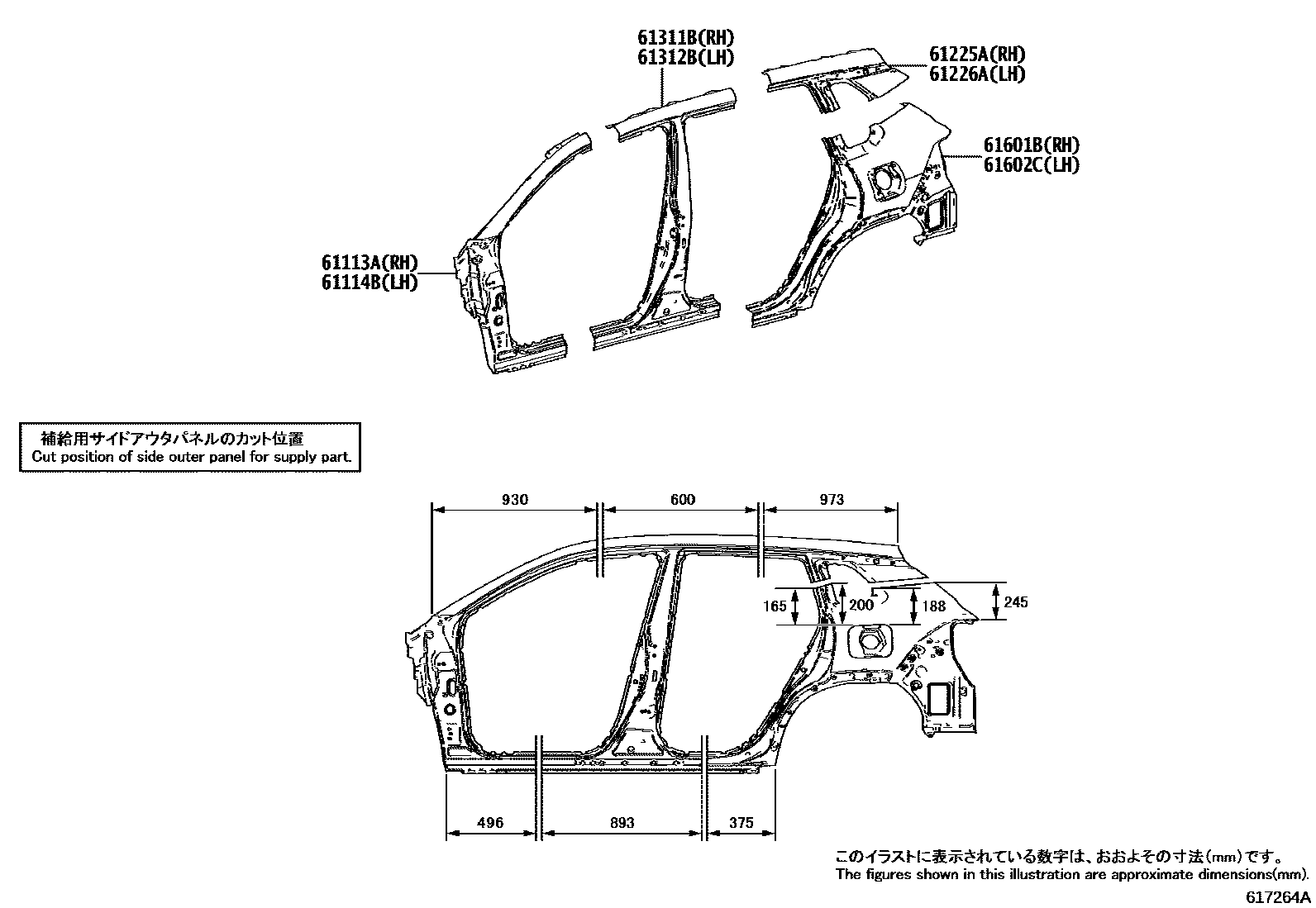

Toyota COROLLA CROSS (TFTM) — SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL, LH 0003 1INNER PANEL, RH

61113APANEL, SIDE, OUTER NO.2 RH

main61113-0A060iMXGA10202201-202304

main61113-0A060iMXGA10,MXGH10202304

61114BPANEL, SIDE, OUTER NO.2 LH

main61114-0A070iMXGA10,MXGH10202304

main61114-0A070iMXGA10202201-202304

61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH

main61225-0A050iMXGA10202201-202304

main61225-0A050iMXGA10,MXGH10202304

61226ARAIL, ROOF SIDE OUTER UPPER NO.1, LH

main61226-0A050iMXGA10202201-202304

main61226-0A050iMXGA10,MXGH10202304

61311BPILLAR, CENTER BODY, OUTER RH

main61311-0A060iMXGA10202201-202304

main61311-0A060iMXGA10,MXGH10202304

61312BPILLAR, CENTER BODY, OUTER LH

main61312-0A060iMXGA10202201-202304

main61312-0A060iMXGA10,MXGH10202304

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-0A060iMXGA10202201-202304

main61601-0A060iMXGA10,MXGH10202304

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-0A070iMXGA10202201-202304

main61602-0A070iMXGA10,MXGH10202304

8 parts on this diagram · 3 diagrams in section
