Toyota COROLLA CROSS (TFTM) — METER

0001 1 0002 1

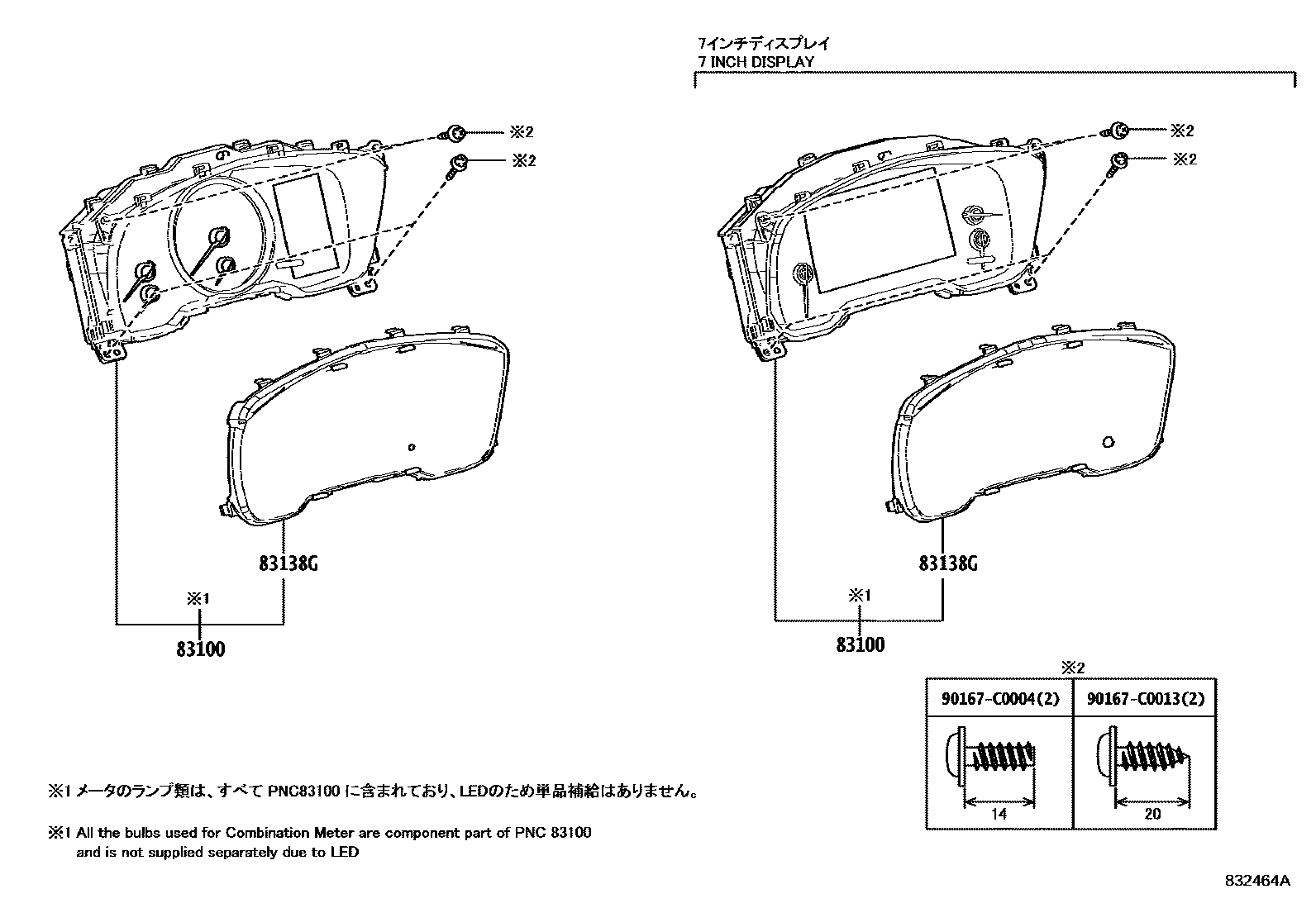

83100METER ASSY, COMBINATION

main83800-0A870iMXGA10..J202201-202304

DENSO

main83800-0A880iMXGA10..G,N202201-202304

DENSO

main83800-0A890iMXGA10..E202201-202304

DENSO

main83800-0AE20iMXGA10..E,G,N202304-202306

VISTEON,*614

sub83800-0AE21

main83800-0AE21iMXGA10..E,G,N202307-202309

VISTEON,*614

sub83800-0AE22

main83800-0AE22iMXGA10..E,G,N202310-202402

VISTEON,*614

sub83800-0AE23

main83800-0AE23iMXGA10..E,G,N202403-202404

VISTEON,*614

sub83800-0AE24

main83800-0AE24iMXGA10..E,G,N202404

VISTEON,*614

main83800-0AE30iMXGA10..J202304-202306

VISTEON,*614

sub83800-0AE31

main83800-0AE31iMXGA10..J202307-202309

VISTEON,*614

sub83800-0AE32

main83800-0AE32iMXGA10..J202310-202402

VISTEON,*614

sub83800-0AE33

main83800-0AE33iMXGA10..J202403-202404

VISTEON,*614

sub83800-0AE34

main83800-0AE34iMXGA10..J202404

VISTEON,*614

main83800-0AE40iMXGH10..G,N202307-202309

VISTEON,*614

sub83800-0AE41

main83800-0AE41iMXGH10..G,N202310-202402

VISTEON,*614

sub83800-0AE42

main83800-0AE42iMXGH10..G,N202403-202404

VISTEON,*614

sub83800-0AE43

main83800-0AE43iMXGH10..G,N202404

VISTEON,*614

main83800-0AE50iMXGH10..J202307-202309

VISTEON,*614

sub83800-0AE51

main83800-0AE51iMXGH10..J202310-202402

VISTEON,*614

sub83800-0AE52

main83800-0AE52iMXGH10..J202403-202404

VISTEON,*614

sub83800-0AE53

main83800-0AE53iMXGH10..J202404

VISTEON,*614

main83800-0AE60iMXGH10..E202307-202308

DENSO,*614

sub83800-0AE61

main83800-0AE61iMXGH10..E202308-202403

DENSO,*614

sub83800-0AE62

main83800-0AE62iMXGH10..E202404

DENSO,*614

sub83800-0AE63

83138GGLASS, COMBINATION METER

main83852-02050iMXGA10;MXGH10..G,J,N202304-202310

main83852-FE340iMXGA10..E202201-202304

main83852-FE380iMXGA10..G,J,N202201-202304

main83A52-02D70iMXGH10..E202307-202308

90167C0004

main90167-C0004

90167C0013

main90167-C0013

4 parts on this diagram · 2 diagrams in section
