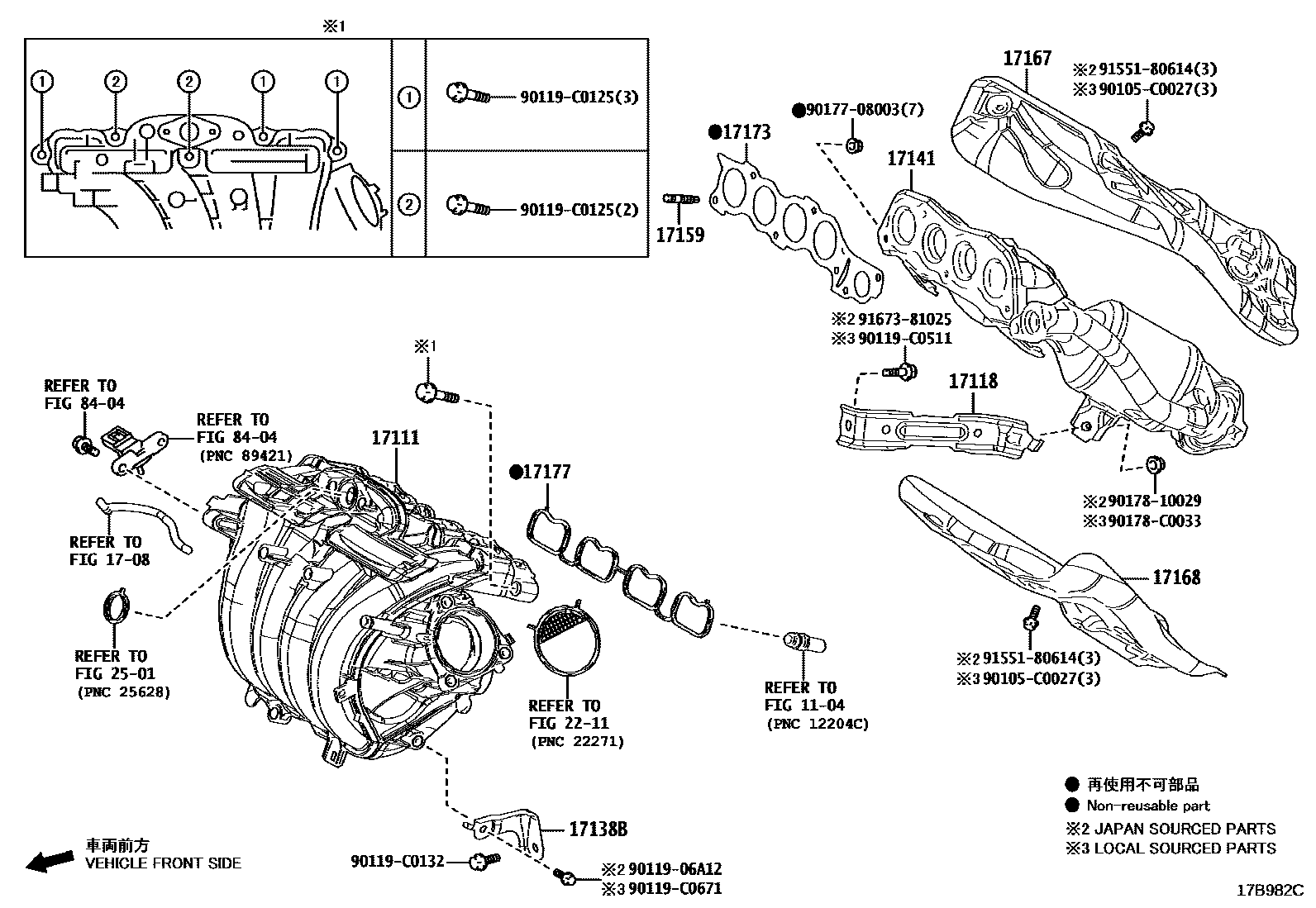

Toyota COROLLA CROSS (TFTM) — MANIFOLD
1104
1708
17111MANIFOLD, INTAKE
(J)
(L)
17118STAY, MANIFOLD
17138BSTAY, INTAKE MANIFOLD
(J)
(L)
17141MANIFOLD, EXHAUST
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(J)
(L)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
(J)
(L)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
(J)
(L)
2211
2501
8404
90105C0027
main90105-C0027
9011906A12
90119C0125
main90119-C0125
90119C0132
main90119-C0132
90119C0511
main90119-C0511
90119C0671
main90119-C0671
9017708003
9017810029
90178C0033
main90178-C0033
9155180614
9167381025
25 parts on this diagram · 2 diagrams in section
