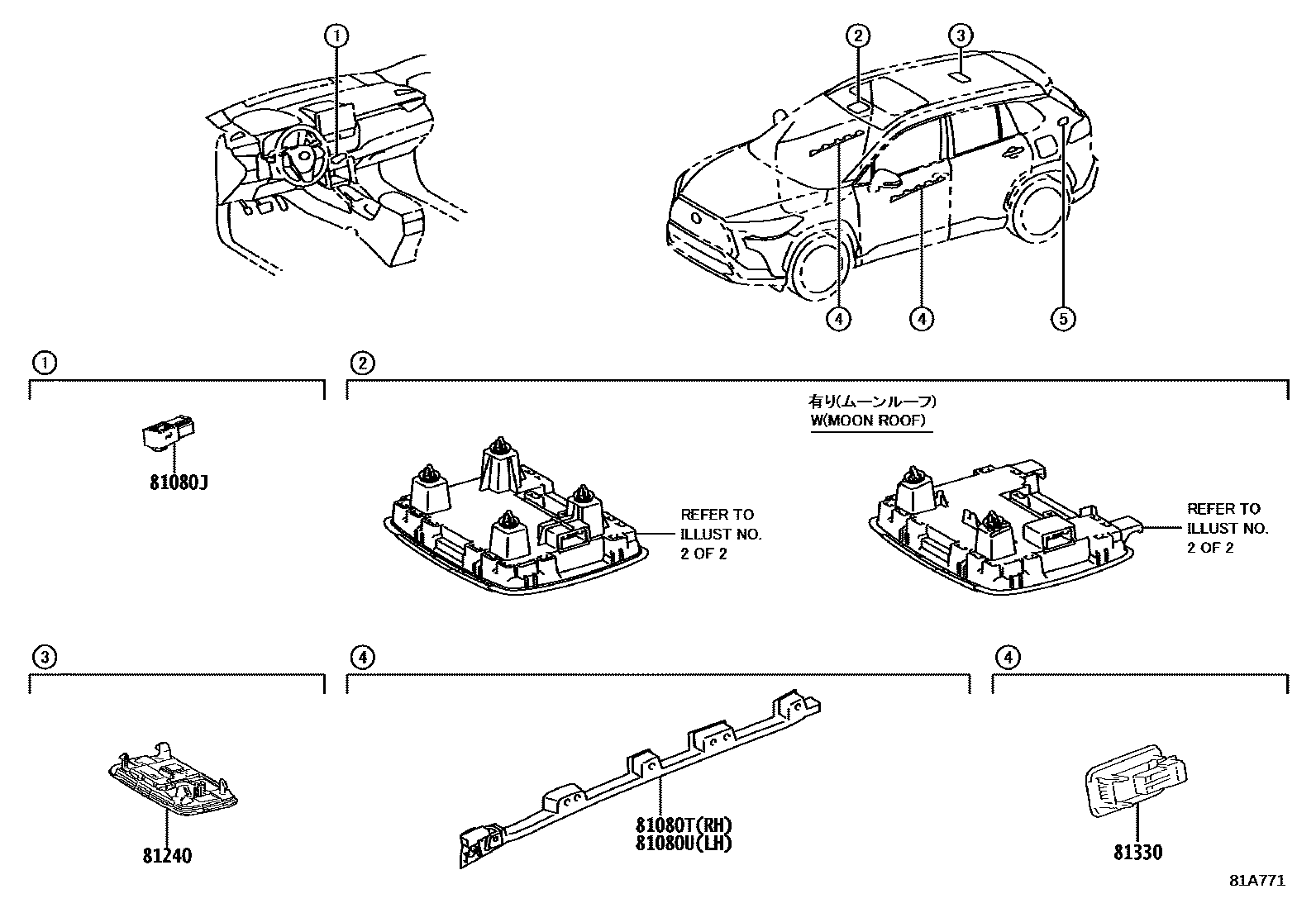

Toyota COROLLA CROSS (TFTM) — INTERIOR LAMP

0001 1 0002 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-0E060iMXGA10..E202201-202304

TYPE B

main81080-0E060iMXGA10..E202304

main81080-33280iMXGA10..E¥920202201-202304

TYPE A

81080TLAMP ASSY, INTERIOR ILLUMINATION, NO.2 RH

main81080-0A030iMXGA10..E202201-202304

81080ULAMP ASSY, INTERIOR ILLUMINATION, NO.2 LH

main81080-0A040iMXGA10..E202201-202304

81240LAMP ASSY, ROOM, NO.1

main81240-0E030-B0iMXGA10202201-202304

LT.GRAY,TRIM2#,4#

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-0E020iMXGA10202201-202304

5 parts on this diagram · 2 diagrams in section
