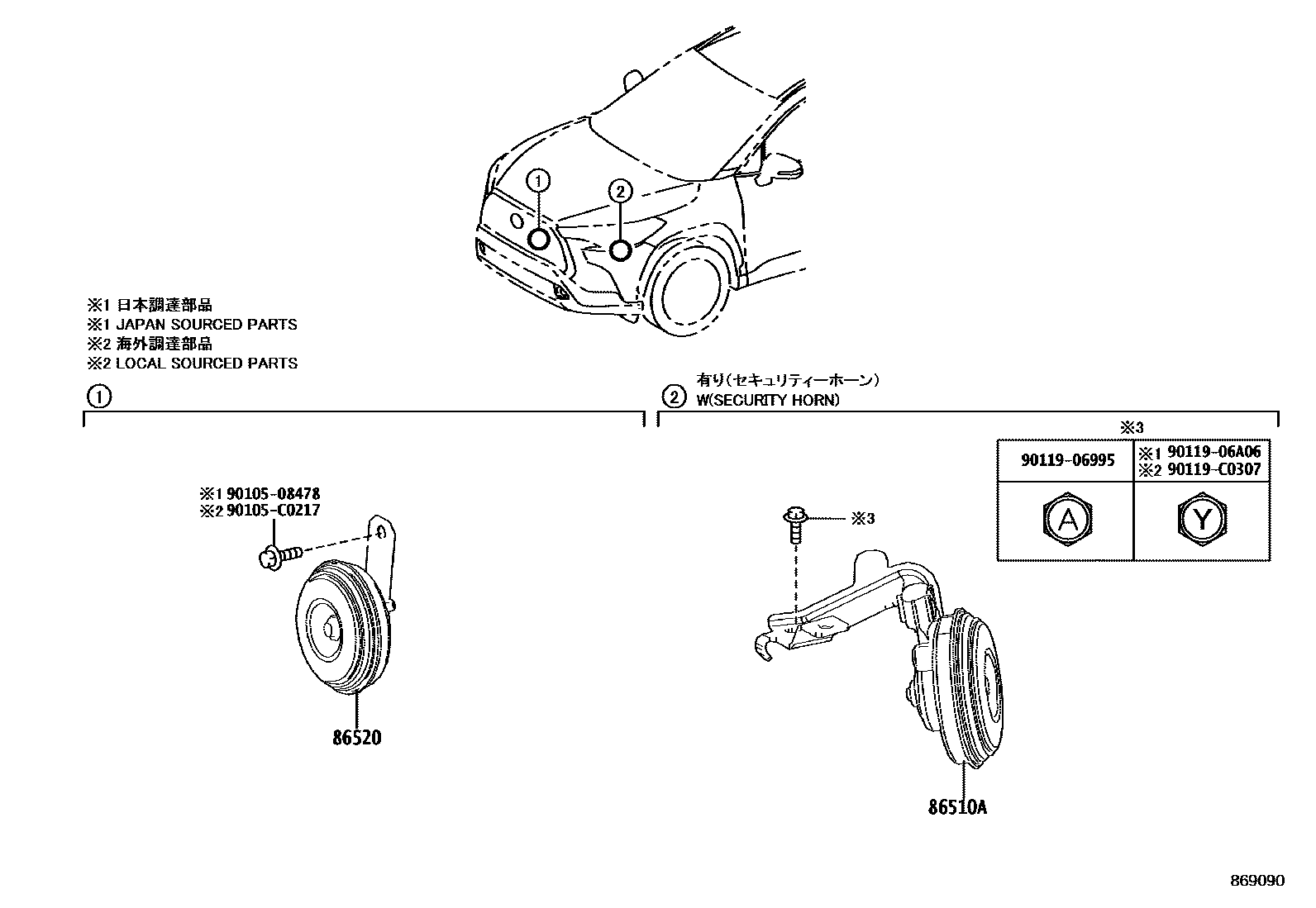

Toyota COROLLA CROSS (TFTM) — HORN

0001 1 0002 1

86510AHORN ASSY, SECURITY

main86560-02180iMXGA10..E,G202201-202304

main86560-02210iMXGH10..E,G202307

86520HORN ASSY, LOW PITCHED

main86520-0A030iMXGA10202201-202205

sub86520-0A031

main86520-0A031iMXGA10202206-202304

9010508478

main90105-08478¥80

90105C0217

main90105-C0217

9011906995

main90119-06995¥60

9011906A06

main90119-06A06¥60

90119C0307

main90119-C0307

7 parts on this diagram · 2 diagrams in section
