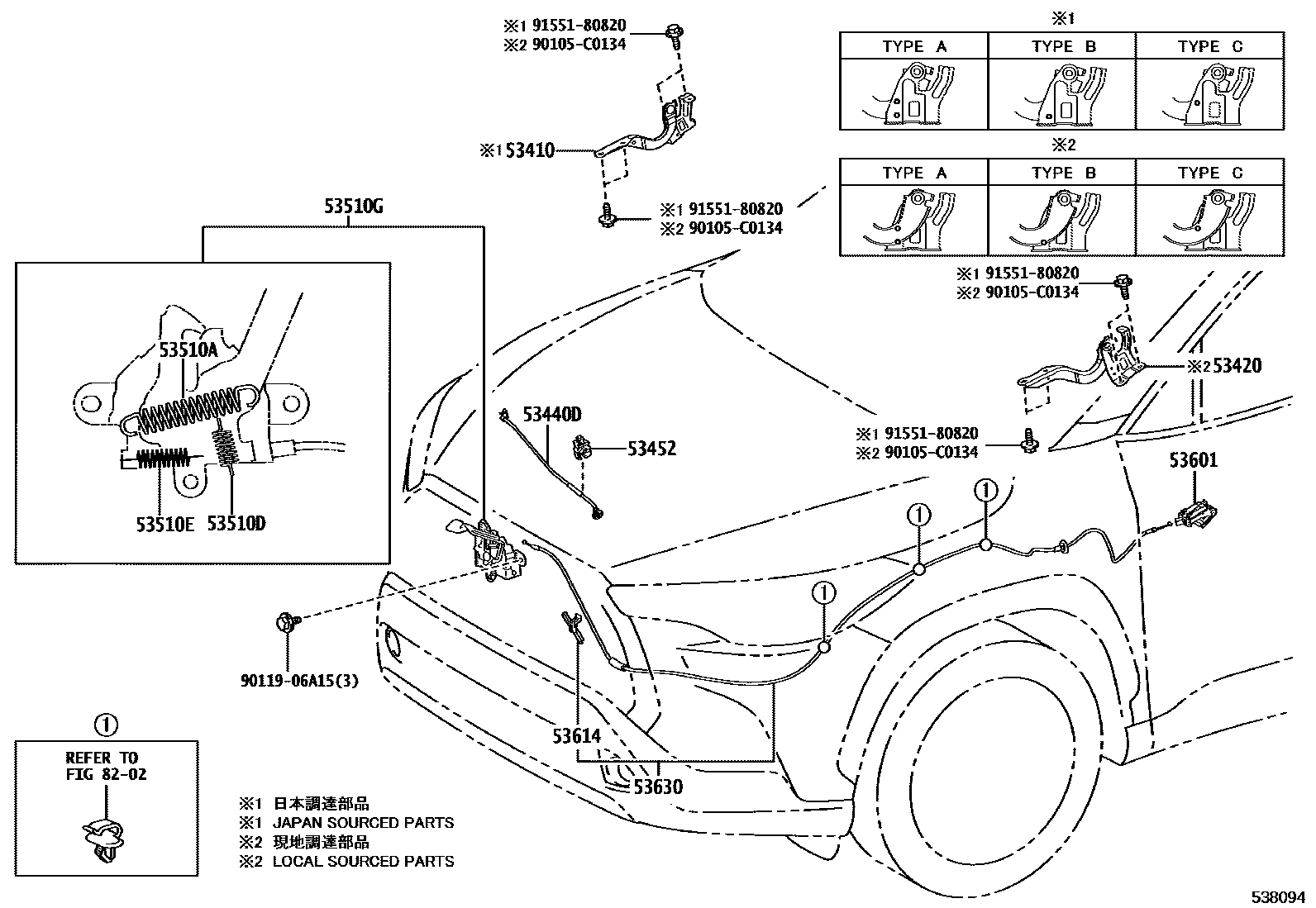

Toyota COROLLA CROSS (TFTM) — HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-0A150iMXGA10202201-202304

TYPE A:REFER ILLUST.

main53410-0A160iMXGA10202201-202304

TYPE B:REFER ILLUST.

main53410-0A170iMXGA10202201-202304

TYPE C:REFER ILLUST.

53420HINGE ASSY, HOOD, LH

main53420-0A150iMXGA10,MXGH10202201-202304

TYPE A:REFER ILLUST.

main53420-0A160iMXGA10202201-202304

TYPE B:REFER ILLUST.

main53420-0A170iMXGA10202201-202304

TYPE C:REFER ILLUST.

53440DSUPPORT ASSY, HOOD

main53440-0A050iMXGA10202201-202505

53452HOLDER, HOOD STAY

main53452-0A020iMXGA10,MXGH10202212-202304

(L)

main53452-15020iMXGA10¥340202212-202304

(J)

main53452-15020iMXGA10¥340202201-202212

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09055iMXGA10¥90202201-202304

WD=0.9,CW=21

53510DSPRING, TENSION(FOR HOOD LOCK)

main90506-12063iMXGA10¥90202201-202304

WD=1.2,CW=8.5

53510ESPRING, TENSION(FOR HOOD LOCK)

main90506-18067iMXGA10¥90202201-202304

WD=1.8,CW=13

53510GLOCK ASSY, HOOD, W/COURTESY LAMP SWITCH

main53510-0A080iMXGA10202201-202304

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-0D011-C1iMXGA10202201-202304

BLACK,TRIM2#,4#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-16020iMXGA10¥290202201-202304

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-0A080iMXGA10202201-202304

8202

90105C0134

main90105-C0134

9011906A15

main90119-06A15¥60

9155180820

main91551-80820¥80

15 parts on this diagram · 1 diagram in section
