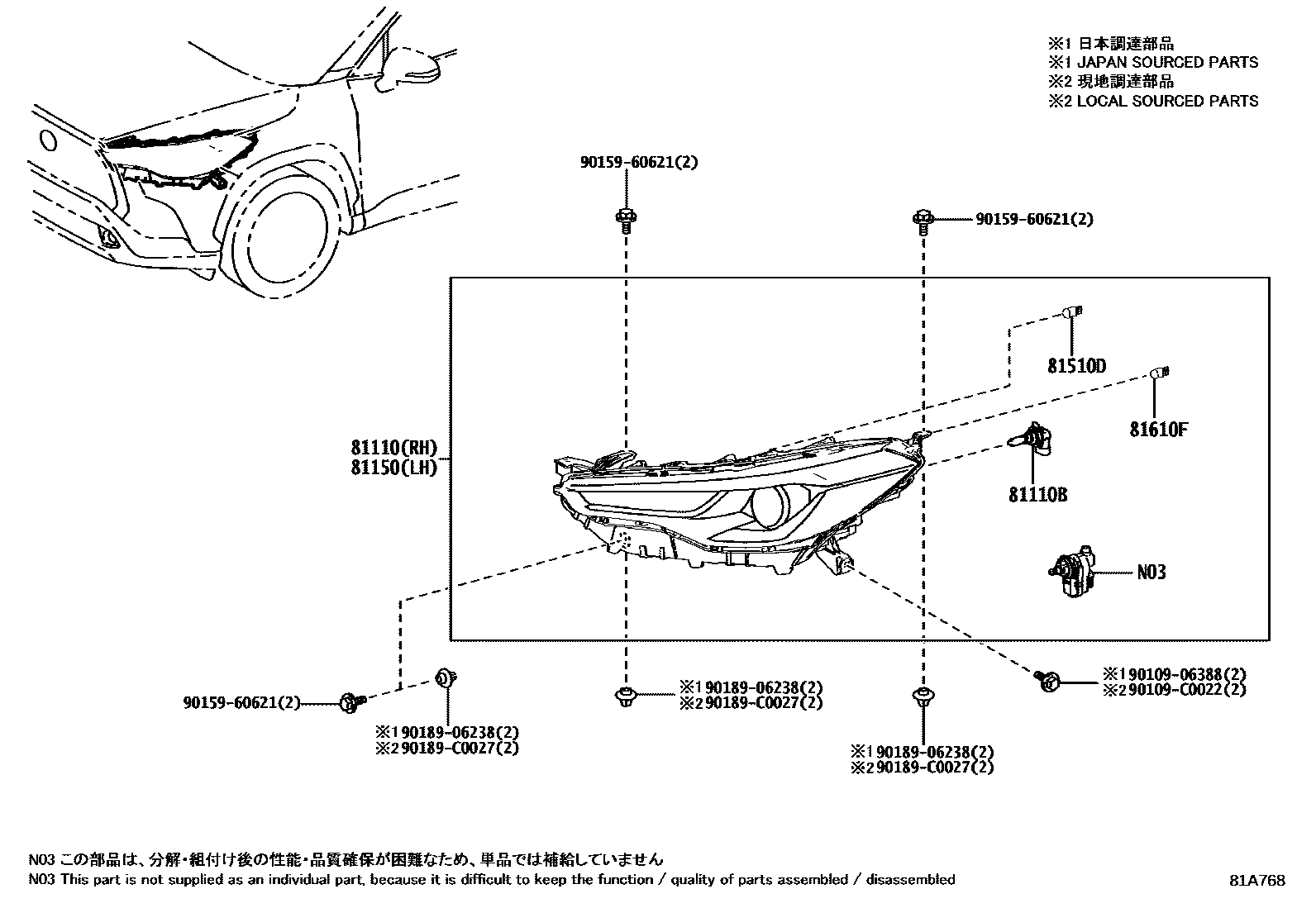

Toyota COROLLA CROSS (TFTM) — HEADLAMP

0001 1 0002 1

81110HEADLAMP ASSY, RH

main81110-0A180iMXGA10..J202201-202304

main81110-0A180iMXGA10,MXGH10..J202304

main81110-0A190iMXGA10..E,G,N202201-202304

main81110-0A190iMXGA10,MXGH10..E,G,N202304

81110BBULB(FOR HEADLAMP, NO.1)

main90981-CD010iMXGA10..J202201-202304

12V 55W

main90981-CD010iMXGA10,MXGH10..J202304

12V 55W

81150HEADLAMP ASSY, LH

main81150-0A180iMXGA10,MXGH10..J202304

main81150-0A180iMXGA10..J202201-202304

main81150-0A190iMXGA10..E,G,N202201-202304

main81150-0A190iMXGA10,MXGH10..E,G,N202304

81510DBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-CB004iMXGA10..J202201-202304

12V 21W

main90981-CB004iMXGA10,MXGH10..J202304

12V 21W

81610FBULB(FOR CLEARANCE LAMP)

main90981-CB008iMXGA10..J202201-202304

12V 21/5W

main90981-CB008iMXGA10,MXGH10..J202304

12V 21/5W

9010906388

main90109-06388¥70

90109C0022

main90109-C0022

9015960621

main90159-60621¥60

9018906238

main90189-06238¥100

90189C0027

main90189-C0027

10 parts on this diagram · 2 diagrams in section
