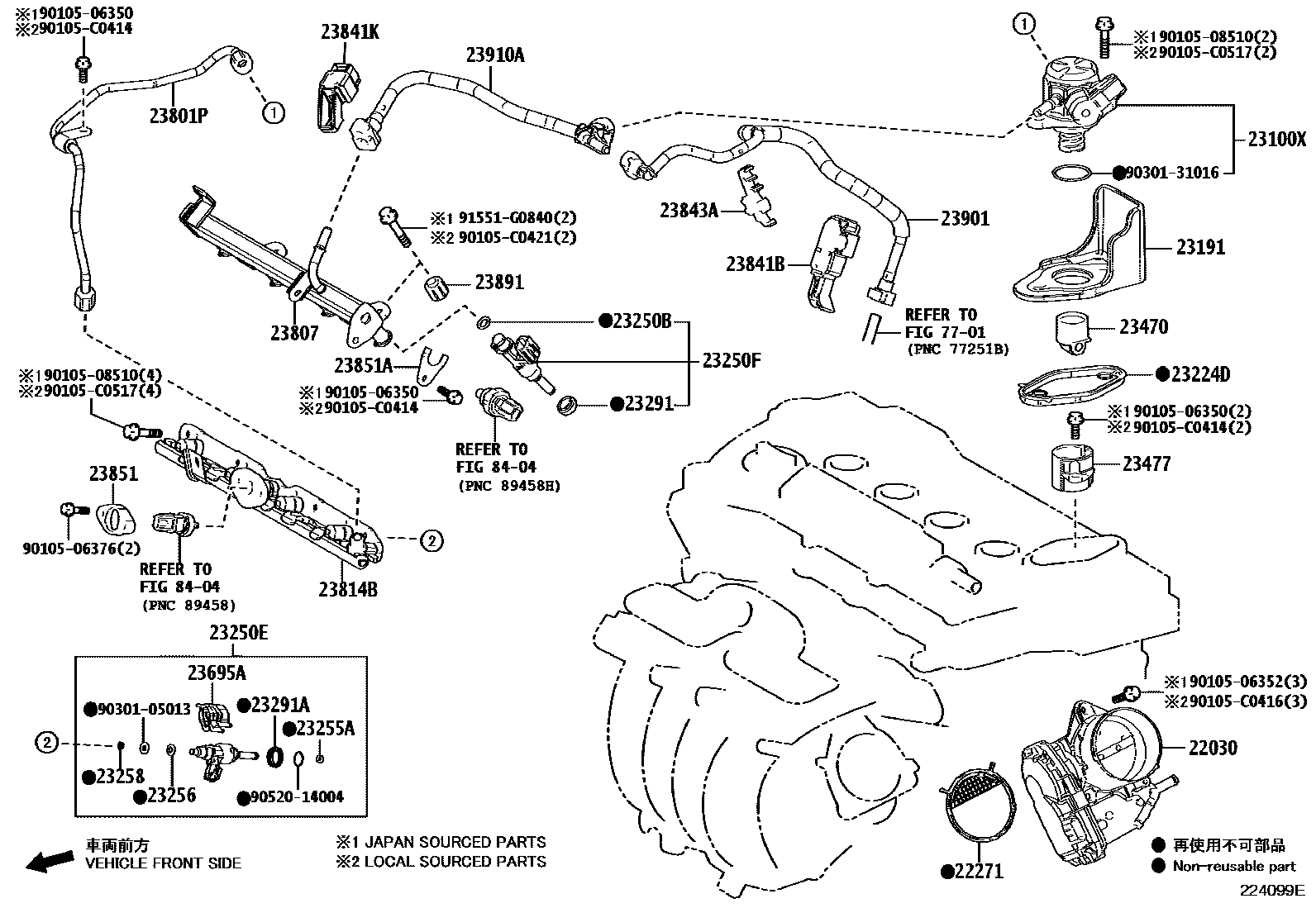

Toyota COROLLA CROSS (TFTM) — FUEL INJECTION SYSTEM
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
(J)
(L)
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23191FLANGE, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250BRING, O(FOR FUEL INJECTOR)
(J)
(L)
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 9,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
(J)
(L)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
23258RING, FUEL INJECTOR BACK-UP, NO.3
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23801PPIPE SUB-ASSY, FUEL, NO.1
23807PIPE SUB-ASSY, FUEL DELIVERY
23814BPIPE, FUEL DELIVERY
23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)
23841KCLAMP, FUEL PIPE
(J)
(L)
23843ACLAMP,FUEL PIPE, NO.3(FOR EFI)
23851HOLDER, FUEL PRESSURE SENSOR, NO.1
23851AHOLDER, FUEL PRESSURE SENSOR, NO.2
23891SPACER, FUEL DELIVERY
23910ATUBE SUB-ASSY, FUEL
(J)
(L)
7701
8404
9010506350
9010506352
9010506376
9010508510
90105C0414
main90105-C0414
90105C0416
main90105-C0416
90105C0421
main90105-C0421
90105C0517
main90105-C0517
9030105013
9030131016
9052014004
91551G0840
41 parts on this diagram · 2 diagrams in section
