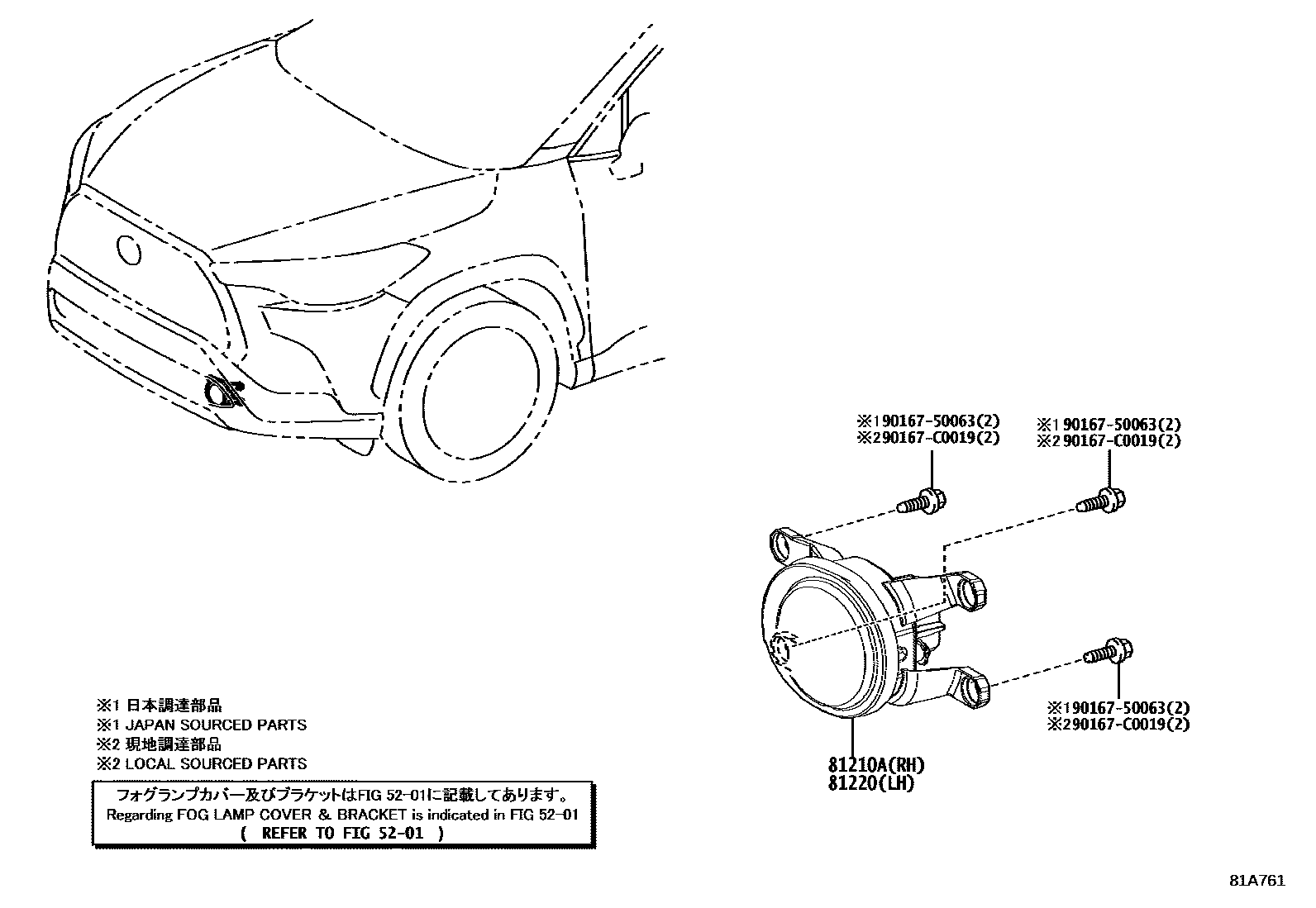

Toyota COROLLA CROSS (TFTM) — FOG LAMP

0001 1 0002 1

5201

81210ALAMP ASSY, FOG, RH

main81210-02200iMXGA10..E,G,N202201-202208

main81210-02201iMXGA10..E,G,N202209-202308

main81210-0R060iMXGA10,MXGH10..N202308-202405

81220LAMP ASSY, FOG, LH

main81220-02100iMXGA10..E,G,N202201-202208

main81220-02101iMXGA10..E,G,N202209-202308

main81220-0R050iMXGA10,MXGH10..N202308-202405

9016750063

main90167-50063¥60

90167C0019

main90167-C0019

5 parts on this diagram · 2 diagrams in section
