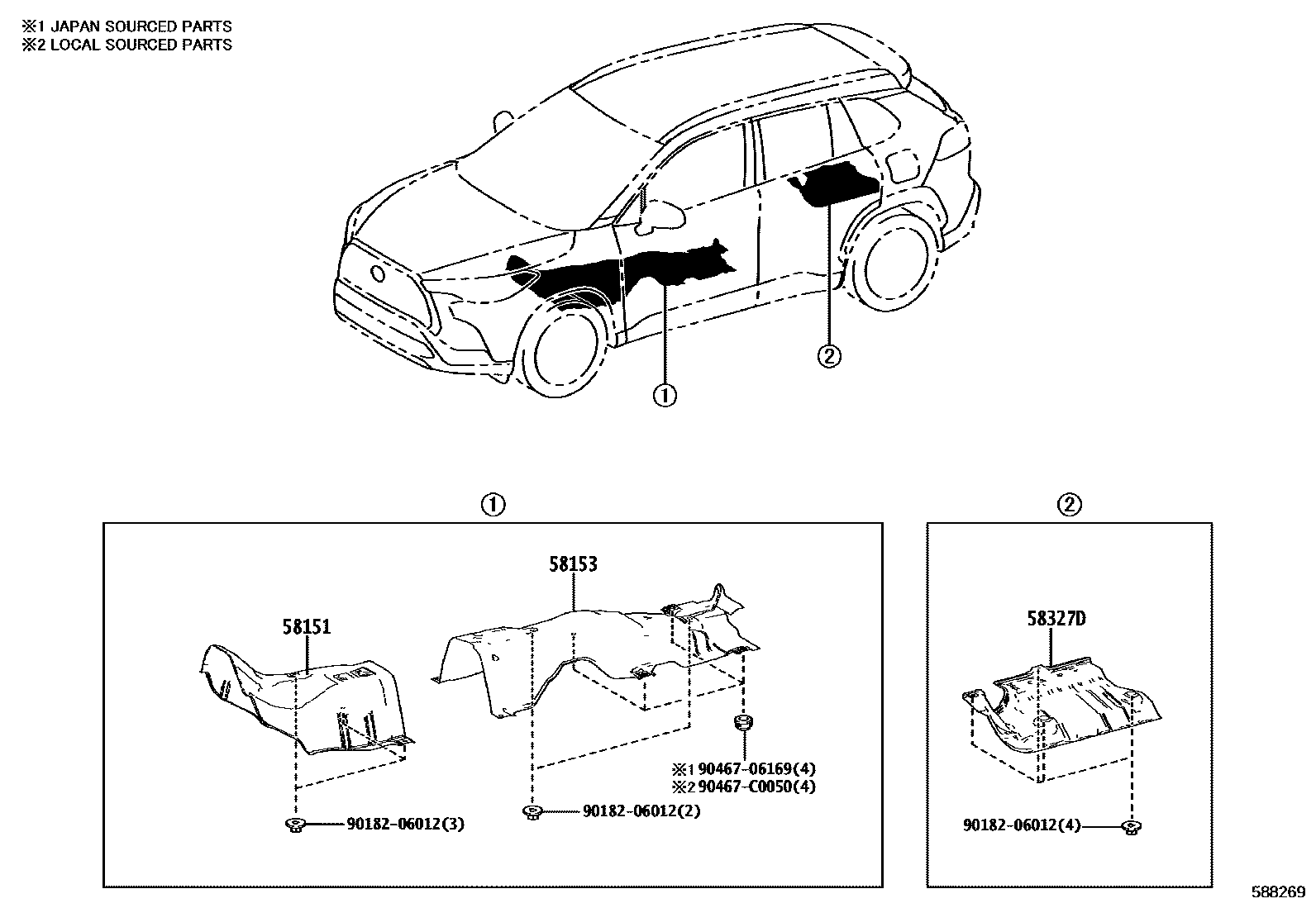

Toyota COROLLA CROSS (TFTM) — FLOOR INSULATOR

0001 1 0002 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-0A110iMXGA10202304

main58151-0A120iMXGH10202307

main58151-F4070iMXGA10202201-202304

sub58151-0A110

58153INSULATOR, FRONT FLOOR HEAT, NO.2

main58153-F4041iMXGA10202201-202304

58327DINSULATOR, MAIN MUFFLER HEAT, UPPER

main58327-0A030iMXGA10202201-202304

9018206012

main90182-06012¥60

9046706169

main90467-06169¥80

90467C0050

main90467-C0050

6 parts on this diagram · 2 diagrams in section
