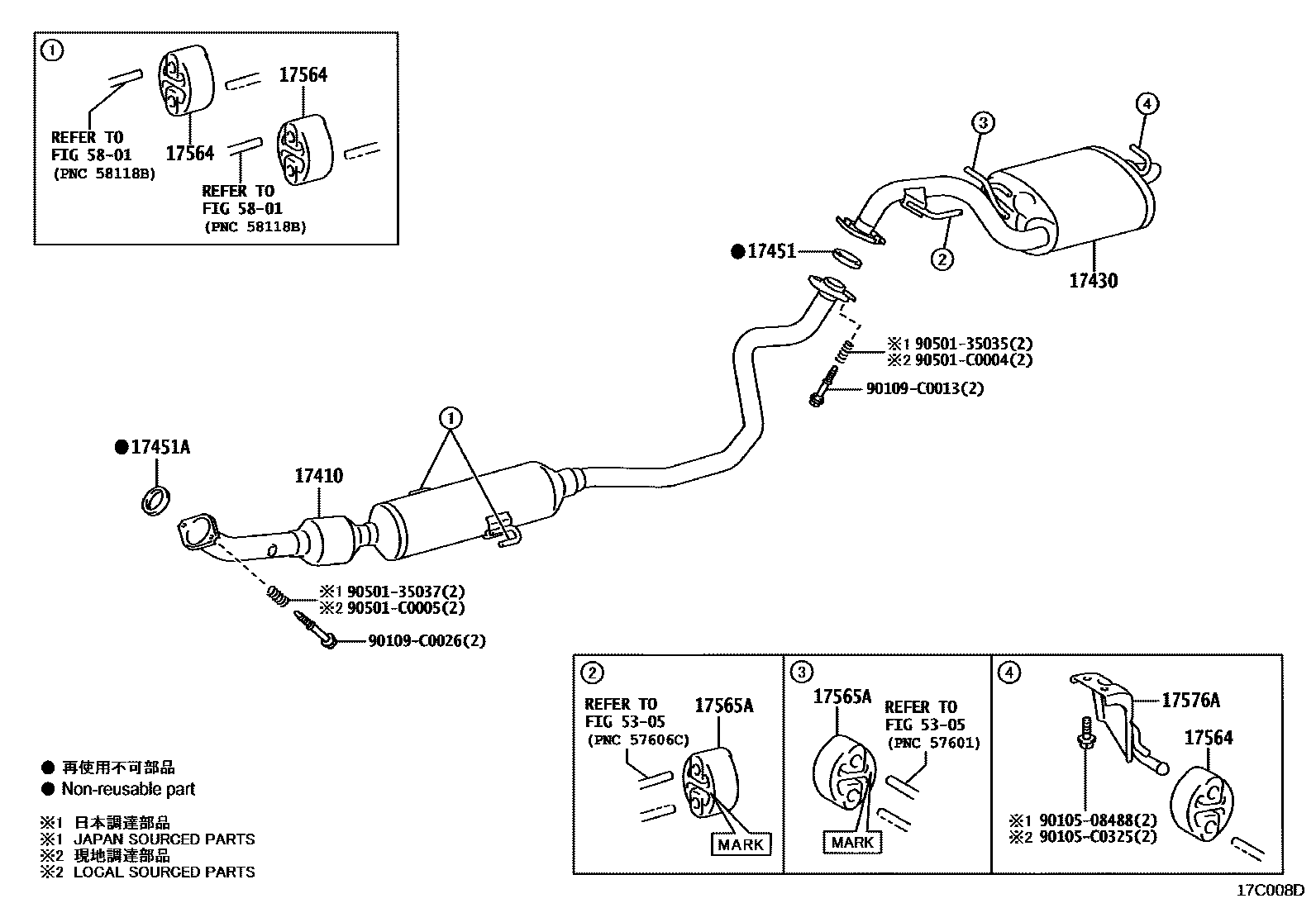

Toyota COROLLA CROSS (TFTM) — EXHAUST PIPE

0001 1 0002 1 0003 1

17410PIPE ASSY, EXHAUST, FRONT

main17410-F2321iM20..MXGA10202201-202304

main17410-F2540iM20..MXGA10202304

main17410-F2550iM20..MXGH10202307

17430PIPE ASSY, EXHAUST, TAIL

main17430-F2200iM20..MXGA10202201-202304

main17430-F2350iM20..MXGH10202307

17451GASKET, EXHAUST PIPE

main17451-0T031iM20..MXGA10202201-202304

main17451-0T080iM20..MXGH10202307

17451AGASKET, EXHAUST PIPE, NO.2

main17451-0T010iM20..MXGA10202201-202304

main17451-0T050iM20..MXGH10202307

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-0T011iM20..MXGA10202201-202304

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-0D080iM20..MXGA10,MXGH10202201-202304

MARK PURPLE

main17565-F0040iM20..MXGA10202201-202304

W/O MARK

17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6

main17576-F2050iM20..MXGA10202201-202304

5305

5801

9010508488

main90105-08488¥80

90105C0325

main90105-C0325

90109C0013

main90109-C0013

90109C0026

main90109-C0026

9050135035

main90501-35035¥200

9050135037

main90501-35037¥200

90501C0004

main90501-C0004

90501C0005

main90501-C0005

17 parts on this diagram · 3 diagrams in section
