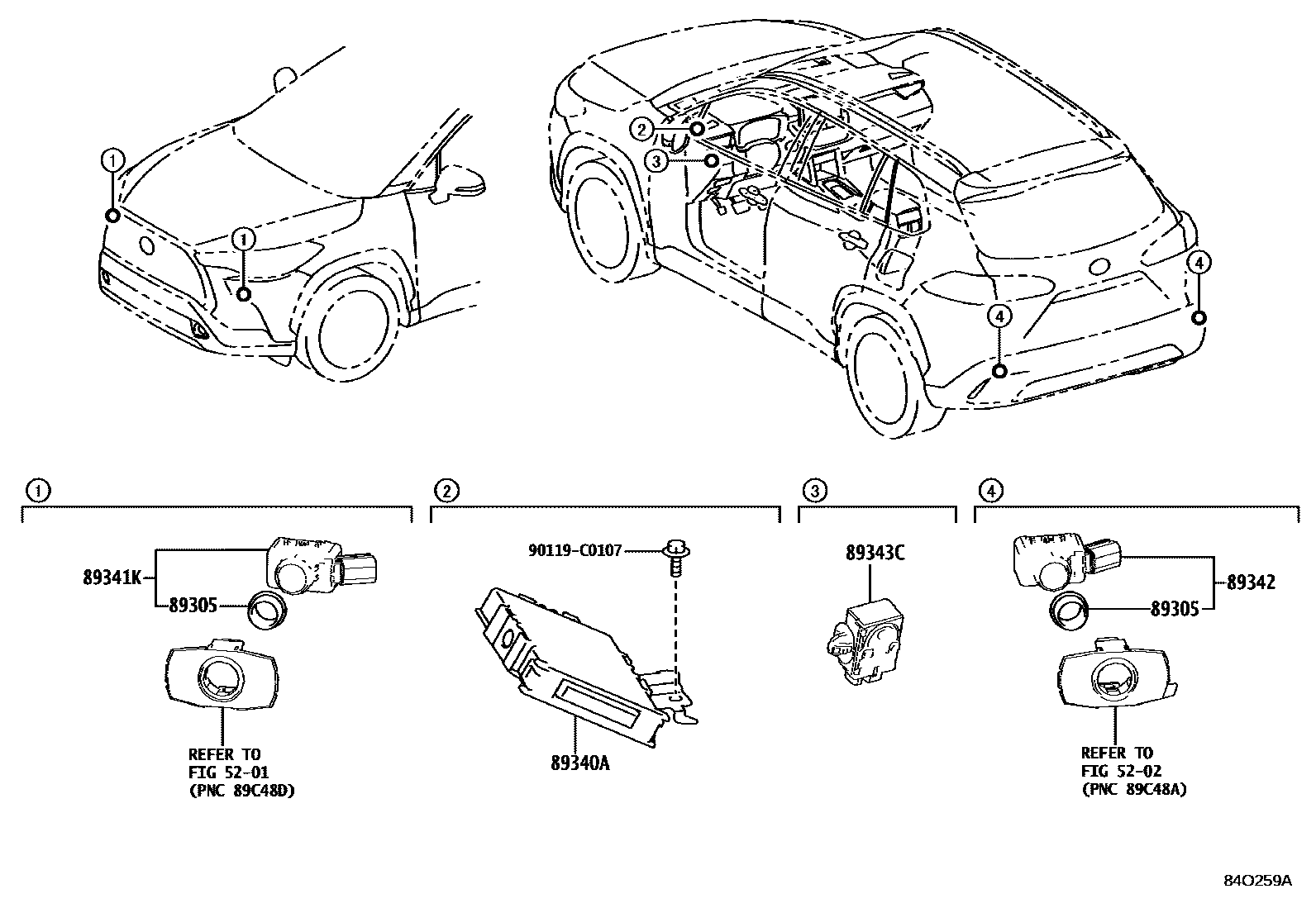

Toyota COROLLA CROSS (TFTM) — CLEARANCE & BACK SONAR
5201
5202
89305CUSHION SET, ULTRASONIC SENSOR
CARE CHINA
89340ACOMPUTER ASSY, CLEARANCE WARNING
*614
CARE CHINA,*614
89341KSENSOR, ULTRASONIC, FRONT CORNER
PLATINUM WHITE PEARL MC.,089 ,2PU
CARE CHINA,PLATINUM WHITE PEARL MC.,089 ,2PU
CARE CHINA,METAL STREAM ME,1K0 ,2UY
METAL STREAM ME,1K0 ,2UY
CARE CHINA,DUMMY-MAT BLACK
DUMMY-MAT BLACK
CARE CHINA,RED MC.,2PN ,3T3
RED MC.,2PN ,3T3
OXIDE BRONZE ME.,6X1
CARE CHINA,OXIDE BRONZE ME.,6X1
URBAN KHAKI,2VN ,6X3
CARE CHINA,URBAN KHAKI,2VN ,6X3
NEBULA BLUE ME.,8X2
CARE CHINA,NEBULA BLUE ME.,8X2
89342SENSOR, ULTRASONIC, REAR CORNER
CARE CHINA,BLACK MC.,209
BLACK MC.,209
89343CBUZZER, CLEARANCE WARNING, NO.1
90119C0107
main90119-C0107
8 parts on this diagram · 1 diagram in section
