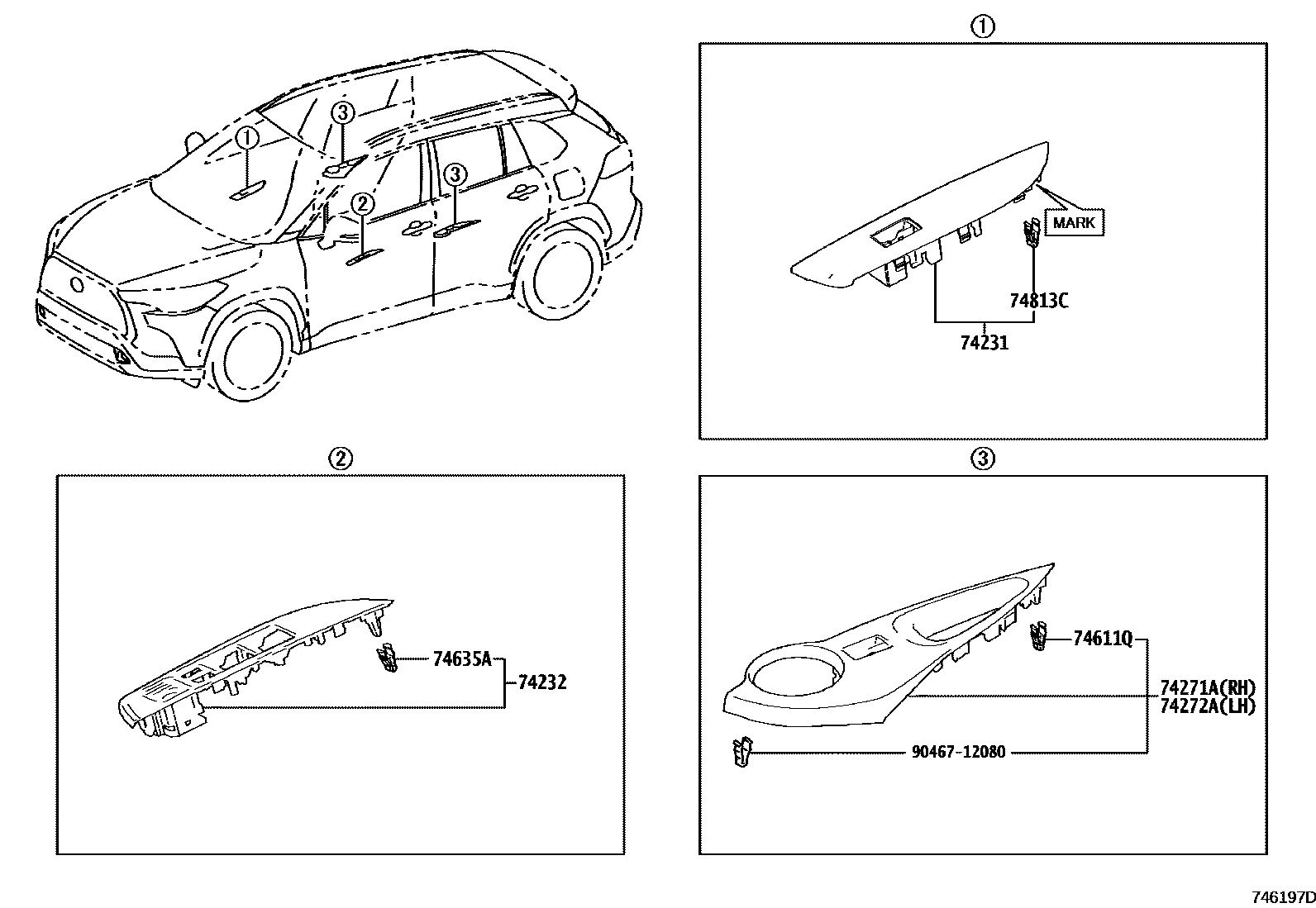

Toyota COROLLA CROSS (TFTM) — ARMREST & VISOR

0001 1ARMREST 0002 1VISOR & ASSIST GRIP

74231PANEL, FRONT ARMREST BASE, UPPER RH

main74231-02J60iMXGA10,MXGH10202304-202401

MARK = FR RH

sub74231-02K20

main74231-02J60iMXGA10202201-202304

sub74231-02K20

main74231-02K20iMXGA10,MXGH10202402

MARK = FR RH

main74231-0A040iMXGA10,MXGH10202304

MARK = FR CR

74232PANEL, FRONT ARMREST BASE, UPPER LH

main74232-02K20iMXGA10,MXGH10..J,N202304-202401

main74232-02K20iMXGA10..G,J,N202201-202304

main74232-02L10iMXGA10,MXGH10..J,N202402

main74232-0A030iMXGA10,MXGH10..E,G202304

CARE CHINA

main74232-0A030iMXGA10..E202201-202304

74271APANEL, REAR DOOR ARMREST BASE, UPPER RH

main74271-0A050iMXGA10202201-202304

main74271-0A050iMXGA10,MXGH10202304

74272APANEL, REAR DOOR ARMREST BASE, UPPER LH

main74272-0A050iMXGA10202201-202304

main74272-0A050iMXGA10,MXGH10202304

74611QCLIP

main90467-C0031iMXGA10202201-202304

main90467-C0031iMXGA10,MXGH10202304

74635ACLIP

main90467-C0031iMXGA10202201-202304

main90467-C0031iMXGA10,MXGH10202304

74813CCLIP

main90467-C0031iMXGA10202201-202304

main90467-C0031iMXGA10,MXGH10202304

9046712080

main90467-12080¥60

8 parts on this diagram · 2 diagrams in section
