Toyota COROLLA CROSS (TFTM) — ANTENNA

86077COVER KIT, ANTENNA

main86077-47010-A3iMXGA10202201-202304

PLATINUM WHITE PEARL MC.,089

sub86077-47010¥2,500

main86077-47010-B2iMXGA10202201-202304

METAL STREAM ME,1K0

sub86077-47010¥2,500

main86077-47010-C2iMXGA10202201-202304

BLACK MC.,209 ,2PN ,2PU ,2UY ,2VN

sub86077-47010¥2,500

main86077-47010-D1iMXGA10202201-202304

RED MC.,3T3

sub86077-47010¥2,500

main86077-47010-G3iMXGA10202201-202304

URBAN KHAKI,6X3

sub86077-47010¥2,500

main86077-47010-G4iMXGA10202201-202304

OXIDE BRONZE ME.,6X1

sub86077-47010¥2,500

main86077-47010-J3iMXGA10202201-202304

NEBULA BLUE ME.,8X2

sub86077-47010¥2,500

main86766-09010-A0iMXGA10,MXGH10202304

PLATINUM WHITE PEARL MC.,089

main86766-09010-B0iMXGA10,MXGH10202304

METAL STREAM ME,1K0

main86766-09010-C0iMXGA10,MXGH10202304

BLACK MC.,209 ,2PN ,2PU ,2UY ,2VN

main86766-09010-D0iMXGA10,MXGH10202304

RED MC.,3T3

main86766-09010-G0iMXGA10,MXGH10202304

OXIDE BRONZE ME.,6X1

main86766-09010-G1iMXGA10,MXGH10202304

URBAN KHAKI,6X3

main86766-09010-J0iMXGA10,MXGH10202304

NEBULA BLUE ME.,8X2

86101CORD SUB-ASSY, ANTENNA

main86101-0A440iMXGA10..E,G,N202201-202304

ENRTY PLUS PACKAGE

main86101-0A560iMXGA10..J202201-202304

main86101-0A840iMXGA10,MXGH10202304

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-0A480iMXGA10202201-202304

main86101-0A800iMXGA10,MXGH10202304

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0A450iMXGA10..E202201-202304

main86101-0A460iMXGA10..G,J,N202201-202304

main86101-0A810iMXGA10,MXGH10..J,N202304

main86101-0A820iMXGA10,MXGH10..E,G202304

86300JANTENNA ASSY, ROOF

main86300-0A040iMXGA10202201-202304

main86300-0A070iMXGA10,MXGH10202304

86769HOUSING, ROOF ANTENNA

main86769-0E030iMXGA10,MXGH10202304

main86769-12010iMXGA10¥500202201-202304

90119C0307

main90119-C0307

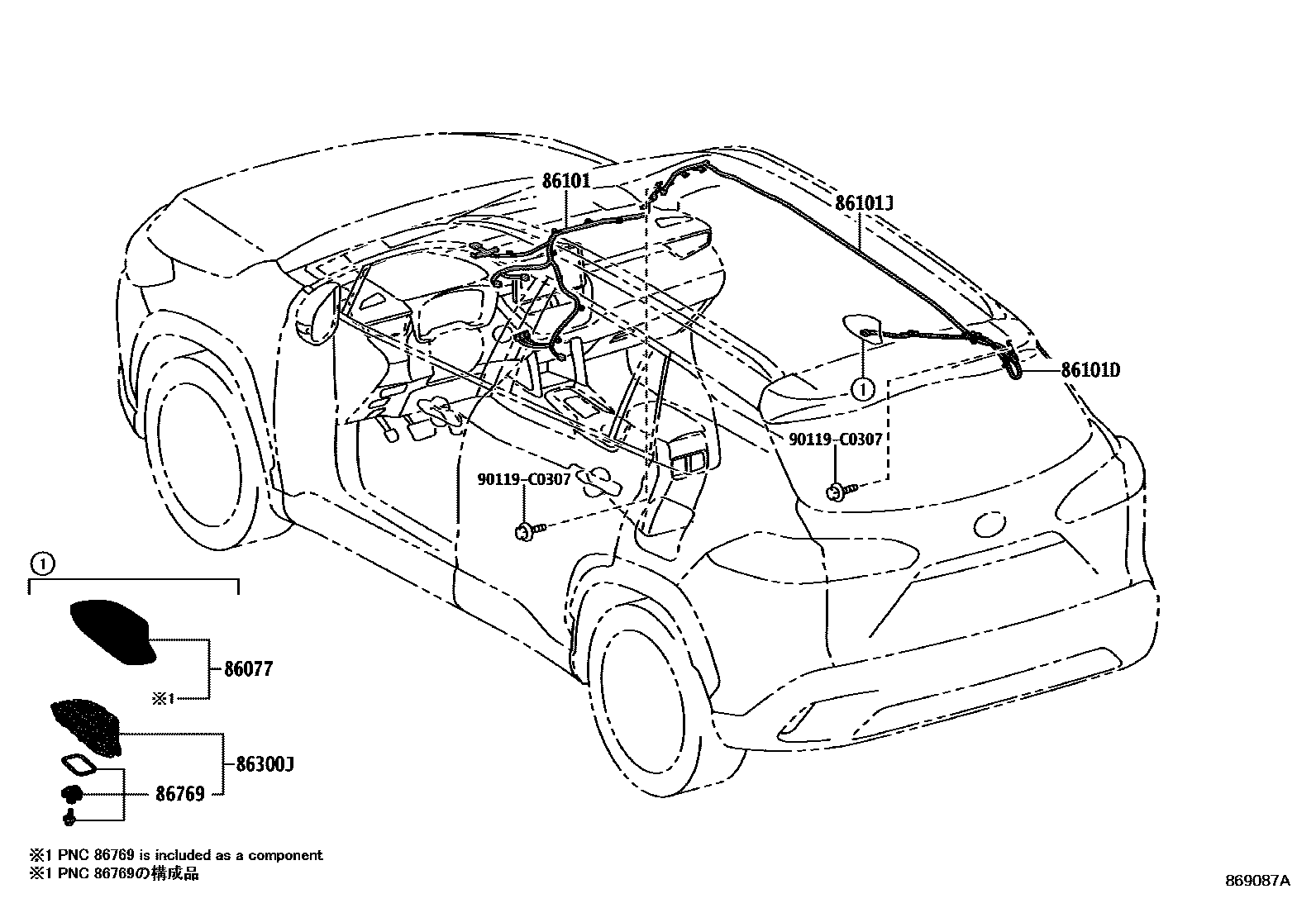

7 parts on this diagram · 1 diagram in section
