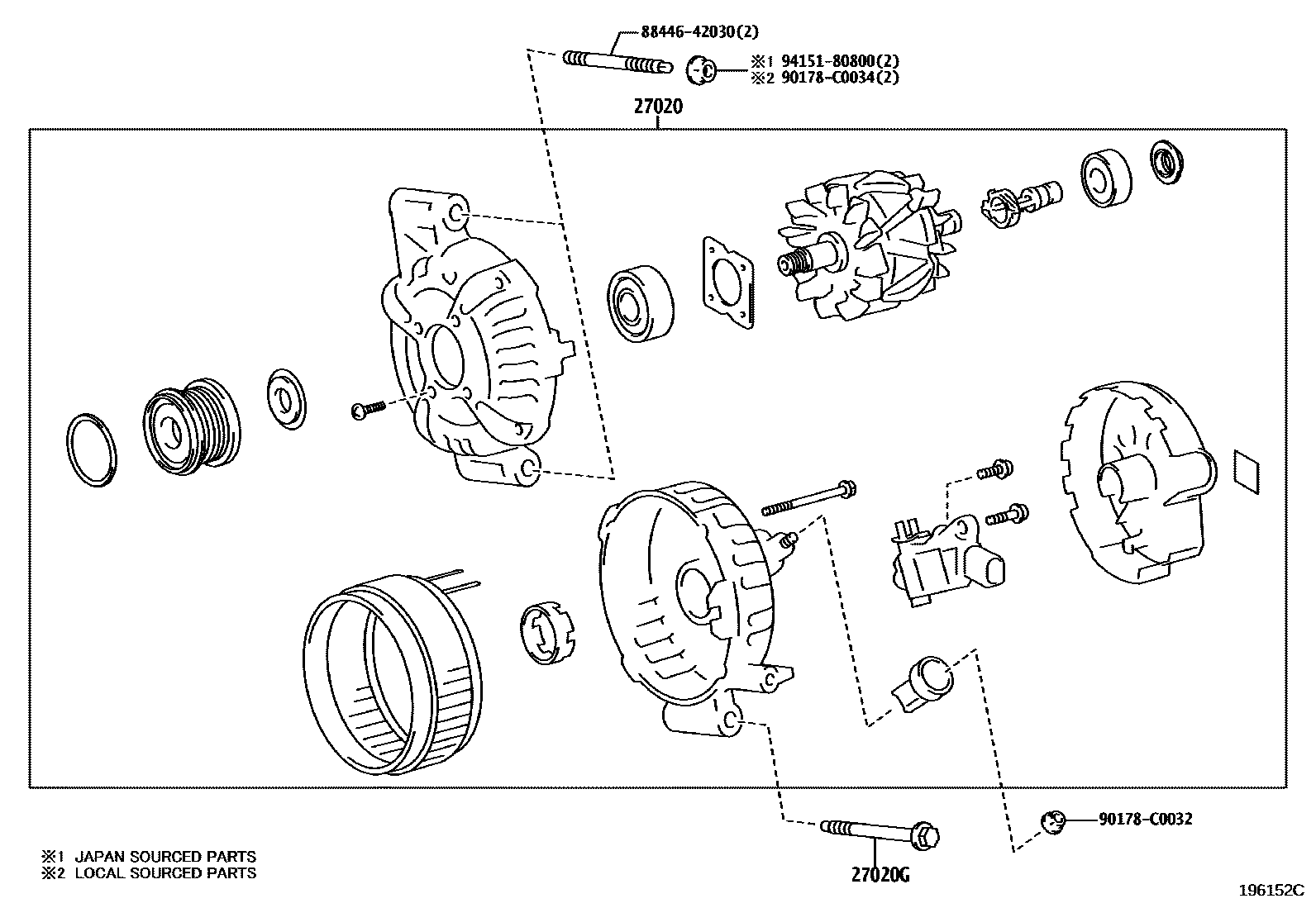

Toyota COROLLA CROSS (TFTM) — ALTERNATOR

27020ALTERNATOR ASSY

main27060-F2030iM20..MXGA10202201-202304

12V 120A

main27060-F2250iM20..MXGA10202304

12V 120A

27020GBOLT, NO.2(FOR ALTERNATOR)

main90119-08C78iM20..MXGA10¥0202201-202304

main90119-08C78iM20..MXGA10¥0202304

8844642030BOLT, IDLE PULLEY

main88446-42030¥0

90178C0032

main90178-C0032

90178C0034

main90178-C0034

9415180800

main94151-80800¥80

6 parts on this diagram · 1 diagram in section
