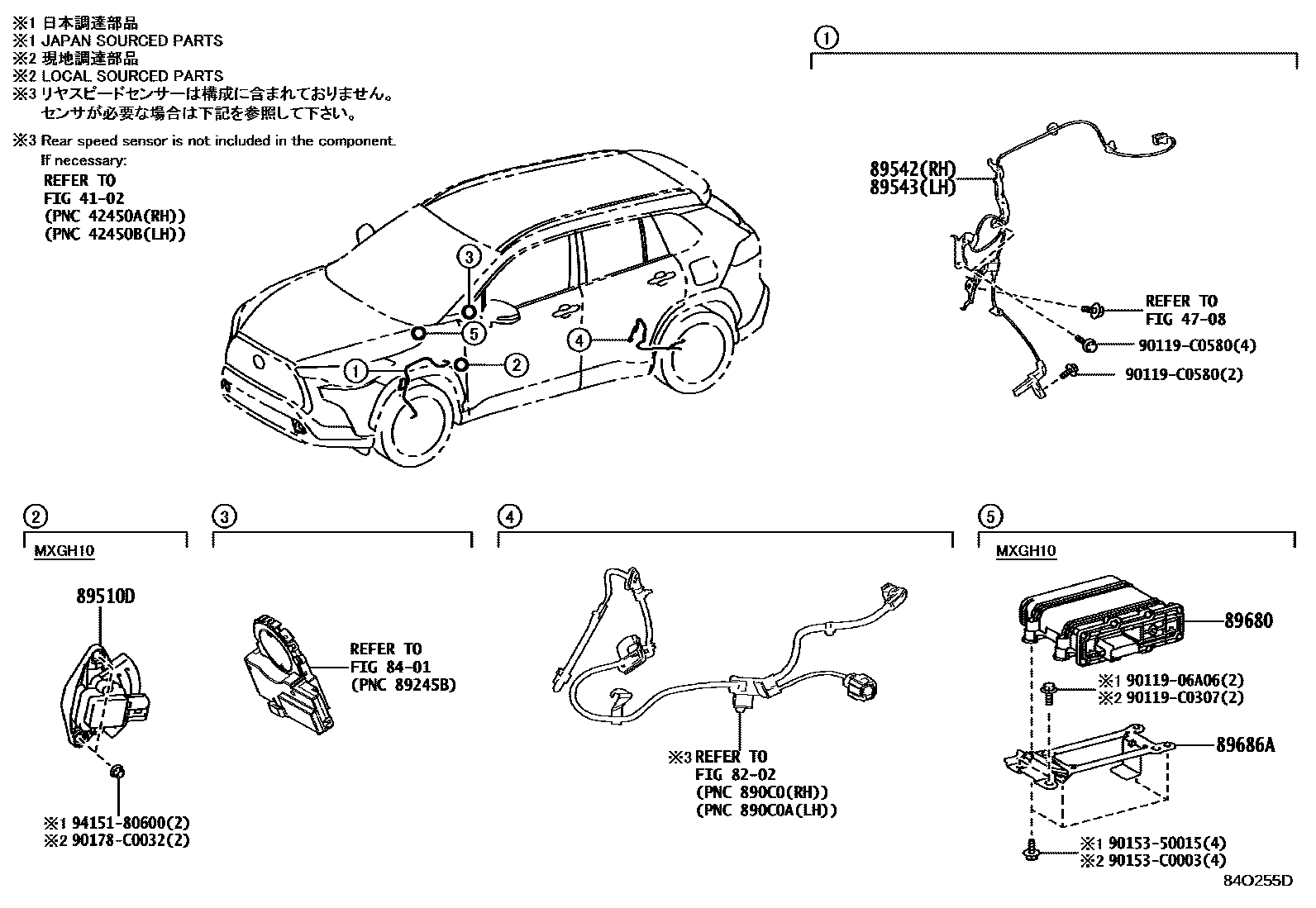

Toyota COROLLA CROSS (TFTM) — ABS & VSC

4102

4708

8202

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-K0011iMXGH10202307

89542SENSOR, SPEED, FRONT RH

main89542-0A060iMXGA10202201-202304

89543SENSOR, SPEED, FRONT LH

main89543-0A060iMXGA10202201-202304

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-0R020iMXGH10202307

89686ABRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-02030iMXGH10202307

9011906A06

main90119-06A06¥60

90119C0307

main90119-C0307

90119C0580

main90119-C0580

9015350015

main90153-50015¥60

90153C0003

main90153-C0003

90178C0032

main90178-C0032

9415180600

main94151-80600¥60

16 parts on this diagram · 1 diagram in section
