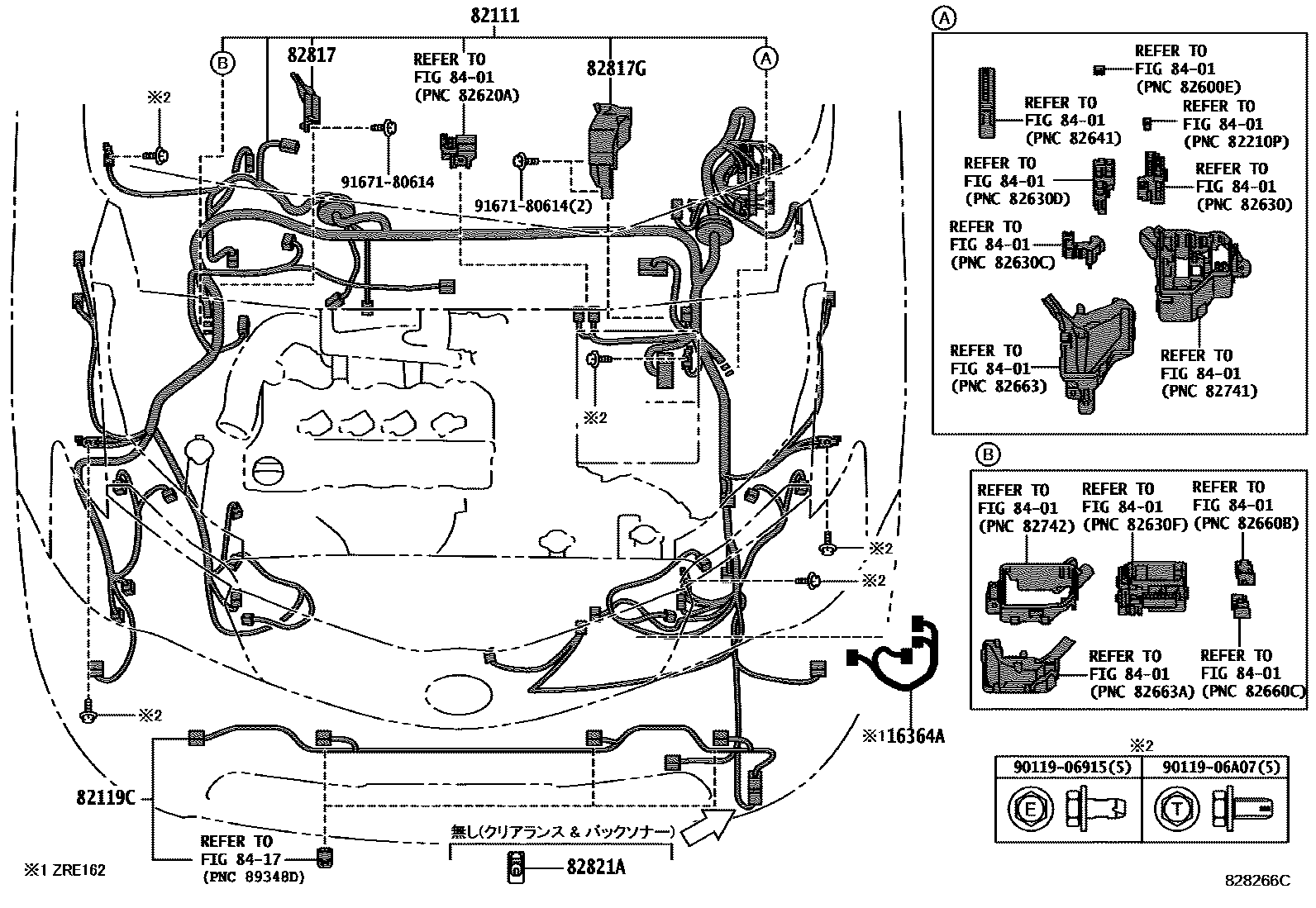

Toyota COROLLA AXIO/FIELDER — WIRING & CLAMP

0001 1�������� 0002 1�������� 0003 1����� 0004 1����� 0005 1����� 0006 1����� 0007 1����� 0008 1������������ 0009 1��� 0010 1��� & ��� 0011 1��� & ��� 0012 1��� 0013 1��������� 0014 1����� & ������ 0015 1����� & ������ 0016 1���� 1/2 0017 1���� 2/2

16364AWIRE, COOLING FAN

main16364-37020i2ZRFAE..ZRE162¥2,250201204-201908

82111WIRE, ENGINE ROOM MAIN

main82111-1AL40iNKE165..4D..HBD¥168,000201307-201503

main82111-1AL50iNKE165..4D..HBD¥186,000201307-201404

main82111-1AL50iNKE165..5D;NKE165..4D..HBDG¥186,000201307-201404

main82111-1HK92iNZE161..5F..X¥114,000201204-201503

main82111-1HL02iNZE161..5D..5F..X¥126,000201204-201503

main82111-1HL02iNZE161..4D..5F..X¥126,000201204-201503

main82111-1HL32iNRE160,NZE16#..4D..CVT..X¥114,000201204-201503

main82111-1HL42iNRE160¥126,000201204-201503

main82111-1HL42iNRE160¥126,000201204-201503

main82111-1HL42iNRE160¥126,000201204-201503

main82111-1HL42iNRE160¥126,000201204-201503

main82111-1HL42iNRE160¥126,000201204-201503

main82111-1HL42iNRE160¥126,000201204-201503

main82111-1HL62iNZE16#..5D..CVT..G¥139,000201204-201503

main82111-1HL62iNZE16#..5D..CVT..G¥139,000201204-201503

main82111-1HL62iNZE16#..5D..CVT..X¥139,000201204-201503

main82111-1HL62iNZE16#..5D..CVT..X¥139,000201204-201503

main82111-1HL62iNZE16#..5D..CVT..X¥139,000201204-201503

main82111-1HL62iNZE16#..5D..CVT..X¥139,000201204-201503

main82111-1HL62iNZE16#..5D..CVT..X¥139,000201204-201503

main82111-1HL62iNZE16#..5D..CVT..X¥139,000201204-201503

main82111-1HL62iNZE16#..5D..CVT..X¥139,000201204-201503

main82111-1HL62iNZE16#..5D..CVT..G¥139,000201204-201503

main82111-1HM22iZRE162¥139,000201204-201503

main82111-1HM72iNRE160,NZE16#..4D..CVT..X¥114,000201204-201503

main82111-1HS40iNZE161..5D..X¥115,000201503-201710

main82111-1HS41iNZE161..5D..X¥115,000201710-201909

main82111-1HS42iNZE161..5D¥95,300201909-202208

main82111-1HS43iNZE161..5D¥86,500202208

main82111-1HS60iNZE161..G;NZE161..4D..X¥115,000201503-201710

main82111-1HS61iNZE161..G;NZE161..4D..5F..X¥115,000201710-201909

main82111-1HS62iNZE161..4D..5F¥95,300201909-202208

main82111-1HS63iNZE161..KYO..5F¥86,500202208

main82111-1HT00iNZE164..5D..X¥115,000201503-201710

main82111-1HT01iNZE164..5D..X¥115,000201710-201909

main82111-1HT02iNZE164..5D¥95,300201909-202208

main82111-1HT03iNZE164..5D¥86,500202208

main82111-1HT23iNZE164..4D¥86,500202403

main82111-1HT40iZRE162¥115,000201503-201710

main82111-1HT41iZRE162¥115,000201710-201908

main82111-1HT71iNRE161..5D..X¥126,000201710-201909

main82111-1HT72iNRE161..5D¥104,000201909-202208

main82111-1HT73iNRE161..5D¥104,000202208-202403

main82111-1HT93iNRE161..4D¥94,200202208

main82111-1HU10iNKE165..5D..HBD¥155,000201503-201710

main82111-1HU11iNKE165..5D..HBD¥155,000201710-201909

main82111-1HU12iNKE165..5D¥155,000201909-202009

main82111-1HU13iNKE165..5D¥129,000202009-202208

main82111-1HU14iNKE165..5D¥129,000202208-202403

main82111-1HU50iNKE165..HBDG;NKE165..4D..HBD¥155,000201503-201710

main82111-1HU51iNKE165..4D..HBD;NKE165..5D..HBDG¥155,000201710-201909

main82111-1HU52iNKE165..4D¥155,000201909-202009

main82111-1HU53iNKE165..4D¥129,000202009-202208

main82111-1HU64iNKE165..4D¥128,000202208-202403

main82111-1HX10iNKE165..5D;NKE165..4D..HBDG¥168,000201404-201503

main82111-1HX10iNKE165..4D..HBD¥168,000201404-201503

main82111-1HX30iNZE164..G;NRE160,NZE164..4D..X¥105,000201503-201710

main82111-1HX31iNZE164..5D..G;NRE160,NZE164..4D..X¥105,000201710-201909

main82111-1HX32iNZE164..4D¥86,800201909-202208

main82111-1HX33iNZE164..4D¥86,800202208-202403

main82111-1HX50iNRE161..5D..X¥115,000201503-201710

main82111-1HX60iNRE161..4D..X¥105,000201503-201710

main82111-1HX61iNRE161..4D..X¥105,000201710-201909

main82111-1HX62iNRE161..4D¥86,800201909-202208

main82111-1HX70iNRE161..G¥105,000201503-201710

main82111-1HX71iNRE161..G¥115,000201710-201908

main82111-1KG70iNZE164..5D..G¥105,000201710-201908

main82111-1KG82iNRE161..5D¥94,200202403

main82111-1KJ03iNKE165..5D¥117,000202403

main82111-1KJ10iNKE165..5D..HBDG¥155,000201710-201908

main82111-1KJ13iNKE165..4D¥117,000202403

main82111-1KJ50iNZE161..CVT¥115,000201802-201909

main82111-1KJ51iNZE161..CVT¥95,300201909-202208

main82111-1KJ52iNZE161..CVT¥95,300202208-202403

main82111-1KJ53iNZE161..CVT¥86,500202403

main82111-1L790iNZE161..SED¥86,500202208

82119CWIRE, ENGINE ROOM, NO.5

main82119-12040iNKE165,NRE161,NZE164..4D..(G,HBDG)¥2,140201710

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-52C00iNRE16#,NZE16#,ZRE162¥510201204-201710

main82817-52D20iNKE165¥1,090201307-201710

82817GPROTECTOR, WIRING HARNESS, NO.8

main82817-52A20iNRE160,NZE16#,ZRE162¥1,410201204-201710

main82817-52D30iNKE165¥1,030201307-201710

82821ACOVER, CONNECTOR

main82119-12050iNRE160,NZE161,ZRE162;NKE165,NRE161,NZE164..5D;NKE165,NRE161,NZE164..4D..(HBD,X)¥210201710-202403

8401

8417

9011906915

main90119-06915¥60

9011906A07

main90119-06A07¥60

9167180614

main91671-80614¥60

11 parts on this diagram · 17 diagrams in section
