Toyota COROLLA AXIO/FIELDER — SIDE MOULDING

67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-12230iNKE165,NRE160,NZE16#,ZRE162¥1,870201204-201503

main67495-12240iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥1,180201710-201908

main67495-12240iNKE165,NRE16#,NZE16#,ZRE162¥1,180201503-201710

main67495-12240iNKE165,NRE161,NZE16#..HBD,X¥1,180201710

67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-12230iNKE165,NRE160,NZE16#,ZRE162¥1,870201204-201503

main67496-12240iNKE165,NRE16#,NZE16#,ZRE162¥1,180201503-201710

main67496-12240iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥1,180201710-201908

main67496-12240iNKE165,NRE161,NZE16#..HBD,X¥1,180201710

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-12190iNKE165,NRE16#,NZE16#..4D¥2,160201503-201710

main75555-12190iNKE165,NRE160,NZE16#..4D¥2,160201204-201503

main75555-12190iNRE161,NZE16#..4D..G;NKE165,NRE160..4D..(HBDG,X)¥2,160201710-201908

main75555-12190iNKE165,NRE161,NZE16#..4D..(HBD,X)¥2,160201710

main75555-13040iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥3,270201710-201908

main75555-13040iNKE165,NZE16#,ZRE162..5D¥3,270201204-201503

main75555-13040iNKE165,NRE161,NZE16#..5D..(HBD,X)¥3,270201710

main75555-13040iNKE165,NRE161,NZE16#,ZRE162..5D¥3,270201503-201710

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-12200iNKE165,NRE160,NZE16#..4D¥2,160201204-201503

main75556-12200iNKE165,NRE161,NZE16#..4D..(HBD,X)¥2,160201710

main75556-12200iNKE165,NRE16#,NZE16#..4D¥2,160201503-201710

main75556-12200iNRE161,NZE16#..4D..G;NKE165,NRE160..4D..(HBDG,X)¥2,160201710-201908

main75556-13040iNKE165,NZE16#,ZRE162..5D¥3,270201204-201503

main75556-13040iNKE165,NRE161,NZE16#,ZRE162..5D¥3,270201503-201710

main75556-13040iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥3,270201710-201908

main75556-13040iNKE165,NRE161,NZE16#..5D..(HBD,X)¥3,270201710

75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1

main75561-33030iNKE165,NRE160,NZE16#,ZRE162¥140201204-201503

main75561-33030iNKE165,NRE16#,NZE16#,ZRE162¥140201503-201710

main75561-33030iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥140201710-201908

main75561-33030iNKE165,NRE161,NZE16#..HBD,X¥140201710

75710MOULDING ASSY, FRONT DOOR BELT, RH

main75710-12A20iNKE165,NRE16#,NZE16#..HBD,X¥2,400201503-201710

main75710-12A20iNRE160¥2,400201710-201908

main75710-12A20iNKE165,NRE161,NZE16#..HBD,X¥2,400201710

main75710-12A20iNRE160,ZRE162;NKE165,NZE16#..5D;NKE165,NZE16#..4D..(HBD,X)¥2,400201204-201503

main75710-12A30iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S¥4,800201710-201908

main75710-12A30iNKE165,NZE16#..4D..(G,HBDG,LXL)¥4,800201204-201503

�f�@�d�c�h�s�h�n�m

main75710-12A30iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S¥4,800201503-201710

75720MOULDING ASSY, FRONT DOOR BELT, LH

main75720-12A00iNRE160,ZRE162;NKE165,NZE16#..5D;NKE165,NZE16#..4D..(HBD,X)¥2,400201204-201503

main75720-12A00iNKE165,NRE16#,NZE16#..HBD,X¥2,400201503-201710

main75720-12A00iNRE160¥2,400201710-201908

main75720-12A00iNKE165,NRE161,NZE16#..HBD,X¥2,400201710

main75720-12A10iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S¥4,800201503-201710

main75720-12A10iNKE165,NZE16#..4D..(G,HBDG,LXL)¥4,800201204-201503

�f�@�d�c�h�s�h�n�m

main75720-12A10iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S¥4,800201710-201908

75730MOULDING ASSY, REAR DOOR BELT, RH

main75730-12410iNRE160¥2,400201710-201908

main75730-12410iNKE165,NRE160,NZE16#..4D..(HBD,X)¥2,400201204-201503

main75730-12410iNKE165,NRE16#,NZE16#..4D..(HBD,X)¥2,400201503-201710

main75730-12410iNKE165,NRE161,NZE16#..4D..(HBD,X)¥2,400201710

main75730-12420iNKE165,NRE161,NZE16#..4D..(G,HBDG)¥4,800201503-201710

main75730-12420iNRE160¥4,800201204-201503

�f�@�d�c�h�s�h�n�m

main75730-12420iNKE165,NRE161,NZE16#..4D..(G,HBDG)¥4,800201710-201908

main75730-13070iNKE165,NZE16#,ZRE162..5D¥2,400201204-201503

main75730-13070iNKE165,NRE161,NZE16#..5D..(HBD,X)¥2,400201710

main75730-13070iNKE165,NRE161,NZE16#..5D..(HBD,X)¥2,400201503-201710

main75730-13080iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥4,800201710-201908

main75730-13080iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥4,800201503-201710

75740MOULDING ASSY, REAR DOOR BELT, LH

main75740-12500iNKE165,NRE161,NZE16#..4D..(HBD,X)¥2,400201710

main75740-12500iNKE165,NRE160,NZE16#..4D..(HBD,X)¥2,400201204-201503

main75740-12500iNKE165,NRE16#,NZE16#..4D..(HBD,X)¥2,400201503-201710

main75740-12500iNRE160¥2,400201710-201908

main75740-12510iNKE165,NZE16#..4D..(G,HBDG,LXL)¥4,800201204-201503

�f�@�d�c�h�s�h�n�m

main75740-12510iNKE165,NRE161,NZE16#..4D..(G,HBDG)¥4,800201503-201710

main75740-12510iNKE165,NRE161,NZE16#..4D..(G,HBDG)¥4,800201710-201908

main75740-13070iNKE165,NRE161,NZE16#..5D..(HBD,X)¥2,400201710

main75740-13070iNKE165,NRE161,NZE16#..5D..(HBD,X)¥2,400201503-201710

main75740-13070iNKE165,NZE16#,ZRE162..5D¥2,400201204-201503

main75740-13080iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥4,800201710-201908

main75740-13080iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥4,800201503-201710

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-12130iNKE165,NRE160,NZE16#,ZRE162¥1,480201204-201503

main75755-12130iNKE165,NRE16#,NZE16#,ZRE162¥1,480201503-201710

main75755-12130iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥1,480201710-201908

main75755-12130iNKE165,NRE161,NZE16#..HBD,X¥1,480201710

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-12150iNKE165,NRE160,NZE16#,ZRE162¥1,480201204-201503

main75756-12150iNKE165,NRE16#,NZE16#,ZRE162¥1,480201503-201710

main75756-12150iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥1,480201710-201908

main75756-12150iNKE165,NRE161,NZE16#..HBD,X¥1,480201710

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75761-12080iNKE165,NRE160,NZE16#,ZRE162¥1,480201204-201503

�h���s�v

main75761-12080iNKE165,NRE16#,NZE16#,ZRE162¥1,480201503-201710

�h���s�v

main75761-12080iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥1,480201710-201908

�h���s�v

main75761-12080iNKE165,NRE161,NZE16#..HBD,X¥1,480201710

�h���s�v

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75762-12080iNKE165,NRE160,NZE16#,ZRE162¥1,480201204-201503

�h���s�v

main75762-12080iNKE165,NRE16#,NZE16#,ZRE162¥1,480201503-201710

�h���s�v

main75762-12080iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥1,480201710-201908

�h���s�v

main75762-12080iNKE165,NRE161,NZE16#..HBD,X¥1,480201710

�h���s�v

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-12120iNRE161,NZE16#..4D..G;NKE165,NRE160..4D..(HBDG,X)¥810201710-201908

main75765-12120iNKE165,NRE160,NZE16#..4D¥810201204-201503

main75765-12120iNKE165,NRE16#,NZE16#..4D¥810201503-201710

main75765-12120iNKE165,NRE161,NZE16#..4D..(HBD,X)¥810201710

main75765-13030iNKE165,NRE161,NZE16#,ZRE162..5D¥1,480201503-201710

main75765-13030iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥1,480201710-201908

main75765-13030iNKE165,NRE161,NZE16#..5D..(HBD,X)¥1,480201710

main75765-13030iNKE165,NZE16#,ZRE162..5D¥1,480201204-201503

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-12120iNKE165,NRE160,NZE16#..4D¥810201204-201503

main75766-12120iNKE165,NRE161,NZE16#..4D..(HBD,X)¥810201710

main75766-12120iNRE161,NZE16#..4D..G;NKE165,NRE160..4D..(HBDG,X)¥810201710-201908

main75766-12120iNKE165,NRE16#,NZE16#..4D¥810201503-201710

main75766-13030iNKE165,NRE161,NZE16#,ZRE162..5D¥1,480201503-201710

main75766-13030iNKE165,NZE16#,ZRE162..5D¥1,480201204-201503

main75766-13030iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥1,480201710-201908

main75766-13030iNKE165,NRE161,NZE16#..5D..(HBD,X)¥1,480201710

75792CLIP, DOOR WINDOW FRAME MOULDING

main75792-47010iNKE165,NRE160,NZE16#,ZRE162¥70201204-201503

main75792-47010iNKE165,NRE16#,NZE16#,ZRE162¥70201503-201710

main75792-47010iNKE165,NRE16#,NZE16#,ZRE162¥70201710

9046707227

main90467-07227¥80

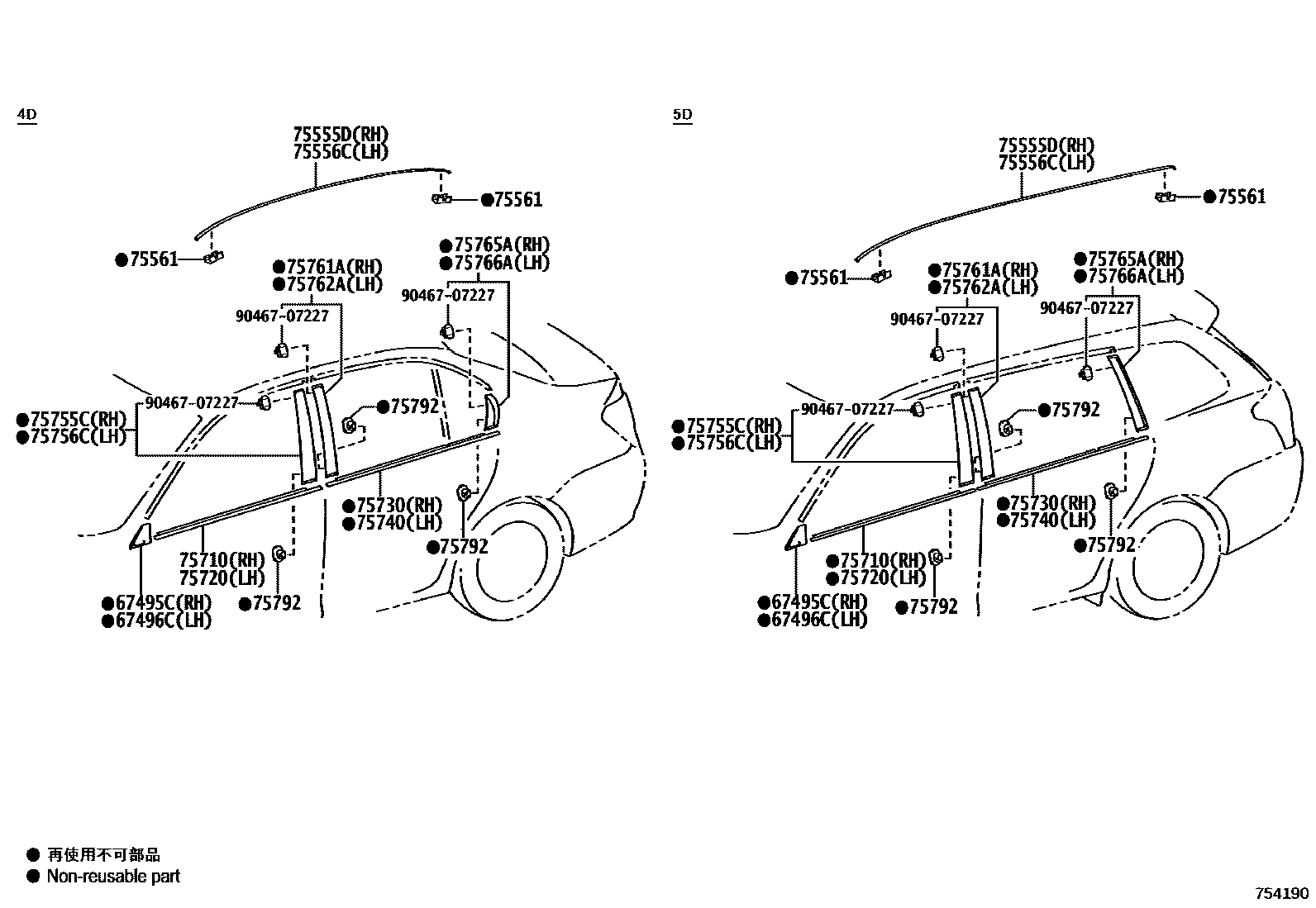

17 parts on this diagram · 1 diagram in section
