Toyota COROLLA AXIO/FIELDER — SHORT BLOCK ASSEMBLY

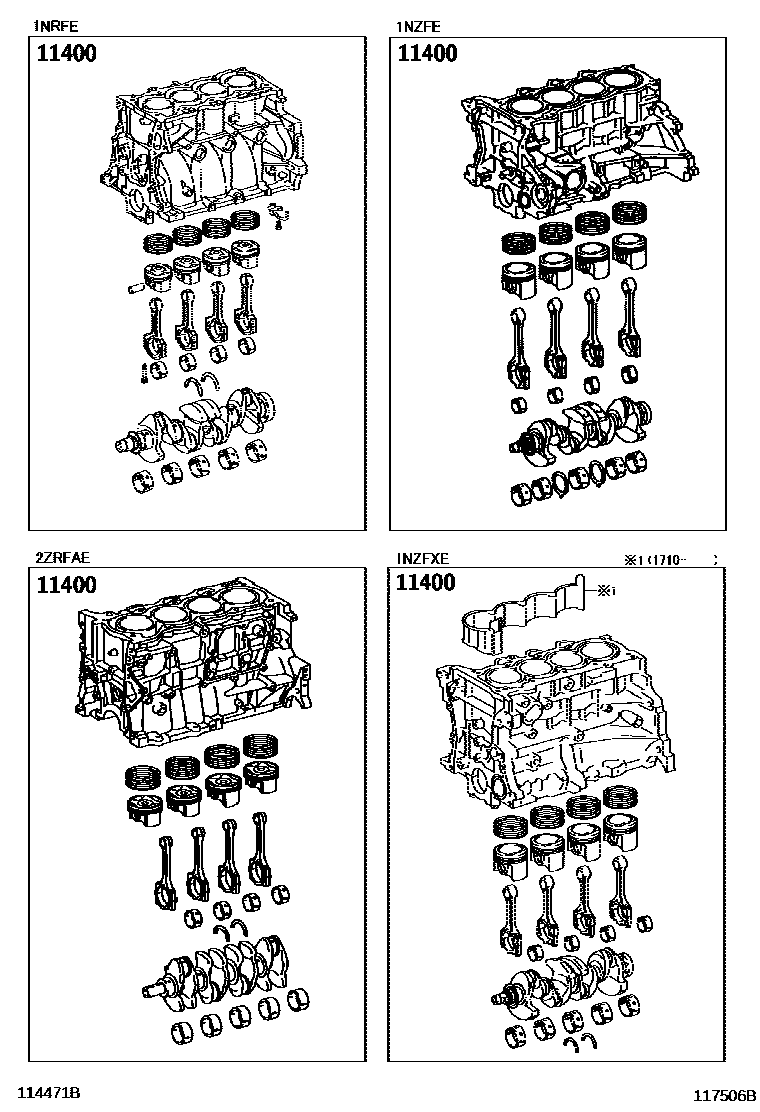

Parts diagram

11400BLOCK ASSY, SHORT

main11400-21193i¥188,000201503-201710

main11400-21193i¥188,000201710

main11400-21193i¥188,000201204-201503

main11400-21430i¥208,000201503-201710

main11400-21430i¥208,000201307-201503

main11400-21441i¥188,000201802

main11400-21441i¥188,000201206-201503

main11400-21490i¥188,000201710

main11400-37190i¥236,000201503-201710

main11400-37190i¥236,000201204-201503

main11400-37190i¥236,000201710-201908

main11400-47090i¥271,000201204-201301

sub11400-47091¥271,000

main11400-47091i¥271,000201301-201305

main11400-47140i¥171,000201710-201908

main11400-47140i¥171,000201305-201503

main11400-47140i¥171,000201503-201710

main11400-47210i¥188,000201503-201710

main11400-47210i¥188,000201710

1 parts on this diagram · 2 diagrams in section
