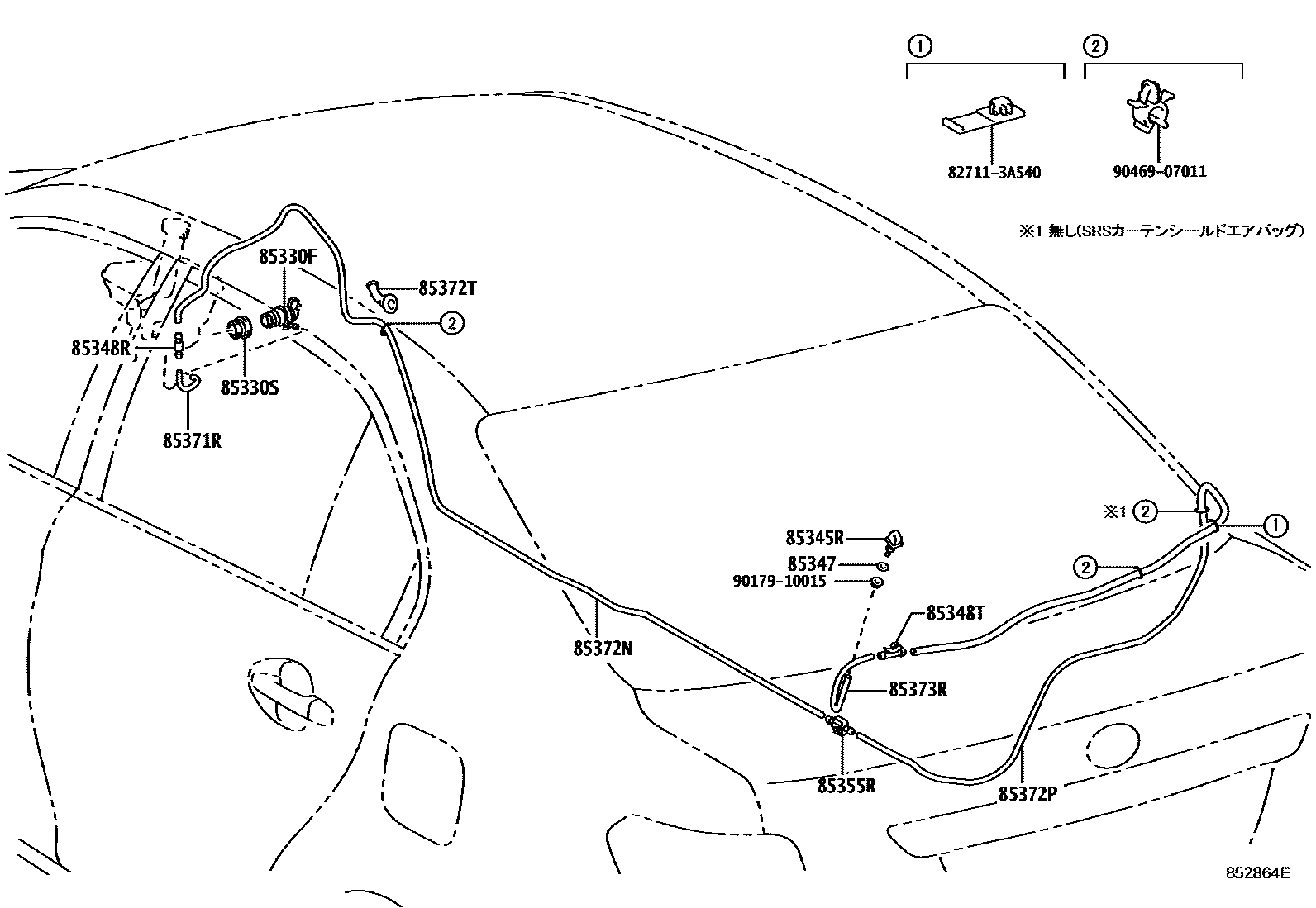

Toyota COROLLA AXIO/FIELDER — REAR WASHER

0001 1 0002 1

85330FMOTOR & PUMP ASSY, RR WASHER

main85330-60160iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥0201204-201908

85330SBUSH, REAR WASHER JAR

main85336-60300iNKE165,NRE16#,NZE16#..4D¥0201204-201908

85345RNOZZLE, REAR WASHER

main85391-13060iNKE165,NZE16#,ZRE162..5D201204-201908

85347PACKING, REAR WASHER

main85347-12010

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iNKE165,NRE16#,NZE16#..4D201204-201908

main85349-89122iNKE165,NRE161,NZE16#,ZRE162..5D201503-201710

main85349-89122iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)201710-201908

85348TJOINT, REAR WASHER HOSE, NO.2

85355RVALVE, REAR WASHER HOSE

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33080iNKE165,NRE161,NZE16#..5D..(HBD,X)201204-201908

main90099-33080iNKE165,NZE16#,ZRE162..5D201204-201908

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33595iNKE165,NZE16#,ZRE162..5D201204-201503

main90099-59369iNKE165,NRE161,NZE16#,ZRE162..5D201503-201908

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

85372TGROMMET, WASHER

main85379-52530iNKE165,NRE16#,NZE16#..4D201204-201908

main85379-52530iNKE165,NRE161,NZE16#,ZRE162..5D201503-201710

main85379-52530iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)201710-201908

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iNKE165,NZE16#,ZRE162..5D201204-201908

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540¥90

9017910015

main90179-10015¥100

9046907011

main90469-07011¥110

15 parts on this diagram · 2 diagrams in section
