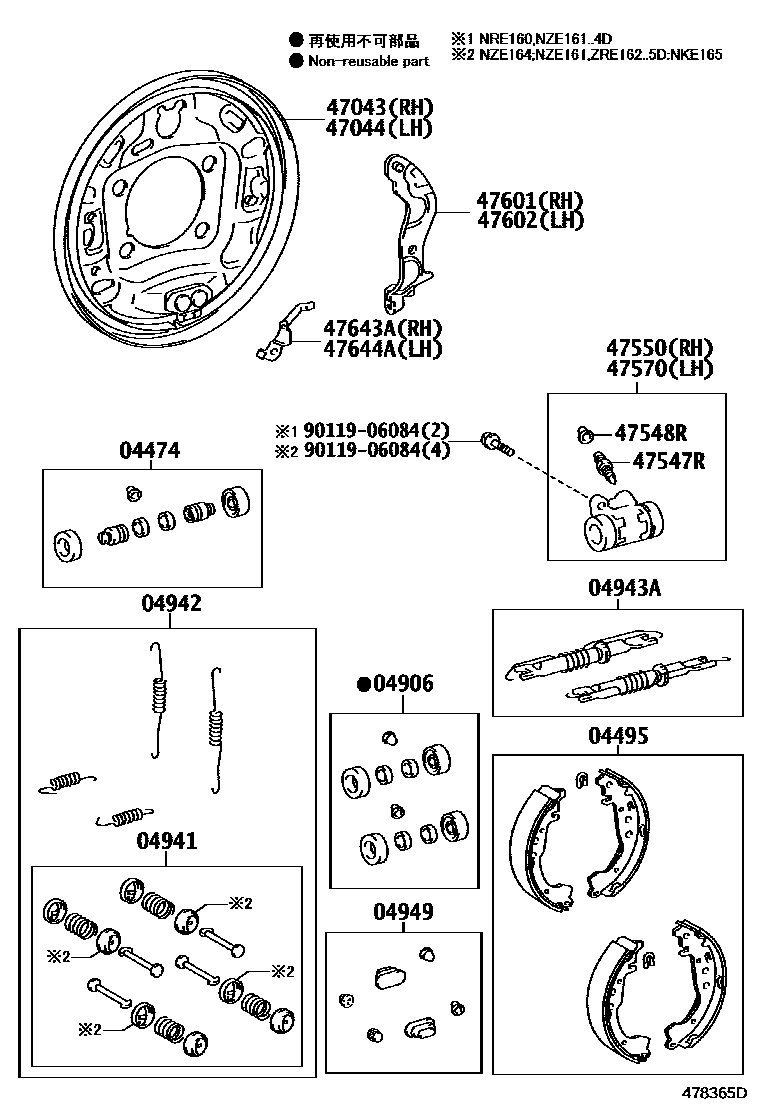

Toyota COROLLA AXIO/FIELDER — REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0003 1

04474CYLINDER KIT, REAR WHEEL

main04474-52020iNRE160;NRE161,NZE161..4D..G¥1,730201710-201908

main04474-52020iNRE160,NZE161..4D¥1,730201204-201503

main04474-52020iNRE161,NZE161..4D..X¥1,730201710

main04474-52020iNRE16#,NZE161..4D¥1,730201503-201710

main04474-52140iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥1,570201710-201908

main04474-52140iNZE161..5D;NKE165,NZE164,ZRE162¥1,570201204-201503

main04474-52140iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥1,570201503-201710

main04474-52140iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥1,570201710

04495SHOE KIT, REAR BRAKE

main04495-52100iNRE160,NZE161..4D¥6,300201204-201306

�}�[�N�@�m�a�j�@�k�m�T�Q�P

sub04495-52140¥6,300

main04495-52120iNZE161..5D;NKE165,NZE164,ZRE162¥7,600201204-201404

�}�[�N�@�m�a�j�@�k�m�T�Q�P

sub04495-52121¥4,700

main04495-52121iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥4,700201503-201710

�}�[�N�@�m�a�j�@�k�m�T�Q�P

main04495-52121iNZE161..5D;NKE165,NZE164,ZRE162¥4,700201404-201503

�}�[�N�@�m�a�j�@�k�m�T�Q�P

main04495-52121iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥4,700201710-201908

�}�[�N�@�m�a�j�@�k�m�T�Q�P

main04495-52121iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥4,700201710

�}�[�N�@�m�a�j�@�k�m�T�Q�P

main04495-52150iNRE160,NZE161..4D¥7,100201306-201403

�}�[�N�@�m�a�j�@�k�m�T�Q�P,�s�x�o�d�@�`�F�C���X�g�Q��

main04495-52170iNRE160;NRE161,NZE161..4D..G¥3,440201710-201908

�}�[�N�@�m�a�j�@�k�m�T�Q�P

main04495-52170iNRE16#,NZE161..4D¥3,440201503-201710

�}�[�N�@�m�a�j�@�k�m�T�Q�P

main04495-52170iNRE161,NZE161..4D..X¥3,440201710

�}�[�N�@�m�a�j�@�k�m�T�Q�P

main04495-52170iNRE160,NZE161..4D¥3,440201403-201503

�}�[�N�@�m�a�j�@�k�m�T�Q�P,�s�x�o�d�@�a�F�C���X�g�Q��

04906CUP KIT, REAR WHEEL CYLINDER

main04906-10021iNRE160,NZE161..4D¥870201204-201503

main04906-10021iNRE16#,NZE161..4D¥870201503-201710

main04906-10021iNRE160;NRE161,NZE161..4D..G¥870201710-201908

main04906-10021iNRE161,NZE161..4D..X¥870201710

main04906-28040iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥870201710

main04906-28040iNZE161..5D;NKE165,NZE164,ZRE162¥870201204-201503

main04906-28040iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥870201710-201908

main04906-28040iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥870201503-201710

04941SPRING KIT, REAR BRAKE SHOE HOLD DOWN

main04941-28010iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥1,860201503-201710

main04941-28010iNZE161..5D;NKE165,NZE164,ZRE162¥1,860201204-201503

main04941-28010iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥1,860201710-201908

main04941-28010iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥1,860201710

main04941-46010iNRE160,NZE161..4D¥1,690201204-201503

main04941-46010iNRE160;NRE161,NZE161..4D..G¥1,690201710-201908

main04941-46010iNRE16#,NZE161..4D¥1,690201503-201710

main04941-46010iNRE161,NZE161..4D..X¥1,690201710

04942SPRING KIT, REAR BRAKE

main04942-13030iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥2,070201503-201710

main04942-13030iNZE161..5D;NKE165,NZE164,ZRE162¥2,070201204-201503

main04942-13030iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥2,070201710-201908

main04942-13030iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥2,070201710

main04942-52050iNRE161,NZE161..4D..X¥2,060201710

main04942-52050iNRE160;NRE161,NZE161..4D..G¥2,060201710-201908

main04942-52050iNRE160,NZE161..4D¥2,060201204-201503

main04942-52050iNRE16#,NZE161..4D¥2,060201503-201710

04943ASTRUT KIT, REAR BRAKE

main04943-12010iNRE16#,NZE161..4D¥2,730201503-201710

main04943-12010iNRE160,NZE161..4D¥2,730201204-201503

main04943-12010iNRE160;NRE161,NZE161..4D..G¥2,730201710-201908

main04943-12010iNRE161,NZE161..4D..X¥2,730201710

main04943-52030iNZE161..5D;NKE165,NZE164,ZRE162¥2,460201204-201503

main04943-52030iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥2,460201710-201908

main04943-52030iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥2,460201710

main04943-52030iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥2,460201503-201710

04949PLUG KIT, REAR BRAKE

main04949-12010iNRE161,NZE161..4D..X¥800201710

main04949-12010iNRE16#,NZE161..4D¥800201503-201710

main04949-12010iNRE160;NRE161,NZE161..4D..G¥800201710-201908

main04949-12010iNRE160,NZE161..4D¥800201204-201503

main04949-13010iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥800201710

main04949-13010iNZE161..5D;NKE165,NZE164,ZRE162¥800201204-201503

main04949-13010iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥800201710-201908

main04949-13010iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥800201503-201710

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-52100iNRE161,NZE161..4D..X¥2,370201710

main47043-52100iNRE160,NZE161..4D¥2,370201204-201503

main47043-52100iNRE16#,NZE161..4D¥2,370201503-201710

main47043-52100iNRE160;NRE161,NZE161..4D..G¥2,370201710-201908

main47043-52120iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥2,810201710-201908

main47043-52120iNZE161..5D;NKE165,NZE164,ZRE162¥2,810201204-201503

main47043-52120iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥2,810201503-201710

main47043-52120iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥2,810201710

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-52100iNRE16#,NZE161..4D¥2,370201503-201710

main47044-52100iNRE160,NZE161..4D¥2,370201204-201503

main47044-52100iNRE160;NRE161,NZE161..4D..G¥2,370201710-201908

main47044-52100iNRE161,NZE161..4D..X¥2,370201710

main47044-52120iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥2,810201710

main47044-52120iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥2,810201710-201908

main47044-52120iNZE161..5D;NKE165,NZE164,ZRE162¥2,810201204-201503

main47044-52120iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥2,810201503-201710

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iNRE160;NRE161,NZE161..4D..G¥200201710-201908

main47547-20010iNRE160,NZE161..4D¥200201204-201503

main47547-20010iNRE16#,NZE161..4D¥200201503-201710

main47547-20010iNRE161,NZE161..4D..X¥200201710

main47547-27030iNZE161..5D;NKE165,NZE164,ZRE162¥180201204-201503

main47547-27030iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥180201710-201908

main47547-27030iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥180201710

main47547-27030iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥180201503-201710

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iNKE165,NRE16#,NZE16#,ZRE162¥160201503-201710

main31478-30010iNKE165,NRE160,NZE16#,ZRE162¥160201204-201503

main31478-30010iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥160201710-201908

main31478-30010iNKE165,NRE161,NZE16#..HBD,X¥160201710

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-20211iNRE161,NZE161..4D..X¥3,130201710

main47550-20211iNRE160,NZE161..4D¥3,130201204-201503

main47550-20211iNRE16#,NZE161..4D¥3,130201503-201710

main47550-20211iNRE160;NRE161,NZE161..4D..G¥3,130201710-201908

main47550-28060iNZE161..5D;NKE165,NZE164,ZRE162¥3,560201204-201503

main47550-28060iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥3,560201710-201908

main47550-28060iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥3,560201710

main47550-28060iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥3,560201503-201710

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47550-28060iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥3,560201710-201908

main47550-28060iNZE161..5D;NKE165,NZE164,ZRE162¥3,560201204-201503

main47550-28060iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥3,560201710

main47550-28060iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥3,560201503-201710

main47570-20101iNRE160,NZE161..4D¥3,130201204-201503

main47570-20101iNRE16#,NZE161..4D¥3,130201503-201710

main47570-20101iNRE160;NRE161,NZE161..4D..G¥3,130201710-201908

main47570-20101iNRE161,NZE161..4D..X¥3,130201710

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-12480iNZE161..5D;NKE165,NZE164,ZRE162¥580201204-201404

main47601-52100iNRE160,NZE161..4D¥580201204-201306

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-12480iNZE161..5D;NKE165,NZE164,ZRE162¥580201204-201404

main47602-52100iNRE160,NZE161..4D¥580201204-201306

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iNRE160,NZE161..4D¥200201204-201403

main47643-52102iNRE161,NZE161..4D..X¥200201710

main47643-52102iNRE160;NRE161,NZE161..4D..G¥200201710-201908

main47643-52102iNRE160,NZE161..4D¥200201403-201503

main47643-52102iNRE16#,NZE161..4D¥200201503-201710

main47643-52120iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥200201503-201710

main47643-52120iNZE161..5D;NKE165,NZE164,ZRE162¥200201204-201503

main47643-52120iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥200201710-201908

main47643-52120iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥200201710

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iNRE160,NZE161..4D¥200201204-201403

main47644-52102iNRE160,NZE161..4D¥200201403-201503

main47644-52102iNRE16#,NZE161..4D¥200201503-201710

main47644-52102iNRE160;NRE161,NZE161..4D..G¥200201710-201908

main47644-52102iNRE161,NZE161..4D..X¥200201710

main47644-52120iNZE161..5D;NKE165,NZE164,ZRE162¥200201204-201503

main47644-52120iNKE165,NZE164¥200201710

main47644-52120iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥200201503-201710

9011906084

main90119-06084¥100

18 parts on this diagram · 2 diagrams in section
