Toyota COROLLA AXIO/FIELDER — REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iNRE160,NZE16#,ZRE162¥2,950201204-201206

sub68750-20122¥1,850

main68750-20122iNKE165,NRE160,NZE16#,ZRE162¥1,850201206-201908

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iNRE160,NZE16#,ZRE162¥2,950201204-201206

sub68760-20122¥1,850

main68760-20122iNKE165,NRE160,NZE16#,ZRE162¥1,850201206-201908

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iNKE165,NRE160,NZE16#,ZRE162¥1,850201204-201908

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iNKE165,NRE160,NZE16#,ZRE162¥1,850201204-201908

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-12200iNKE165,NRE160,NZE16#,ZRE162¥3,150201204-201908

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-12200iNKE165,NRE160,NZE16#,ZRE162¥3,150201204-201908

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52060iNKE165,NRE160,NZE16#,ZRE162¥400201204-201908

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52060iNKE165,NRE160,NZE16#,ZRE162¥400201204-201908

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-12020iNKE165,NRE160,NZE16#,ZRE162¥370201204-201908

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-12480iNKE165,NRE160,NZE16#,ZRE162¥33,300201204-201503

main85720-12510iNKE165,NRE16#,NZE16#,ZRE162¥20,900201503-201908

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-12480iNKE165,NRE160,NZE16#,ZRE162¥33,300201204-201503

main85710-12520iNKE165,NRE16#,NZE16#,ZRE162¥20,900201503-201908

9010506260

main90105-06260¥60

9010508448

main90105-08448¥80

9010508485

main90105-08485¥80

9016850040

main90168-50040¥70

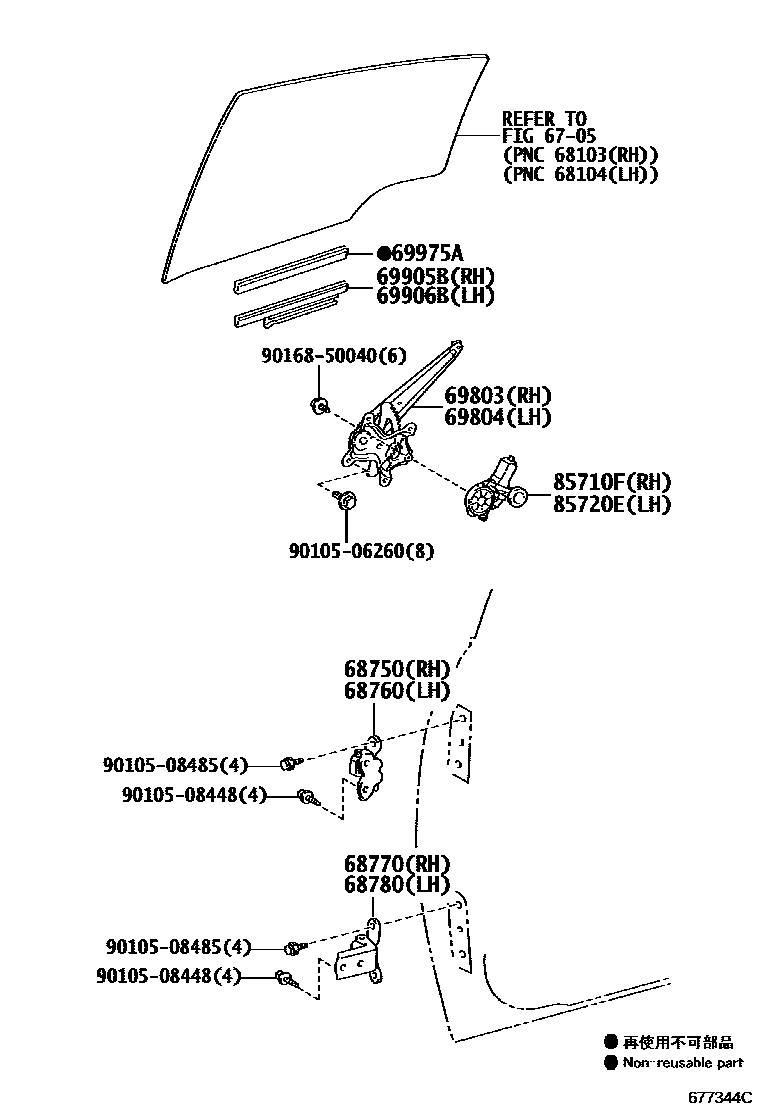

16 parts on this diagram · 1 diagram in section
