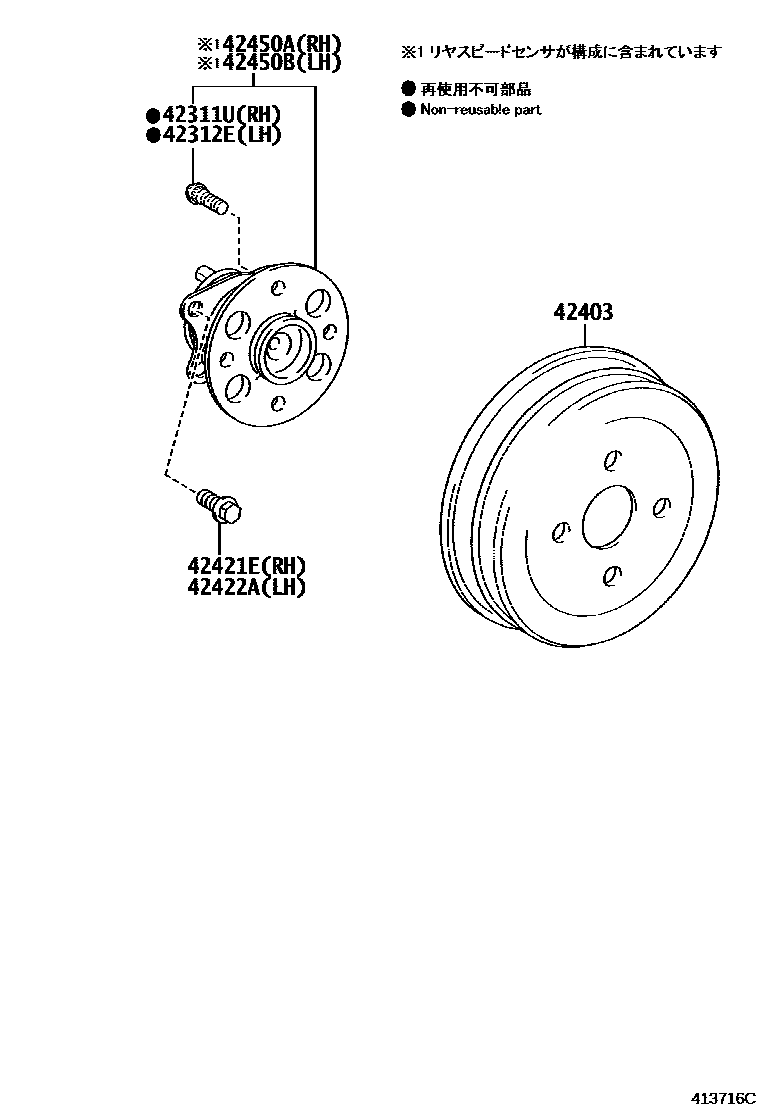

Toyota COROLLA AXIO/FIELDER — REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iNKE165,NRE16#,NZE16#,ZRE162¥240201503-201710

main90942-02049iNKE165,NRE160,NZE16#,ZRE162¥240201204-201503

main90942-02049iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥240201710-201908

main90942-02049iNKE165,NRE161,NZE16#..HBD,X¥240201710

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iNKE165,NRE160,NZE16#,ZRE162¥240201204-201503

main90942-02049iNKE165,NRE16#,NZE16#,ZRE162¥240201503-201710

main90942-02049iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥240201710-201908

main90942-02049iNKE165,NRE161,NZE16#..HBD,X¥240201710

42403DRUM SUB-ASSY, REAR BRAKE

main42431-52070iNRE161,NZE161..4D..X¥6,500201710

main42431-52070iNRE160,NZE161..4D¥6,500201204-201503

main42431-52070iNRE16#,NZE161..4D¥6,500201503-201710

main42431-52070iNRE160;NRE161,NZE161..4D..G¥6,500201710-201908

main42431-52090iNZE161..5D;NKE165,NZE164,ZRE162¥7,800201204-201503

main42431-52090iNRE161,NZE161..5D..G;NKE165,NZE164,ZRE162..G,HBDG,S¥7,800201710-201908

main42431-52090iNKE165,NZE164..HBD,X;NRE161,NZE161..5D..X¥7,800201710

main42431-52090iNRE161,NZE161..5D;NKE165,NZE164,ZRE162¥7,800201503-201710

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iNKE165,NRE161,NZE161..HBD,X¥160201710

main90105-12350iNKE165,NRE160,NZE161,ZRE162¥160201204-201503

main90105-12350iNKE165,NRE16#,NZE161,ZRE162¥160201503-201710

main90105-12350iNRE161,NZE161..G;NKE165,NRE160,ZRE162..HBDG,S,X¥160201710-201908

main90105-12351iNZE164..G¥190201710-201908

main90105-12351iNZE164¥190201503-201710

main90105-12351iNZE164¥190201204-201503

main90105-12351iNZE164..X¥190201710

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iNKE165,NRE16#,NZE161,ZRE162¥160201503-201710

main90105-12350iNKE165,NRE160,NZE161,ZRE162¥160201204-201503

main90105-12350iNRE161,NZE161..G;NKE165,NRE160,ZRE162..HBDG,S,X¥160201710-201908

main90105-12350iNKE165,NRE161,NZE161..HBD,X¥160201710

main90105-12351iNZE164¥190201204-201503

main90105-12351iNZE164..G¥190201710-201908

main90105-12351iNZE164..X¥190201710

main90105-12351iNZE164¥190201503-201710

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-52060iNZE164¥9,000201204-201503

main42410-52060iNZE164..X¥9,000201710

main42410-52060iNZE164¥9,000201503-201710

main42410-52060iNZE164..G¥9,000201710-201908

main42450-52060iNKE165,NRE16#,NZE161,ZRE162¥28,700201503-201612

sub42450-52061¥18,100

main42450-52060iNKE165,NRE160,NZE161,ZRE162¥28,700201204-201503

sub42450-52061¥18,100

main42450-52061iNKE165,NRE161,NZE161..HBD,X¥18,100201710

main42450-52061iNKE165,NRE16#,NZE161,ZRE162¥18,100201701-201710

main42450-52061iNRE161,NZE161..G;NKE165,NRE160,ZRE162..HBDG,S,X¥18,100201710-201908

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-52060iNZE164¥9,000201503-201710

main42410-52060iNZE164..G¥9,000201710-201908

main42410-52060iNZE164¥9,000201204-201503

main42410-52060iNZE164..X¥9,000201710

main42450-52060iNKE165,NRE16#,NZE161,ZRE162¥28,700201503-201612

sub42450-52061¥18,100

main42450-52060iNKE165,NRE160,NZE161,ZRE162¥28,700201204-201503

sub42450-52061¥18,100

main42450-52061iNRE161,NZE161..G;NKE165,NRE160,ZRE162..HBDG,S,X¥18,100201710-201908

main42450-52061iNKE165,NRE16#,NZE161,ZRE162¥18,100201701-201710

main42450-52061iNKE165,NRE161,NZE161..HBD,X¥18,100201710

7 parts on this diagram · 3 diagrams in section
