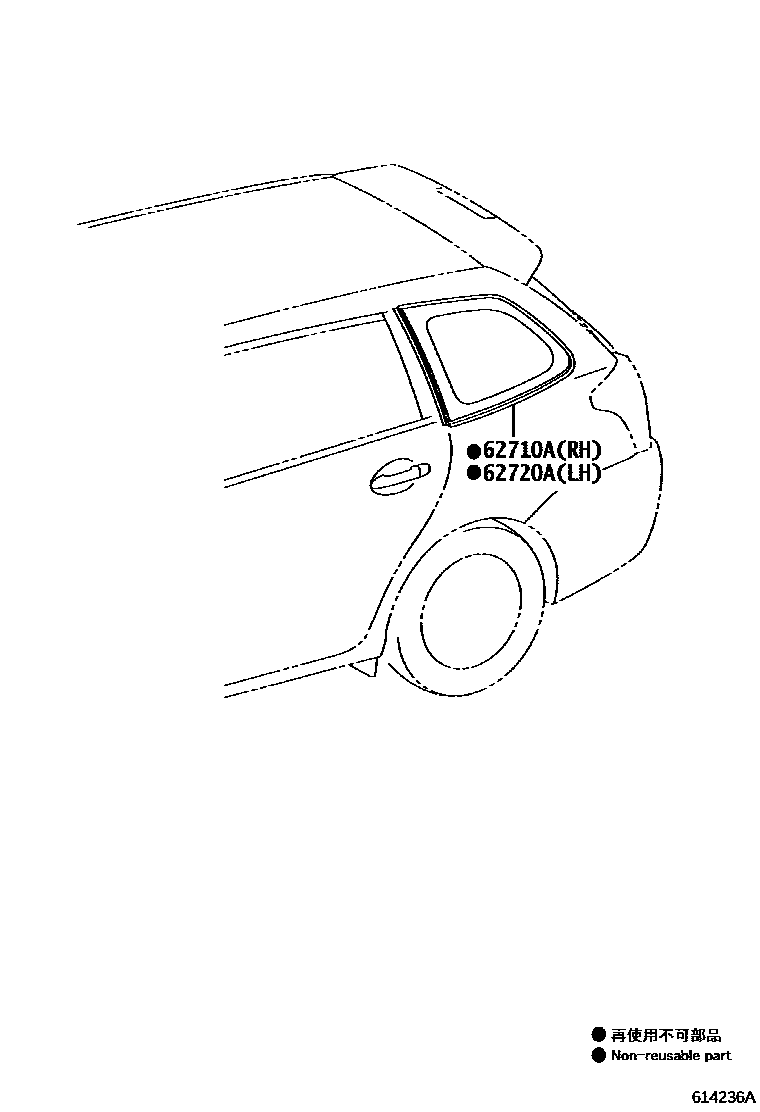

Toyota COROLLA AXIO/FIELDER — QUARTER WINDOW

62710AWINDOW ASSY, QUARTER, RH

main62710-13220iNKE165,NRE161,NZE16#..5D..(HBD,X)¥26,000201503-201710

sub62710-13260¥19,600

main62710-13220iNKE165,NZE16#..5D..(HBD,X)¥26,000201204-201503

sub62710-13260¥19,600

main62710-13230iNKE165,NZE16#..5D..(HBD,X)¥26,200201204-201503

�o�b�N�K���X�|�L���i�v���C�o�V�[�K���X�j

sub62710-13270¥19,700

main62710-13250iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥47,600201503-201710

main62710-13260iNKE165,NRE161,NZE16#..5D..(HBD,X)¥19,600201710

main62710-13280iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥47,600201710-201908

62720AWINDOW ASSY, QUARTER, LH

main62720-13220iNKE165,NZE16#..5D..(HBD,X)¥26,000201204-201503

sub62720-13260¥19,600

main62720-13220iNKE165,NRE161,NZE16#..5D..(HBD,X)¥26,000201503-201710

sub62720-13260¥19,600

main62720-13230iNKE165,NZE16#..5D..(HBD,X)¥26,200201204-201503

�o�b�N�K���X�|�L���i�v���C�o�V�[�K���X�j

sub62720-13270¥19,700

main62720-13250iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥47,600201503-201710

main62720-13260iNKE165,NRE161,NZE16#..5D..(HBD,X)¥19,600201710

main62720-13280iNKE165,NRE161,NZE16#,ZRE162..5D..(G,HBDG,S)¥47,600201710-201908

2 parts on this diagram · 1 diagram in section
