Toyota COROLLA AXIO/FIELDER — PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

58387PLATE, REAR FLOOR FINISH

main58387-12100-C0iNKE165,NRE160,NZE16#..4D201204-201710

BLACK,TRIM2#

58387ECLIP(FOR REAR FLOOR FINISH PLATE)

main90467-08186-C0iNKE165,NRE160,NZE16#..4D201204-201610

BLACK

sub90467-08186¥120

main90467-08186-C3iNKE165,NRE16#,NZE16#..4D201610-201710

BLACK

sub90467-08186¥120

58460HSTRIKER ASSY, LUGGAGE HOLD BELT

58676CPAD, REAR FLOOR SILENCER

main58579-12010iNZE16#..4D..CVT..(G,X)¥2,920201204-201305

main58579-12010iNZE16#..4D..CVT..(G,X)¥2,920201204-201305

main58579-12011iNKE165,NZE16#..4D..CVT..(G,HBDG,X)¥1,220201305-201710

main58579-12011iNKE165,NZE16#..4D..CVT..(G,HBDG,X)¥1,220201305-201710

64205ACOVER SUB-ASSY, ROOM PARTITION

main64275-12010-C0iNZE16#..LXL201204-201503

BLACK,TRIM2#

64270ACLIP(FOR ROOM PARTITION BOARD SETTING)

main90467-08186-C0iNZE16#..LXL201204-201503

BLACK

sub90467-08186¥120

64271BCLIP(FOR ROOM PARTITION BOARD)

main90467-10161iNZE16#..LXL¥90201204-201503

64271EPANEL, ROOM PARTITION

main64241-12060iNKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X)¥1,430201204-201908

64271GBOARD, ROOM PARTITION, RH

main64271-12270-C0iNZE16#..LXL201204-201503

BLACK,TRIM2#

64272BBOARD, ROOM PARTITION, LH

main64272-12130-C0iNZE16#..LXL201204-201503

BLACK,TRIM2#

64287ACOVER, ROOM PARTITION, NO.4 RH

main64287-12020-C0iNZE16#..LXL201204-201503

BLACK,TRIM2#

64288ACOVER, ROOM PARTITION, NO.4 LH

main64288-12020-C0iNZE16#..LXL201204-201503

BLACK,TRIM2#

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-12A30-C1iNKE165,NRE160,NZE16#..4D201204-201710

BLACK,TRIM2#

64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-06020-C0iNKE165,NRE160,NZE16#..4D201204-201710

BLACK,TRIM2#

sub90467-06020¥190

64334APAD, PACKAGE TRAY TRIM

main64334-12380iNKE165,NRE160,NZE16#..4D¥660201204-201710

64374ASUPPORT, PACKAGE TRAY TRIM

main64374-12040iNKE165,NRE160,NZE16#..4D¥1,290201204-201710

64712COVER, LUGGAGE COMPARTMENT TRIM, RH

main64712-12010-C0iNRE160,NZE16#..4D201204-201305

BLACK,TRIM2#

sub64712-12011¥7,500

sub58579-12011¥1,220

main64712-12011-C0iNKE165,NRE160,NZE16#..4D201305-201710

BLACK,TRIM2#

64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)

main90467-08186-C0iNKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X)201204-201610

BLACK

sub90467-08186¥120

main90467-08186-C3iNKE165,NRE16#,NZE16#..4D201610-201710

BLACK

sub90467-08186¥120

64713COVER, LUGGAGE COMPARTMENT TRIM, LH

main64713-12010-C0iNRE160,NZE16#..4D201204-201305

BLACK,TRIM2#

sub64713-12011¥7,500

sub58579-12011¥1,220

main64713-12011-C0iNKE165,NRE160,NZE16#..4D201305-201710

BLACK,TRIM2#

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-12140-C0iNRE160,NZE16#..4D..(G,X)201204-201710

BLACK,TRIM2#

sub64717-12140¥8,100

main64717-12150-C0iNKE165..4D201307-201710

BLACK,TRIM2#

64718BCOVER, LUGGAGE TRIM SERVICE HOLE

main64718-33010iNKE165,NRE160,NZE16#..4D¥770201204-201710

64719ACOVER, LUGGAGE COMPARTMENT DOOR

main64719-12180-C0iNKE165,NRE160,NZE16#..4D201204-201405

BLACK,TRIM2#

sub64719-12181¥4,370

main64719-12181-C0iNKE165,NRE160,NZE16#..4D201405-201710

BLACK,TRIM2#

64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)

main90467-08186-C0iNKE165,NRE160,NZE16#..4D201204-201610

BLACK

sub90467-08186¥120

main90467-08186-C3iNKE165,NRE16#,NZE16#..4D201610-201710

BLACK

sub90467-08186¥120

64721CCLIP(LUGGAGE COMPARTMENT)

main90467-08186-C0iNKE165,NRE160,NZE16#..4D201204-201610

BLACK

sub90467-08186¥120

main90467-08186-C3iNKE165,NRE16#,NZE16#..4D201610-201710

BLACK

sub90467-08186¥120

64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER

main64723-12020-C0iNZE16#..LXL201204-201503

BLACK,TRIM2#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-26010-C1iNKE165,NRE160,NZE16#..4D201204-202101

BLACK,TRIM2#

main64726-26010-C2iNKE165,NRE161,NZE16#..4D202101

BLACK,TRIM2#

64726DCLIP, LUGGAGE TRIM, REAR

main64726-12050iNKE165,NRE160,NZE16#..4D¥210201204-201710

64727APAD, LUGGAGE COMPARTMENT TRIM, INNER

main64727-12050iNRE160,NZE161..4D¥5,700201204-201212

sub64727-12051¥3,480

main64727-12051iNKE165,NRE160,NZE161..4D¥3,480201301-201710

main64727-12060iNZE164..4D¥4,910201204-201212

sub64727-12061¥3,090

main64727-12061iNZE164..4D¥3,090201301-201710

64771COVER, SPARE WHEEL

main64771-12310-C0iNKE165,NRE160,NZE16#..4D201204-201710

BLACK,TRIM2#

64771HCLIP(FOR SPARE WHEEL COVER)

main58707-50060iNKE165,NRE16#,NZE16#..4D¥160201204-201710

64772CPAD, SPARE WHEEL COVER

64776ASPACER, TOOL BAG CASE

main64765-12050iNKE165,NRE160,NZE16#..4D..(G,HBD,HBDG,X)¥640201204-201710

64777GCUSHION, SPARE WHEEL

main64777-12130iNKE165,NRE160,NZE161..4D¥10,900201204-201503

main64777-12140iNZE164..4D¥6,200201204-201710

main64777-12150iNKE165,NRE16#,NZE161..4D¥6,800201503-201710

64779ASTOPPER, SPARE WHEEL COVER

main64779-52020iNKE165,NRE160,NZE16#..4D¥200201204-201710

7104

8502

9011906840

main90119-06840¥60

9011908C59

main90119-08C59¥80

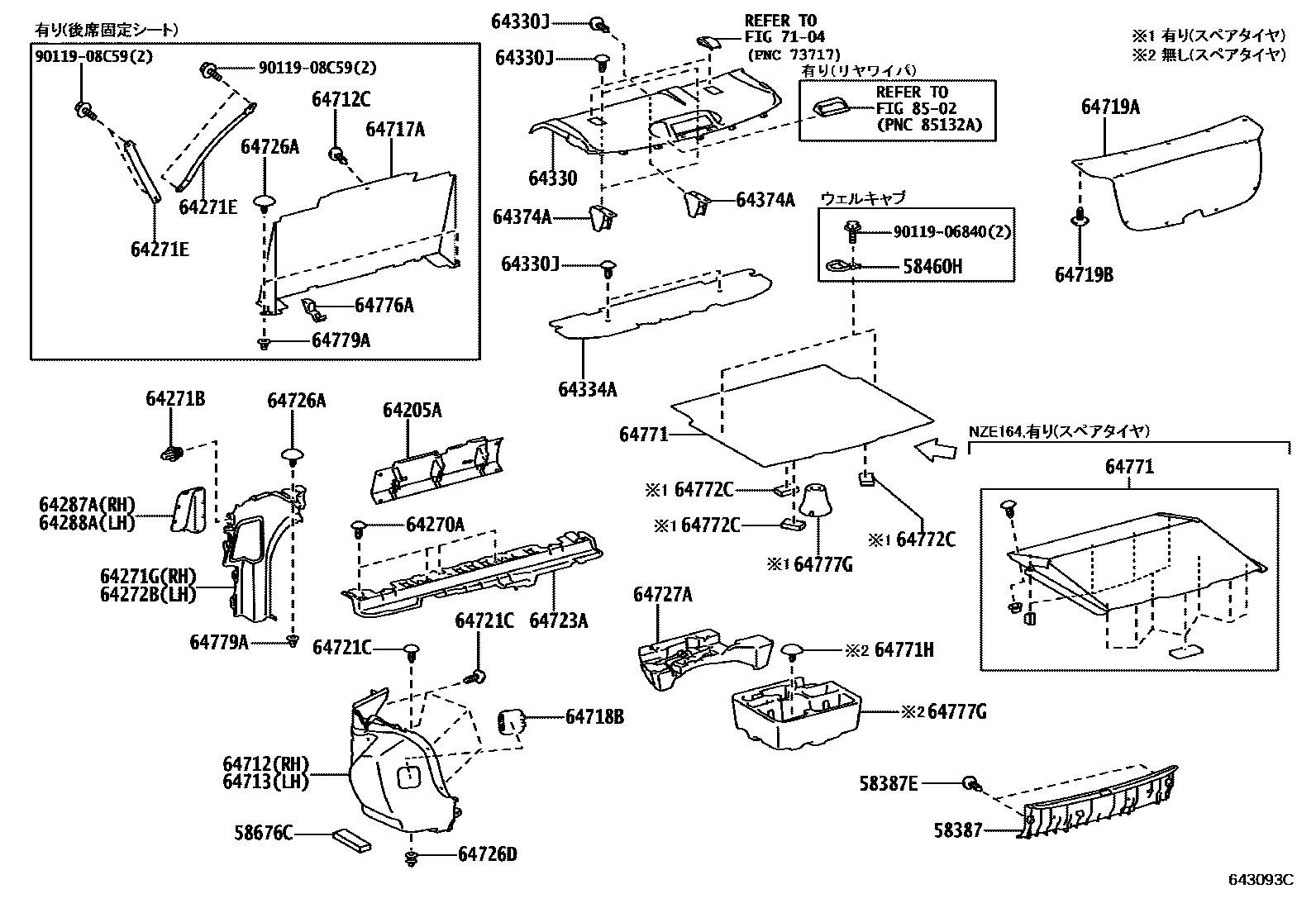

38 parts on this diagram · 1 diagram in section
