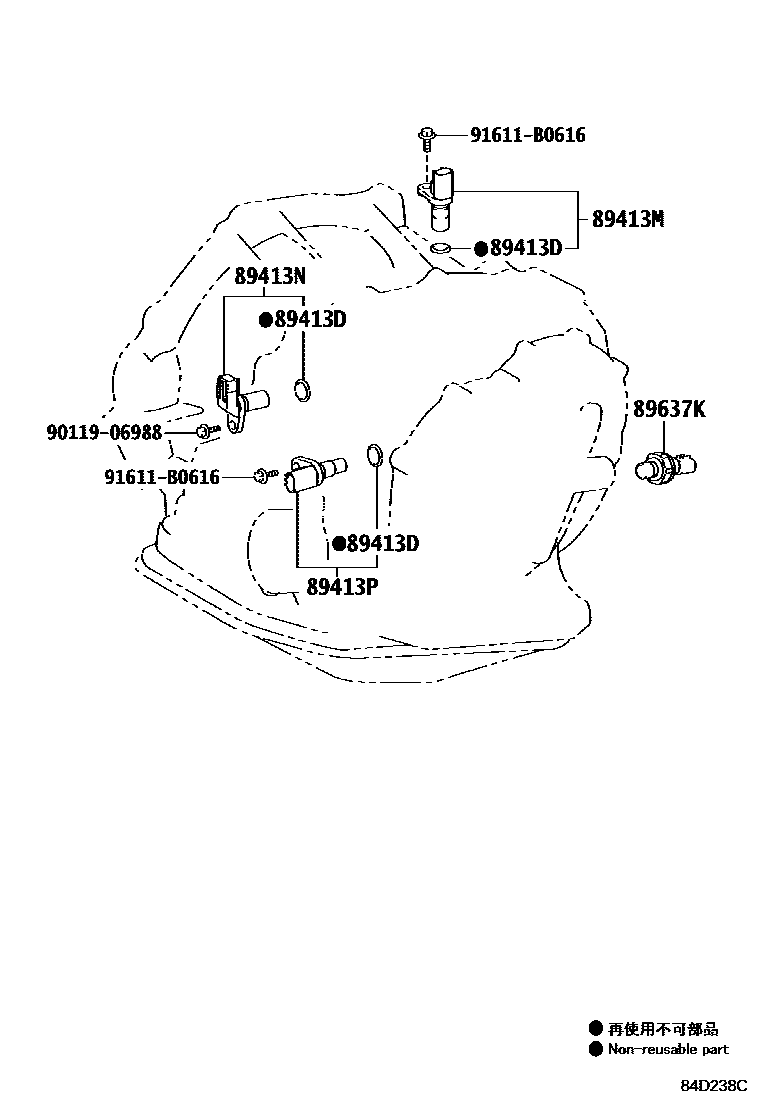

Toyota COROLLA AXIO/FIELDER — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1K411 0002 1K312 0004 1K310F, K311

89413DRING, O(FOR TRANSMISSION REVOLUTION SENSOR)

main90301-11008iNRE160,NZE164,ZRE162¥160201204-201710

89413MSENSOR, TRANSMISSION REVOLUTION, (NOUT)

main89413-12020iNRE161,NZE16#,ZRE162..CVT¥4,210201204-201710

main89413-28010iNRE160¥5,300201204-201807

sub89413-28011¥4,010

main89413-28011iNRE160¥4,010201808-201908

89413NSENSOR, TRANSMISSION REVOLUTION, (NT)

main89413-12020iNRE160,NZE164,ZRE162¥4,210201204-201710

89413PSENSOR, TRANSMISSION REVOLUTION, (NIN)

main89413-60020iNRE160,NZE16#,ZRE162..CVT¥5,300201204-201807

sub89413-60021¥4,010

main89413-60021iNRE16#,NZE16#,ZRE162..CVT¥4,010201808

89637KSENSOR, OIL PRESSURE

main89637-63010iNRE160,NZE16#,ZRE162..CVT¥5,700201204-201710

9011906988

main90119-06988¥60

91611B0616

main91611-B0616¥110

7 parts on this diagram · 3 diagrams in section
