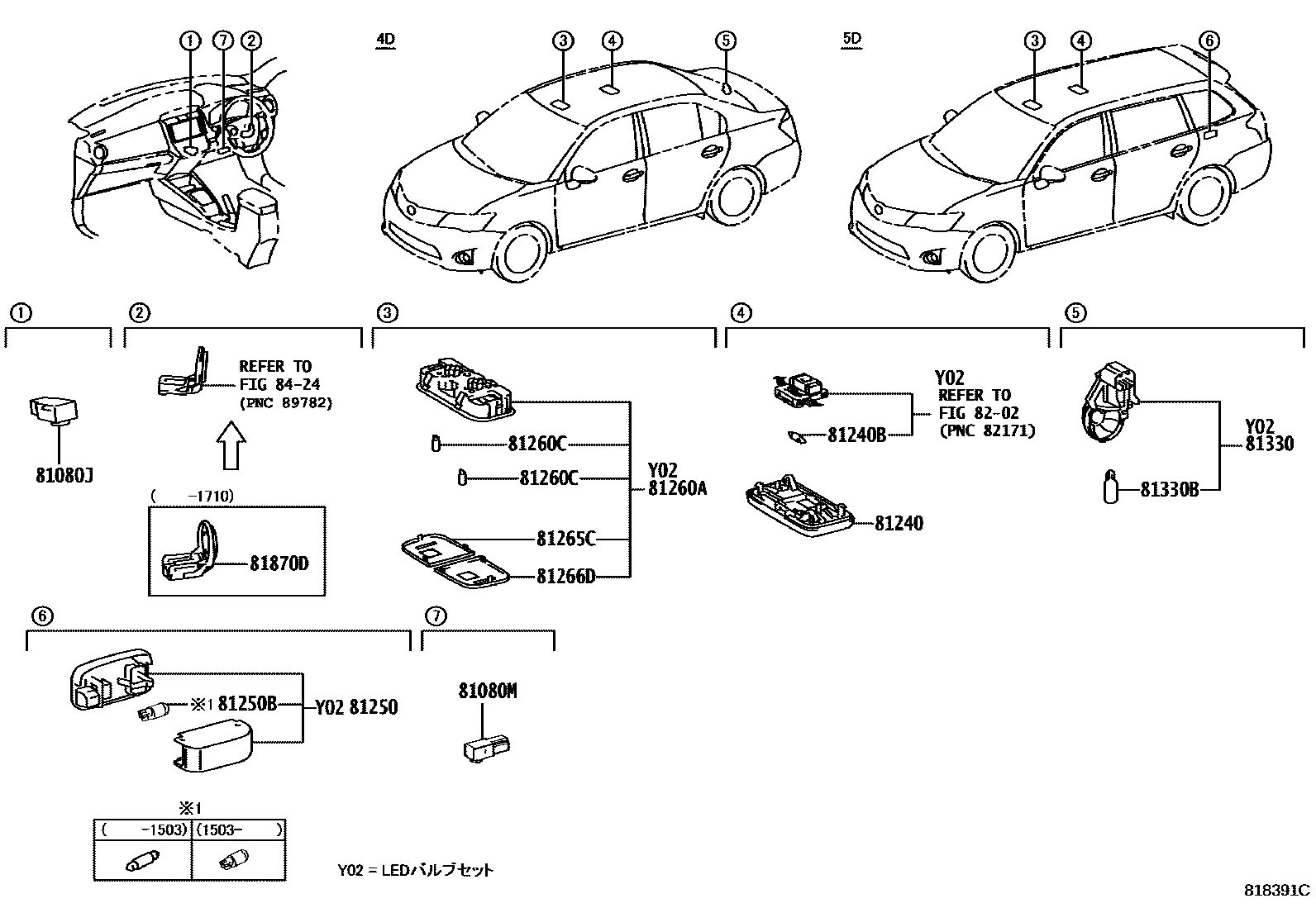

Toyota COROLLA AXIO/FIELDER — INTERIOR LAMP

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-12100iNKE165,NRE16#,NZE16#,ZRE162¥920201708-201909

main81080-42030iNKE165,NRE16#,NZE16#,ZRE162¥1,150201503-201707

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

81240LAMP ASSY, ROOM, NO.1

main81240-35020-B0iNKE165,NRE161,NZE164..5D..(G,HBDG)201204-201908

LT.GRAY,TRIM2#

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-35020-B0iNKE165,NRE161,NZE164..4D..(G,HBDG)201503-201710

LT.GRAY,TRIM22

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-35020-B0iNZE161;NKE165,NRE16#,NZE164..HBD,X201710-201908

LT.GRAY,TRIM22,25

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-35020-B0iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)201504-201908

LT.GRAY,TRIM20,21

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-35020-B0iNKE165,NRE161,NZE164..5D..(G,HBDG)201504-201710

LT.GRAY,TRIM22,27

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-35020-C0iNKE165,NRE161,NZE164..4D..(G,HBDG)201504-201610

BLACK,TRIM23,24,25

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-35020-C0iNKE165,NRE161,NZE164..4D..(G,HBDG)201504-201610

BLACK,TRIM26

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-35020-C0iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)201503-201504

BLACK,TRIM23,24

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-35020-C1iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)201610-201908

BLACK,TRIM23,24,25

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-35020-C1iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)201710-201908

BLACK,TRIM23,24

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-35020-C1iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)201610-201710

BLACK,TRIM26

sub81240-35020¥2,850

sub81240-42020¥2,230

main81240-42020-B0iNKE165,NRE161,NZE16#201909

LT.GRAY,TRIM2#

81240BBULB, ROOM LAMP, NO.1

main90981-14011iNKE165,NRE160,NZE16#,ZRE162¥180201204-201710

�P�Q�u�@�W�v

81250LAMP ASSY, ROOM, NO.2

main81250-48010iNKE165,NZE16#,ZRE162..5D¥2,420201204-201503

main81330-58010iNKE165,NRE161,NZE16#..5D..(HBD,X)¥460201503-201908

81250BBULB, ROOM LAMP, NO.2

main99132-12050iNKE165,NRE161,NZE16#..5D..(HBD,X)¥110201503-201908

�P�Q�u�@�T�v

main99132-13050iNKE165,NZE16#,ZRE162..5D¥150201204-201503

�P�Q�u�@�T�v

81260ALAMP ASSY, MAP

main81260-52020-B0iNKE165,NRE161,NZE164..4D..(G,HBDG)201503-201710

LT.GRAY,TRIM22

sub81260-52020¥7,800

main81260-52020-B0iNKE165,NRE161,NZE164..4D..(G,HBDG)201204-201710

LT.GRAY,TRIM2#

sub81260-52020¥7,800

main81260-52020-B0iNKE165,NRE161,NZE164..5D..(G,HBDG)201504-201710

LT.GRAY,TRIM22,27

sub81260-52020¥7,800

main81260-52020-B0iNKE165,NRE161,NZE164..5D..(G,HBDG)201504-201908

LT.GRAY,TRIM20,21

sub81260-52020¥7,800

main81260-52020-B0iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)201710-201908

LT.GRAY,TRIM22,25

sub81260-52020¥7,800

main81260-52020-C0iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)201504-201908

BLACK,TRIM23,24,25

sub81260-52020¥7,800

main81260-52020-C0iNKE165,NRE161,NZE164..4D..(G,HBDG)201504-201710

BLACK,TRIM26

sub81260-52020¥7,800

main81260-52020-C0iNKE165,NRE161,NZE164,ZRE162..5D..(G,HBDG,S)201503-201908

BLACK,TRIM23,24

sub81260-52020¥7,800

81260CBULB(FOR MAP LAMP)

main90981-11062iNKE165,NRE160,NZE16#,ZRE162¥340201204-201710

�P�Q�u�@�W�v

81265CLENS, MAP LAMP, NO.1

main81265-52020iNKE165,NRE160,NZE16#,ZRE162¥190201204-201710

81266DLENS, MAP LAMP, NO.2

main81266-52020iNKE165,NRE16#,NZE16#,ZRE162¥190201204-201710

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81330-12020iNKE165,NRE161,NZE16#..4D..(HBD,X)¥840201204-201908

81330BBULB, LUGGAGE COMPARTMENT LAMP

main90981-11020iNRE161,NZE16#..4D..G;NKE165,NRE160..4D..(HBDG,X)¥170201204-201908

�P�Q�u�@�R�D�W�v

81870DLAMP ASSY, KEY CYLINDER

main81870-12040iNKE165,NRE160,NZE16#..G,HBD,HBDG,X¥3,170201204-201503

main81870-12040iNKE165,NRE161,NZE164..G,HBDG¥3,170201503-201710

�X�}�[�g�G���g���|�L��

8202

8424

15 parts on this diagram · 1 diagram in section
