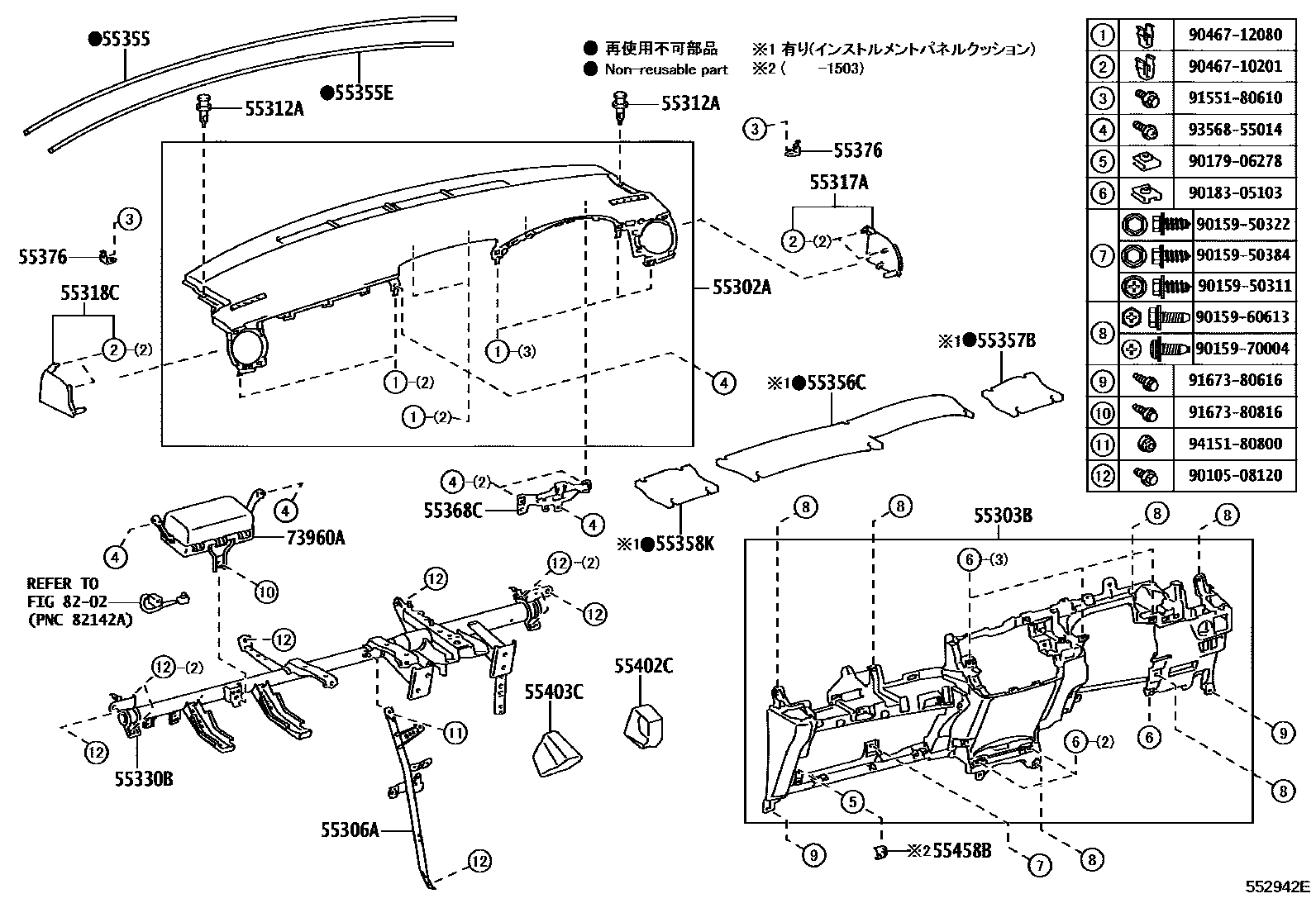

Toyota COROLLA AXIO/FIELDER — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-12250-C0iNKE165,NRE16#,NZE16#,ZRE162201204-201710

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-12470-C0iNKE165,NRE160,NZE16#,ZRE162201204-201503

BLACK,TRIM2#

main55303-12490-C0iNKE165,NRE16#,NZE16#,ZRE162201503-201908

BLACK,TRIM2#

sub55303-12491¥15,900

main55303-12491-C0iNKE165,NRE161,NZE16#201909

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-12520iNKE165,NRE16#,NZE16#,ZRE162¥1,810201204-201908

55312ACLIP, INSTRUMENT PANEL

main52161-16010iNKE165,NRE16#,NZE16#,ZRE162¥120201204-201710

55317APANEL, INSTRUMENT SIDE, RH

main55317-12140-C0iNKE165,NRE160,NZE16#,ZRE162201204-201710

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-12150-C0iNKE165,NRE160,NZE16#,ZRE162201204-201710

BLACK,TRIM2#

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-12480iNRE160,NZE16#,ZRE162¥21,900201204-201305

sub55330-12550¥13,800

main55330-12550iNKE165,NRE160,NZE16#,ZRE162¥13,800201305-201908

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-12090iNKE165,NRE160,NZE16#,ZRE162¥1,000201204-201504

main55355-12240iNKE165,NRE16#,NZE16#,ZRE162¥610201504-201710

55355ECUSHION, INSTRUMENT PANEL

main55355-12190iNKE165,NRE160,NZE16#,ZRE162¥810201204-201503

sub55355-12250¥610

main55355-12190iNKE165,NRE16#,NZE16#,ZRE162¥810201503-201710

sub55355-12250¥610

main55355-12250iNKE165,NRE16#,NZE16#,ZRE162¥610201710

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-12130iNKE165,NZE16#,ZRE162..G,HBDG,LXL,S¥1,580201204-201503

main55356-12130iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S¥1,580201503-201908

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55358-12120iNKE165,NZE16#,ZRE162..G,HBDG,LXL,S¥700201204-201503

main55358-12120iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S¥700201503-201908

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-12120iNKE165,NZE16#,ZRE162..G,HBDG,LXL,S¥700201204-201503

main55358-12120iNKE165,NRE161,NZE16#,ZRE162..G,HBDG,S¥700201503-201908

55368CBRACKET, METER MOUNTING

main55368-12110iNKE165,NRE160,NZE16#,ZRE162¥1,410201204-202208

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-12160iNKE165,NRE160,NZE16#,ZRE162¥200201204-201710

55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-12060iNKE165,NRE160,NZE16#,ZRE162¥1,460201204-201908

55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-12100iNKE165,NRE160,NZE16#,ZRE162¥1,960201204-201908

55458BCOVER, INSTRUMENT, LWR

main55458-12050-C0iNKE165,NRE160,NZE16#,ZRE162201204-201503

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-12190iNKE165,NRE160,NZE16#,ZRE162¥99,800201204-201804

sub73960-12460¥99,800

main73960-12191iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥75,600201807-201908

main73960-12460iNKE165,NRE16#,NZE16#,ZRE162¥99,800201804-201806

sub73960-12191¥75,600

8202

9010508120

main90105-08120¥90

9015950311

main90159-50311¥70

9015950322

main90159-50322¥70

9015950384

main90159-50384¥60

9015960613

main90159-60613¥60

9015970004

main90159-70004¥60

9017906278

main90179-06278¥100

9018305103

main90183-05103¥90

9046710201

main90467-10201¥80

9046712080

main90467-12080¥60

9155180610

main91551-80610¥60

9167380616

main91673-80616¥60

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

34 parts on this diagram · 4 diagrams in section
