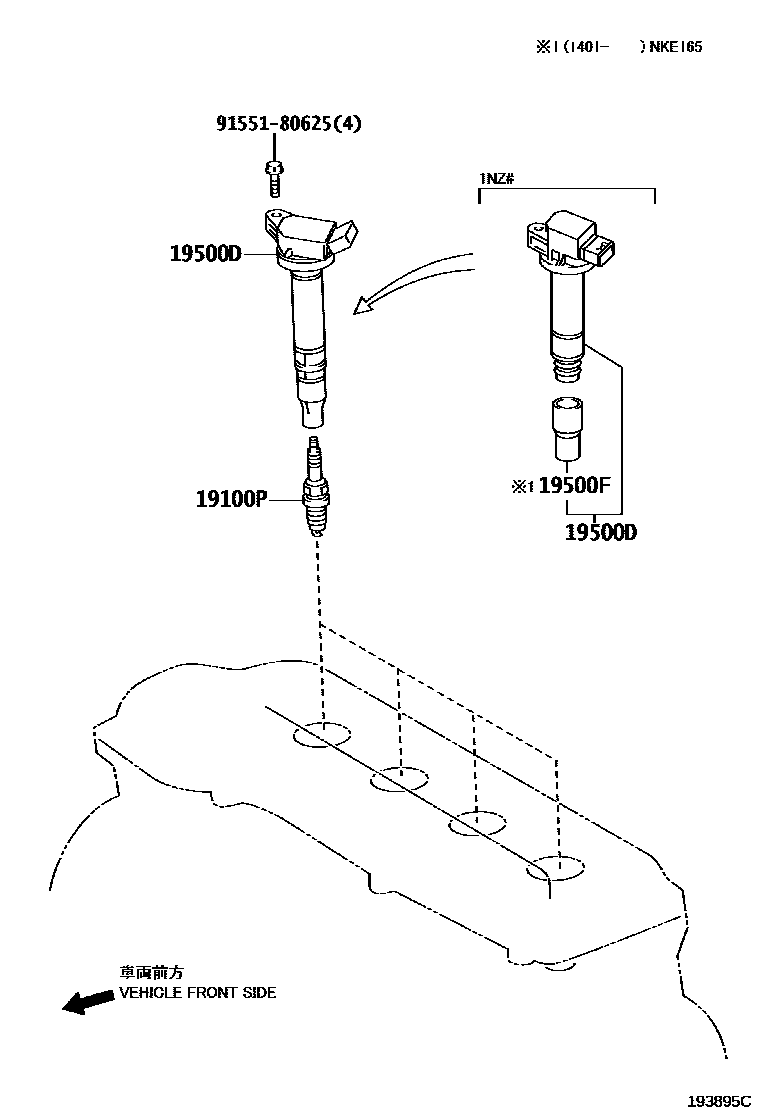

Toyota COROLLA AXIO/FIELDER — IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01243i1NZFE..NZE16#..G¥2,300201204-201908

main90919-01253i1NRFE..NRE160¥2,000201204-201504

sub90919-01275¥2,000

main90919-01272i1NZFXE..NKE165¥2,400201307-201401

main90919-01275i1NRFE..NRE160¥2,000201311-201908

main90919-01280i2NRFKE..NRE161¥2,300201503-201703

sub90919-01289¥2,300

main90919-01284i1NZFXE..NKE165¥2,400201401-201908

main90919-01289i2NRFKE..NRE161..G¥2,300201704-201908

19500COIL ASSY, IGNITION

main90919-02258i2ZRFAE..ZRE162¥7,500201204-201908

19500DCOIL, IGNITION, NO.1

main90919-02257i1NRFE..NRE160;2NRFKE..NRE161..G¥7,500201204-201908

main90919-02260i1NZFE..NZE16#¥7,500201204-201908

main90919-02265i1NZFXE..NKE165..HBDG¥7,500201307-201908

19500FCAP, PLUG

main90919-11009i1NZFXE..NKE165¥550201401-201908

9155180625

main91551-80625¥60

5 parts on this diagram · 2 diagrams in section
