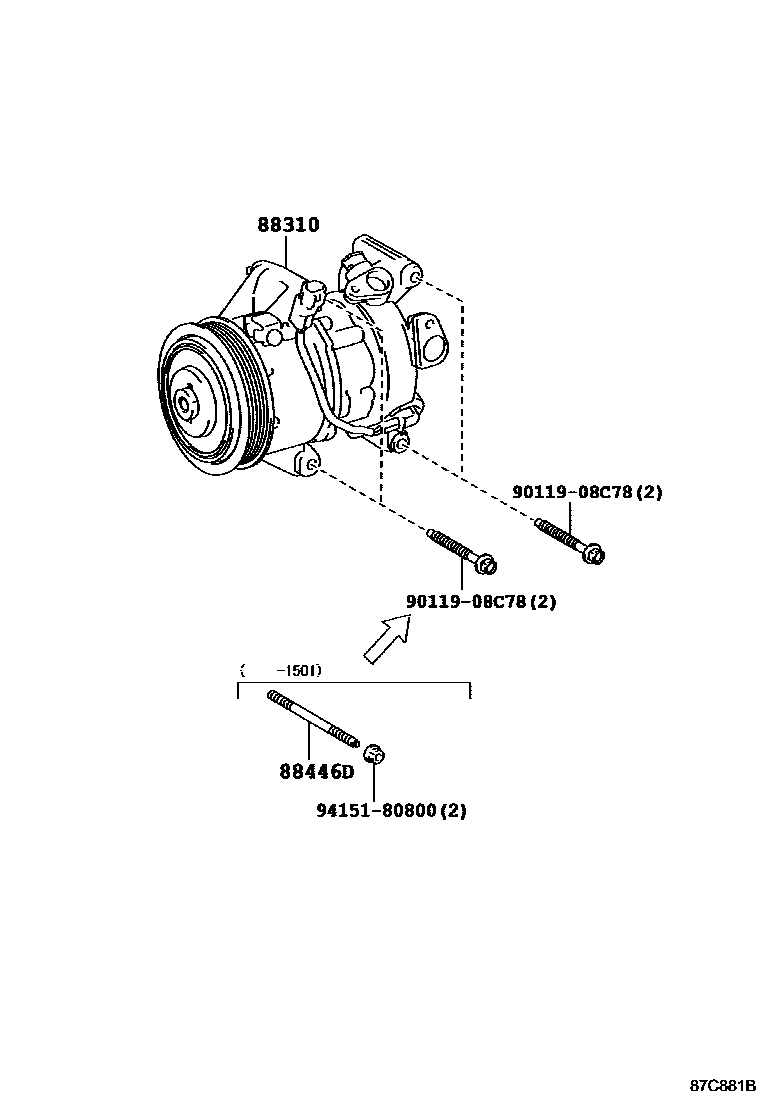

Toyota COROLLA AXIO/FIELDER — HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88310COMPRESSOR ASSY, W/PULLEY

main88310-12A90iNZE16#201204-201503

main88310-12A90iNZE16#201503-201710

main88310-12A90iNZE16#..G201710-201908

main88310-12A90iNZE16#..X201710

main88310-12B00iNRE160;NRE161..G201710-201908

main88310-12B00iNRE160201204-201503

main88310-12B00iNRE16#201503-201710

main88310-12B00iNRE161..X201710

main88310-1A840iZRE162201204-201502

sub88310-1A841

main88310-1A841iZRE162201710-201908

main88310-1A841iZRE162201503-201710

88446DBOLT, COOLER

main88446-42030iNRE160,NZE16#¥0201204-201501

main88446-42030iZRE162¥0201204-201503

main88446-42030iZRE162¥0201503-201710

main88446-42030iZRE162¥0201710-201908

9011908C78

main90119-08C78¥0

9415180800

main94151-80800¥80

4 parts on this diagram · 3 diagrams in section
