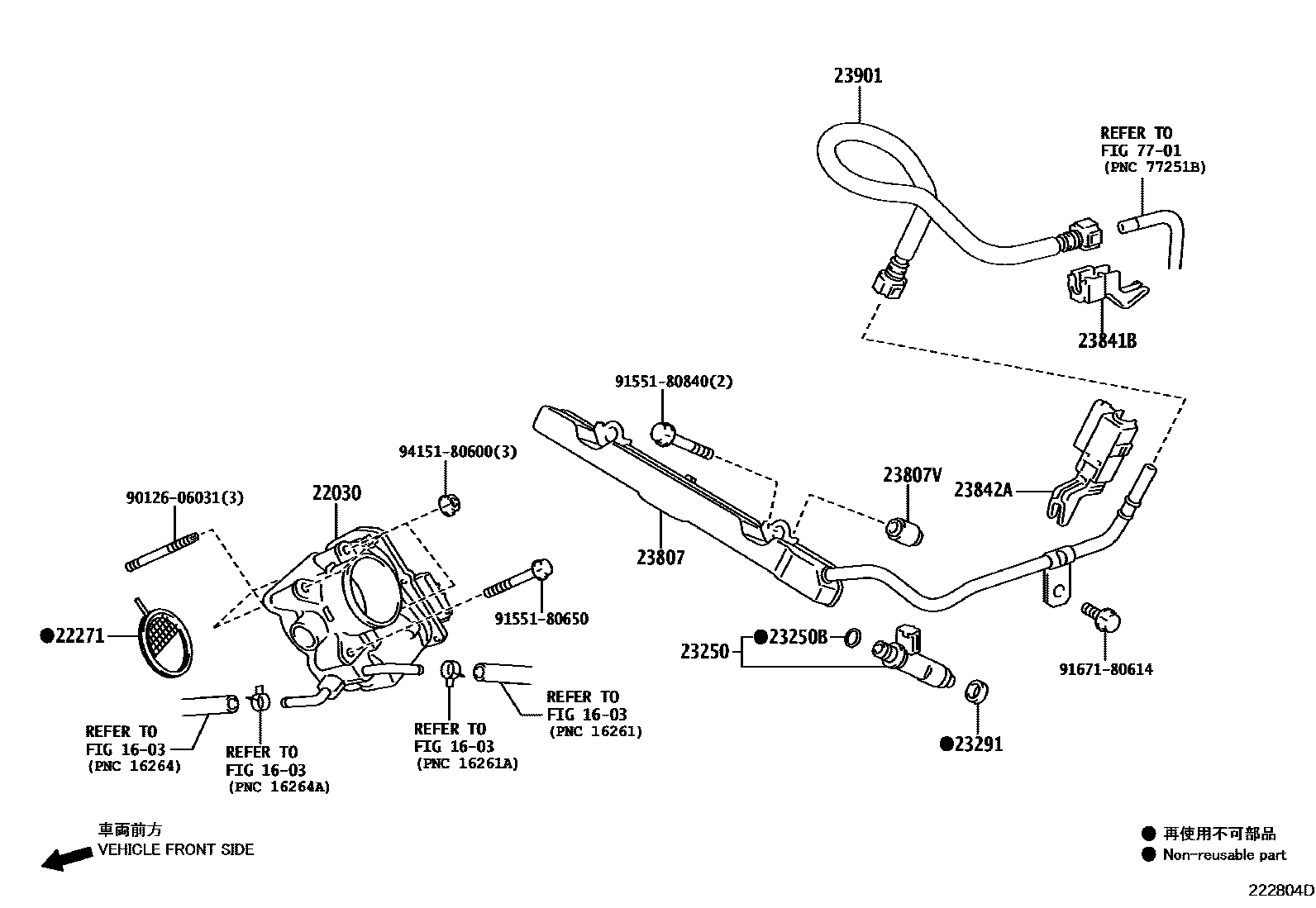

Toyota COROLLA AXIO/FIELDER — FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-21030i1NZFE..NZE164;1NZFE..NZE161..5F¥52,700201204-201908

main22030-21040i1NZFE..NZE161..CVT¥52,700201206-201503

main22030-47010i1NRFE..NRE160¥52,700201204-201908

main22030-47040i1NZFXE..NKE165¥52,700201307-201908

main22030-47060i2NRFKE..NRE161¥68,100201503-201908

main22030-47090i2NRFKE..NRE161..G¥52,700201503-201908

22271GASKET, THROTTLE BODY

main22271-21060i1NZFE..NZE16#¥340201204-201908

main22271-21070i1NZFXE..NKE165..HBDG¥340201307-201908

main22271-47010i1NRFE..NRE160¥0201204-201908

main22271-47050i2NRFKE..NRE161¥340201503-201908

main22271-75031i2ZRFAE..ZRE162¥250201204-201908

23250INJECTOR ASSY, FUEL

main23209-21040i1NZFE..NZE16#¥14,000201204-202304

sub23209-21120¥12,700

main23209-21091i1NZFXE..NKE165¥13,900201307-201710

main23209-21100i1NZFE..NZE161..CVT¥13,900201206-202304

sub23209-21130¥12,600

main23209-21110i1NZFXE..NKE165¥12,600201710

main23209-21120i1NZFE..NZE164;1NZFE..NZE161..5F¥12,700202305

main23209-21130i1NZFE..NZE161..CVT¥12,600202305

main23209-39235i2ZRFAE..ZRE162¥13,900201204-201908

main23209-49226i1NRFE..NRE160¥12,600201204-201908

main23209-49245i2NRFKE..NRE161¥12,600201503-201710

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i1NZFXE..NKE165..HBD¥140201204-201908

main90301-07037i1NZFXE..NKE165¥140201908

main90301-C0072i1NZFXE..NKE165201908

23291INSULATOR, INJECTOR VIBRATION

main23291-23010i1N#,2NRFKE..NKE165,NRE16#,NZE16#¥240201204-201908

main23291-23010i1NZ#,2NRFKE..NKE165,NRE161,NZE16#..HBD,X¥240201710

main23291-28020i2ZRFAE..ZRE162¥310201204-201908

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-21030i1NZFE..NZE16#¥13,000201204-201410

sub23807-21031¥8,100

main23807-21031i1NZFE..NZE16#..X¥8,100201411-201908

main23814-37051i2ZRFAE..ZRE162¥8,900201204-201908

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main23891-21010i1NZ#..NKE165,NZE16#..G,HBDG¥240201204-201908

main23891-37010i2ZRFAE..ZRE162¥240201204-201908

main23891-47010i1NRFE..NRE160¥480201204-201302

sub23891-47030¥300

main23891-47030i1NRFE..NRE160;2NRFKE..NRE161..G¥300201302-201908

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-21050i1NZFXE..NKE165..HBD¥220201204-201908

main23841-37070i2ZRFAE..ZRE162¥340201204-201908

sub23841-37140¥280

main23841-37090i2NRFKE..NRE161..G¥1,080201503-201908

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-21040i1NZFE..NZE16#¥1,460201204-201210

main23841-21050i2NRFKE..NRE161..X¥220201503-201908

main23841-37090i1NZFE..NZE16#..G¥1,080201211-201908

main23842-22020i2ZRFAE..ZRE162¥550201204-201908

23901TUBE SUB-ASSY, FUEL

main23901-21110i1NZFE..NZE16#¥4,300201204-202208

main23901-21220i1NZFXE..NKE165¥3,980201307-202208

main23901-21230i1NZFXE..NKE165¥3,650202208

main23901-21270i1NZFE..NZE16#¥3,650202208

main23901-37210i2ZRFAE..ZRE162¥4,840201204-201908

main23901-47060i1NRFE..NRE160¥3,380201204-201908

main23901-47080i2NRFKE..NRE161¥3,780201503-202207

main23901-47081i2NRFKE..NRE161¥3,440202208

7701

9012606031

main90126-06031¥90

9155180650

main91551-80650¥80

9155180840

main91551-80840¥120

9167180614

main91671-80614¥60

9415180600

main94151-80600¥60

17 parts on this diagram · 6 diagrams in section
