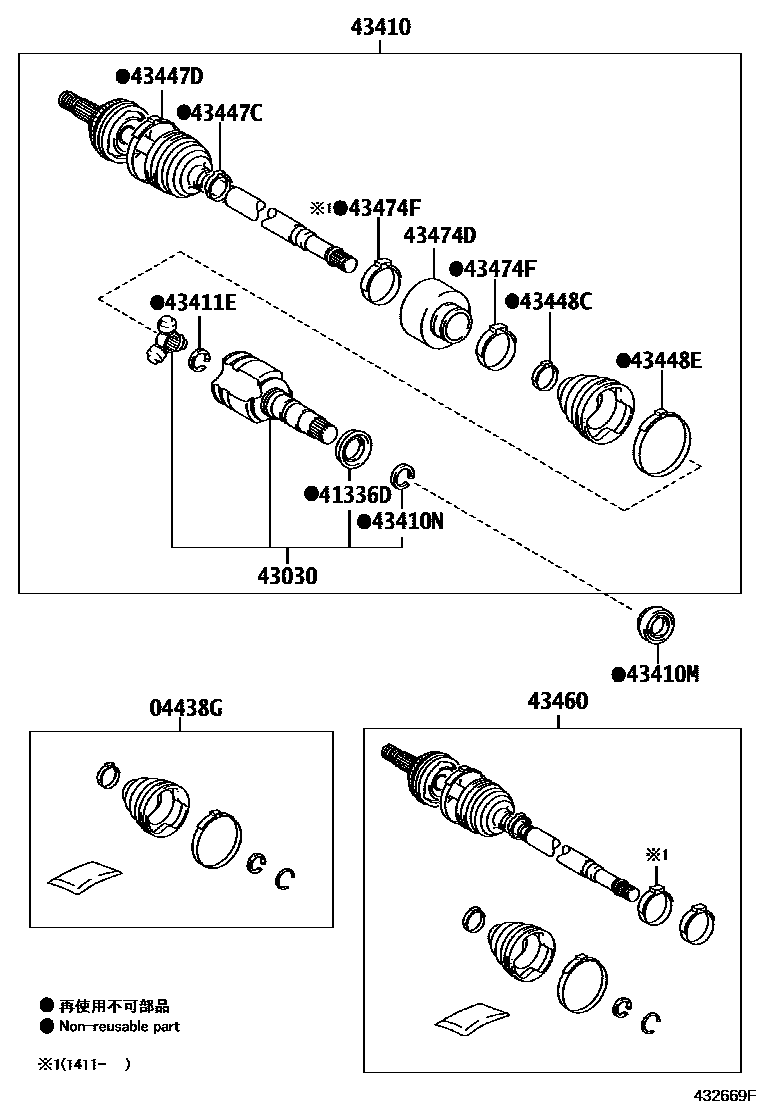

Toyota COROLLA AXIO/FIELDER — FRONT DRIVE SHAFT

0001 1��� 0002 1��� 0003 1��� 0004 1��� 0005 1��� 0006 1��� 0007 1��� 0008 1��� 0009 1��� 0010 1��� 0011 1��� 0012 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-12410iNZE164¥6,700201503-201509

sub04437-12411¥4,150

main04437-12410iNZE164¥6,700201204-201503

sub04437-12411¥4,150

main04437-12411iNZE164¥4,150201509-201710

main04437-12411iNZE164¥4,150201710

main04437-47021iNKE165¥5,500201307-201503

sub04437-52460¥4,150

main04437-47021iNKE165¥5,500201710-201904

sub04437-52460¥4,150

main04437-47021iNKE165¥5,500201503-201710

sub04437-52460¥4,150

main04437-52191iNRE16#,NZE161¥5,500201503-201710

main04437-52191iNRE160,NZE161¥5,500201204-201503

main04437-52191iNRE16#,NZE161¥5,500201710-201904

main04437-52192iNRE16#,NZE161¥4,150201904

main04437-52460iNKE165¥4,150201904

main04438-12A00iZRE162¥6,700201503-201509

sub04438-12A01¥4,150

main04438-12A00iZRE162¥6,700201204-201503

sub04438-12A01¥4,150

main04438-12A01iZRE162¥4,150201710-201908

main04438-12A01iZRE162¥4,150201509-201710

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12010iNRE161,NZE161..X¥130201710

main41336-12010iNRE16#,NZE161¥130201503-201710

main41336-12010iNRE160;NRE161,NZE161..G¥130201710-201908

main41336-12010iNRE160,NZE161¥130201204-201503

main41336-12060iNKE165,ZRE162..HBDG,S¥200201710-201908

main41336-12060iNKE165..HBD¥200201710

main41336-12060iNKE165,ZRE162¥200201503-201710

main41336-12060iNKE165,ZRE162¥200201204-201503

main41336-52020iNZE164..G¥250201710-201908

main41336-52020iNZE164¥250201204-201503

main41336-52020iNZE164¥250201503-201710

main41336-52020iNZE164..X¥250201710

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-12131iNZE164¥20,600201204-201503

main43030-12131iNZE164¥20,600201710

main43030-12131iNZE164¥20,600201503-201710

main43030-52070iNKE165¥11,900201710

main43030-52070iNKE165¥11,900201307-201503

main43030-52070iNKE165¥11,900201503-201710

main43040-12120iZRE162¥16,600201503-201710

main43040-12120iZRE162¥16,600201204-201503

main43040-12120iZRE162¥16,600201710-201908

main43403-10011iNRE16#,NZE161¥19,500201710

sub43403-0W031¥16,200

main43403-10011iNRE16#,NZE161¥19,500201503-201710

sub43403-0W031¥16,200

main43403-10011iNRE160,NZE161¥19,500201204-201503

sub43403-0W031¥16,200

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-12B40iZRE162¥68,900201710-201908

main43410-12B40iZRE162¥68,900201503-201710

main43410-12B40iZRE162¥68,900201204-201503

main43410-52210iNZE161..5F¥68,900201710-201904

sub43410-52211¥52,100

main43410-52210iNZE161..5F¥68,900201204-201503

sub43410-52211¥52,100

main43410-52210iNZE161¥68,900201503-201710

sub43410-52211¥52,100

main43410-52211iNZE161..5F¥52,100201904

main43410-52260iNZE164¥52,100201204-201503

main43410-52260iNZE164¥52,100201503-201710

main43410-52260iNZE164¥52,100201710

main43410-52270iNZE161..CVT¥68,900201206-201503

sub43410-52271¥52,100

main43410-52270iNRE161¥68,900201503-201710

sub43410-52271¥52,100

main43410-52270iNRE161,NZE161..CVT¥68,900201710-201904

sub43410-52271¥52,100

main43410-52271iNRE161,NZE161..CVT¥52,100201904

main43410-52320iNRE160¥68,900201710-201904

sub43410-52321¥52,100

main43410-52320iNRE160¥68,900201204-201503

sub43410-52321¥52,100

main43410-52320iNRE160¥68,900201503-201710

sub43410-52321¥52,100

main43410-52321iNRE160¥52,100201904-201908

main43410-52350iNKE165¥68,900201503-201710

sub43410-52351¥52,100

main43410-52350iNKE165¥68,900201710-201904

sub43410-52351¥52,100

main43410-52350iNKE165¥68,900201307-201503

sub43410-52351¥52,100

main43410-52351iNKE165¥52,100201904

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-34035iNZE161..CVT¥400201206-201308

sub90311-34046¥400

main90311-34038iNRE160¥350201204-201406

sub90311-34047¥350

main90311-34039iNZE161..5F¥350201204-201503

main90311-34039iNZE161..5F¥350201710-201904

main90311-34039iNZE161¥350201503-201710

main90311-34046iNRE161¥400201503-201710

sub90311-34050¥400

main90311-34046iNZE161..CVT¥400201308-201503

sub90311-34050¥400

main90311-34046iNRE161,NZE161..CVT¥400201710-201808

sub90311-34050¥400

main90311-34047iNRE160¥350201503-201710

main90311-34047iNRE160¥350201407-201503

main90311-34047iNRE160¥350201710-201908

main90311-34050iNRE161,NZE161..CVT¥400201808

main90311-34053iNZE161..5F¥350201904

main90311-35055iZRE162¥400201503-201504

sub90311-35069¥400

main90311-35055iZRE162¥400201204-201503

sub90311-35069¥400

main90311-35065iNKE165¥270201307-201503

main90311-35065iNKE165¥270201503-201710

main90311-35065iNKE165¥270201710

main90311-35069iZRE162¥400201505-201710

main90311-35069iZRE162¥400201710-201808

main90311-35076iZRE162¥400201808-201908

main90316-28003iNZE164¥450201204-201503

main90316-28003iNZE164¥450201710

main90316-28003iNZE164¥450201503-201710

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90520-33008iNZE164¥110201503-201710

main90520-33008iNZE164¥110201204-201503

main90520-33008iNZE164..G¥110201710-201908

main90520-33008iNZE164..X¥110201710

main90521-26004iNRE16#,NZE161¥100201503-201710

main90521-26004iNRE160;NRE161,NZE161..G¥100201710-201908

main90521-26004iNRE161,NZE161..X¥100201710

main90521-26004iNRE160,NZE161¥100201204-201503

main90521-27005iNKE165..HBD¥110201710

main90521-27005iNKE165,ZRE162¥110201204-201503

main90521-27005iNKE165,ZRE162..HBDG,S¥110201710-201908

main90521-27005iNKE165,ZRE162¥110201503-201710

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iNZE164,ZRE162¥40201204-201503

main43425-12070iNZE164,ZRE162¥40201710

main43425-12070iNZE164,ZRE162¥40201503-201710

main90520-22001iNKE165,NRE160,NZE161¥110201204-201503

sub90520-22029¥90

main90520-22001iNKE165,NRE16#,NZE161¥110201503-201710

sub90520-22029¥90

main90520-22001iNKE165,NRE16#,NZE161¥110201710-201904

sub90520-22029¥90

main90520-22029iNKE165,NRE16#,NZE161¥90201904

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZRE162¥220201204-201503

main42345-12230iZRE162¥220201503-201710

main42345-12230iZRE162¥220201710-201908

main42345-52260iNKE165,NRE161,NZE16#..HBD,X¥220201710

main42345-52260iNRE161,NZE16#..G;NKE165,NRE160..HBDG,X¥220201710-201908

main42345-52260iNKE165,NRE16#,NZE16#¥220201503-201710

main42345-52260iNKE165,NRE160,NZE16#¥220201204-201503

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZRE162¥340201503-201710

main42345-12240iZRE162¥340201204-201503

main42345-12240iZRE162¥340201710-201908

main42345-52250iNKE165,NRE160,NZE16#¥330201204-201503

main42345-52250iNKE165,NRE16#,NZE16#¥330201503-201710

main42345-52250iNRE161,NZE16#..G;NKE165,NRE160..HBDG,X¥330201710-201908

main42345-52250iNKE165,NRE161,NZE16#..HBD,X¥330201710

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iNZE164,ZRE162¥220201503-201710

main42345-12230iNZE164,ZRE162¥220201204-201503

main42345-12230iNZE164,ZRE162¥220201710

main90949-01078iNKE165,NRE16#,NZE161¥80201503-201710

main90949-01078iNKE165,NRE16#,NZE161¥80201710

main90949-01078iNKE165,NRE160,NZE161¥80201204-201503

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iNZE164,ZRE162¥330201204-201503

main42345-12180iNZE164,ZRE162¥330201503-201710

main42345-12180iNZE164,ZRE162¥330201710

main90949-01146iNKE165,NRE160,NZE161¥350201204-201503

main90949-01146iNKE165,NRE16#,NZE161¥350201503-201710

main90949-01146iNKE165,NRE16#,NZE161¥350201710

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-59416iNZE161..5F¥55,800201204-201407

sub43460-59666¥49,900

main43460-59666iNZE161..5F¥49,900201408-201503

sub43460-59669¥37,800

main43460-59666iNZE161¥49,900201503-201710

sub43460-59669¥37,800

main43460-59666iNZE161..5F¥49,900201710-201904

sub43460-59669¥37,800

main43460-59666iNZE161..CVT¥49,900201206-201408

sub43460-59669¥37,800

main43460-59667iNRE161¥43,300201503-201710

sub43460-59668¥32,800

main43460-59667iNZE161..CVT¥43,300201408-201503

sub43460-59668¥32,800

main43460-59667iNRE161,NZE161..CVT¥43,300201710-201904

sub43460-59668¥32,800

main43460-59668iNRE161,NZE161..CVT¥32,800201904

main43460-59669iNZE161..5F¥37,800201904

main43460-59785iNRE160¥58,000201204-201408

sub43460-59786¥48,300

main43460-59786iNRE160¥48,300201408-201503

sub43460-59787¥36,500

main43460-59786iNRE160¥48,300201710-201904

sub43460-59787¥36,500

main43460-59786iNRE160¥48,300201503-201710

sub43460-59787¥36,500

main43460-59787iNRE160¥36,500201904-201908

main43460-59805iNKE165¥66,000201307-201407

sub43460-59806¥55,000

main43460-59806iNKE165¥55,000201503-201710

sub43460-59895¥36,500

main43460-59806iNKE165¥55,000201710-201904

sub43460-59895¥36,500

main43460-59806iNKE165¥55,000201408-201503

sub43460-59895¥36,500

main43460-59895iNKE165¥36,500201904

main43460-80154iZRE162¥64,500201204-201411

sub43460-80164¥64,500

main43460-80164iZRE162¥64,500201503-201509

sub43460-80175¥53,700

main43460-80164iZRE162¥64,500201411-201503

sub43460-80175¥53,700

main43460-80175iZRE162¥53,700201509-201710

main43460-80175iZRE162¥53,700201710-201908

main43470-59666iNZE164¥48,500201204-201408

sub43470-59667¥48,500

main43470-59667iNZE164¥48,500201408-201503

sub43470-59668¥30,500

main43470-59667iNZE164¥48,500201503-201509

sub43470-59668¥30,500

main43470-59668iNZE164¥30,500201710

main43470-59668iNZE164¥30,500201509-201710

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-12120iZRE162¥7,500201204-201410

sub43474-12210¥4,640

main43474-12160iNZE164¥2,480201204-201503

main43474-12160iNZE164¥2,480201710

main43474-12160iNZE164¥2,480201503-201710

main43474-12210iZRE162¥4,640201710-201908

main43474-12210iZRE162¥4,640201411-201503

main43474-12210iZRE162¥4,640201503-201710

main43474-52030iNKE165;NZE161..5F¥4,640201710

�m�n�D�P

main43474-52030iNKE165,NZE161¥4,640201503-201710

�m�n�D�P

main43474-52030iNKE165;NZE161..5F¥4,640201204-201503

main43474-52030iNZE161..CVT¥4,640201206-201503

�m�n�D�P

main43474-52080iNRE161,NZE161..CVT¥2,650201710

�m�n�D�Q

main43474-52080iNZE161..CVT¥2,650201206-201503

�m�n�D�Q

main43474-52080iNRE161¥2,650201503-201710

�m�n�D�Q

main43474-52090iNRE160¥3,940201204-201410

sub43474-52110¥1,520

main43474-52110iNRE160¥1,520201710-201908

main43474-52110iNRE160¥1,520201503-201710

main43474-52110iNRE160¥1,520201411-201503

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12090iNZE161..5F;NKE165,NRE160,NZE164,ZRE162¥140201710

main42345-14010iNZE161..CVT¥700201206-201408

main42345-14010iNRE160¥700201204-201411

main42345-14010iNZE161..5F;NKE165,NZE164¥700201408-201503

main42345-14010iNRE160¥700201411-201503

main42345-14010iNKE165,NRE160,NZE16#¥700201503-201710

main42345-14010iNZE161..5F;NKE165,NZE164¥700201204-201408

14 parts on this diagram · 12 diagrams in section
