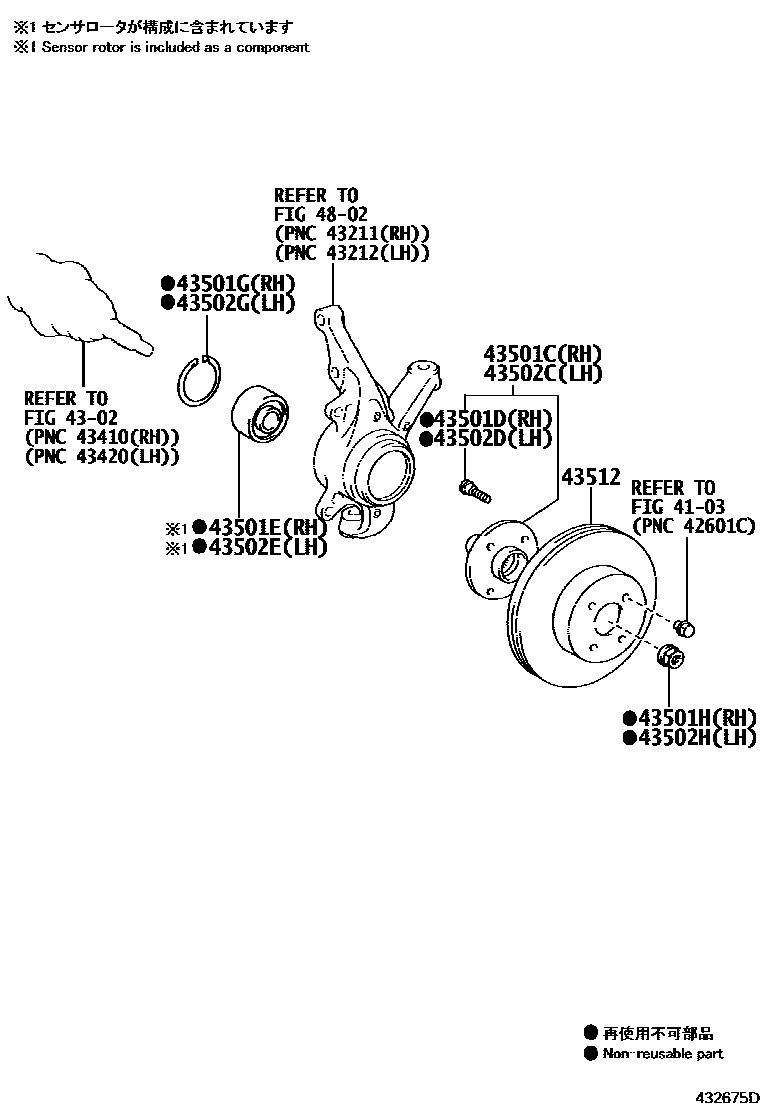

Toyota COROLLA AXIO/FIELDER — FRONT AXLE HUB

4103

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43502-52030iNKE165,NRE160,NZE16#,ZRE162¥5,800201204-201503

main43502-52030iNKE165,NRE16#,NZE16#,ZRE162¥5,800201503-201710

main43502-52030iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥5,800201710-201908

main43502-52030iNKE165,NRE161,NZE16#..HBD,X¥5,800201710

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iNKE165,NRE160,NZE16#,ZRE162¥240201204-201503

main90942-02049iNKE165,NRE16#,NZE16#,ZRE162¥240201503-201710

main90942-02049iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥240201710-201908

main90942-02049iNKE165,NRE161,NZE16#..HBD,X¥240201710

43501EBEARING (FOR FRONT AXLE HUB RH)

main90363-40079iNKE165,NRE160,NZE16#,ZRE162¥7,100201204-201503

sub90369-40009¥7,100

main90363-40079iNKE165,NRE16#,NZE16#,ZRE162¥7,100201503-201612

sub90369-40009¥7,100

main90369-40009iNKE165,NRE16#,NZE16#,ZRE162¥7,100201701-201710

main90369-40009iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥7,100201710-201908

main90369-40009iNKE165,NRE161,NZE16#..HBD,X¥7,100201710

43501GRING, HOLE SNAP (FOR FRONT AXLE HUB RH)

main90521-80003iNKE165,NRE160,NZE16#,ZRE162¥200201204-201503

main90521-80003iNKE165,NRE16#,NZE16#,ZRE162¥200201503-201710

main90521-80003iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥200201710-201908

main90521-80003iNKE165,NRE161,NZE16#..HBD,X¥200201710

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iNKE165,NRE160,NZE16#,ZRE162¥220201204-201503

main90177-22001iNKE165,NRE16#,NZE16#,ZRE162¥220201503-201710

main90177-22001iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥220201710-201908

main90177-22001iNKE165,NRE161,NZE16#..HBD,X¥220201710

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43502-52030iNKE165,NRE160,NZE16#,ZRE162¥5,800201204-201503

main43502-52030iNKE165,NRE16#,NZE16#,ZRE162¥5,800201503-201710

main43502-52030iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥5,800201710-201908

main43502-52030iNKE165,NRE161,NZE16#..HBD,X¥5,800201710

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iNKE165,NRE160,NZE16#,ZRE162¥240201204-201503

main90942-02049iNKE165,NRE16#,NZE16#,ZRE162¥240201503-201710

main90942-02049iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥240201710-201908

main90942-02049iNKE165,NRE161,NZE16#..HBD,X¥240201710

43502EBEARING (FOR FRONT AXLE HUB LH)

main90363-40079iNKE165,NRE16#,NZE16#,ZRE162¥7,100201503-201612

sub90369-40009¥7,100

main90363-40079iNKE165,NRE160,NZE16#,ZRE162¥7,100201204-201503

sub90369-40009¥7,100

main90369-40009iNKE165,NRE16#,NZE16#,ZRE162¥7,100201701-201710

main90369-40009iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥7,100201710-201908

main90369-40009iNKE165,NRE161,NZE16#..HBD,X¥7,100201710

43502GRING, HOLE SNAP (FOR FRONT AXLE HUB LH)

main90521-80003iNKE165,NRE160,NZE16#,ZRE162¥200201204-201503

main90521-80003iNKE165,NRE16#,NZE16#,ZRE162¥200201503-201710

main90521-80003iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥200201710-201908

main90521-80003iNKE165,NRE161,NZE16#..HBD,X¥200201710

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iNKE165,NRE16#,NZE16#,ZRE162¥220201503-201710

main90177-22001iNKE165,NRE160,NZE16#,ZRE162¥220201204-201503

main90177-22001iNRE161,NZE16#..G;NKE165,NRE160,ZRE162..HBDG,S,X¥220201710-201908

main90177-22001iNKE165,NRE161,NZE16#..HBD,X¥220201710

43512DISC, FRONT

main43512-52120iNZE161..4D;NKE165,NRE160¥8,000201204-201503

main43512-52120iNKE165,NRE160;NRE161,NZE161..4D¥8,000201503-201710

main43512-52120iNRE161,NZE161..4D..G;NKE165,NRE160..HBDG,X¥8,000201710-201908

main43512-52120iNKE165..HBD;NRE161,NZE161..4D..X¥8,000201710

main43512-52130iNZE164..X;NRE161,NZE161..5D..X¥8,600201710

main43512-52130iNZE164;NZE161,ZRE162..5D¥8,600201204-201503

main43512-52130iNZE164,ZRE162..G,S;NRE161,NZE161..5D..G¥8,600201710-201908

main43512-52130iNZE164;NRE161,NZE161,ZRE162..5D¥8,600201503-201710

4802

14 parts on this diagram · 1 diagram in section
